Digital radiography has been widely applied in numerous fields. With technological advancement, digital radiography (DR) has become increasingly popular, and x ray flat panel detectors have been extensively used in clinical settings. Flat panel detectors are mainly categorized into direct flat panel detector and indirect flat panel detector types. The widespread adoption of flat-panel digital radiography systems is largely attributed to their wide dynamic range and the separation of image acquisition and processing, which enables excellent local contrast even in regions with significant tissue density differences. Therefore, it is essential to evaluate and compare the performance of these systems in terms of resolution, noise, and other parameters.
This paper focuses on comparing and analyzing the characteristics of the two types of detectors in core principles, image resolution (MTF), noise (WS), signal-to-noise ratio (NEQ), and other performances. It clarifies the performance differences between different digital radiography systems and their impacts on clinical application effects, providing scientific and intuitive selection references for purchasers.
1. Core Principles
1.1 Direct Flat Panel Detector
• Core principle: The direct flat panel detector realizes direct conversion from X-rays to electrical signals. The photoconductive layer (e.g., amorphous selenium (α-Se)) converts X-ray energy into electronic charges, which are guided to the collection pixel capacitors under the action of an electric field. The core materials are an amorphous selenium flat panel detectors layer plus a TFT array.
1.2 Indirect Flat Panel Detectors
• Core principle: The indirect flat panel detector converts X-rays into visible light first, and then into electrical signals (two-step conversion). The scintillator layer converts the energy of X-ray photons into visible light photons, which are then detected by pixel photodiodes and stored as electronic charges in capacitors associated with each pixel.
2. Image Resolution (MTF)
2.1 Definition and impact of image resolution
Image resolution of an x ray flat panel detector represents the device’s ability to distinguish and identify tiny internal structures of the object being examined. In simple terms, it indicates how fine lines, small lesions, and subtle tissue textures can be visualized. Common indicators include:
• Pixel Pitch: Smaller value means higher resolution
• Matrix size (e.g., 1536×1536, 2944×2944)
• Spatial resolution (LP/mm, line pairs per millimeter): Higher value means finer distinguishable details.
• Impact: Image resolution directly affects the detectability of small lesions, which is clinically critical. Low resolution may lead to missed diagnosis of small fractures, tiny nodules, and microcalcifications; high resolution enables earlier and more accurate detection of early and minute lesions. It also affects image magnification: high-resolution images remain clear during partial magnification and post-processing, while low-resolution images become pixelated and blurry when magnified, unsuitable for precise diagnosis.
2.2 Comparative Experimental Study on Image Resolution

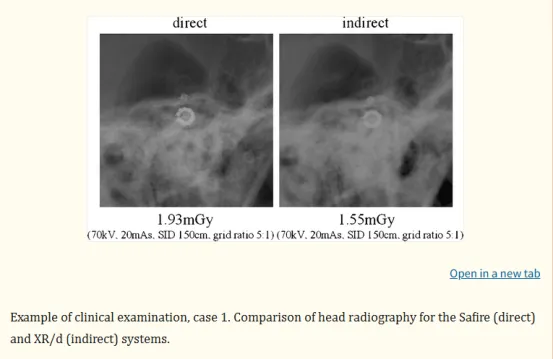

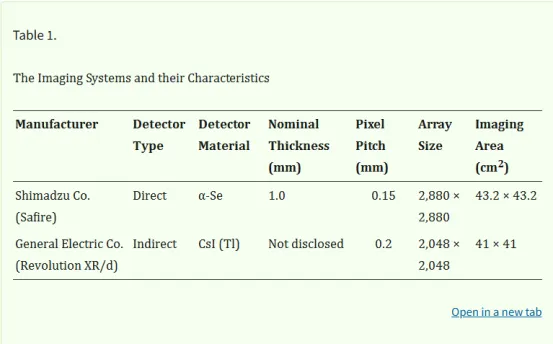

Understanding the image resolution comparison between direct flat panel detector and indirect flat panel detector is crucial. In a comparative literature study, GE Revolution XR/d (indirect detector) and Shimadzu Safire (direct detector) were compared using the edge method to measure the system MTF.
The results show that the MTF value (resolution characteristic) of the direct flat panel detector system is significantly higher than that of the indirect detector system. For the Safire detector (direct detector), charge collection dispersion is minimal, so its resolution is expected to be higher than that of indirect detection systems where image blurring is caused by light scattering. The resolution response of the XR/d system is similar to that of the CR system. In cranial radiography, the resolution of the direct flat panel detector is also superior to that of the indirect flat panel detector.
3. Noise (WS)
3.1 Definition and Impact of Noise
Noise of an x ray flat panel detector can be understood as "unwanted signals" or "interference points" on the image that do not originate from real human structures, like graininess or snow-like artifacts in photographs—caused by the detector itself and circuits rather than lesions or tissues. Main noise sources:
• Dark current noise of the detector material
• Circuit noise of electronic components
• Quantum noise from X-ray photon statistics
• Interference from readout circuits and A/D conversion
High noise results in grainy, rough images where fine textures, trabeculae, and soft tissue edges are obscured. For DR, bedside machines, and pediatric radiography, low-dose imaging is often required. Higher noise leads to more significant image quality degradation at low doses, even rendering images undiagnostic. This is why high-noise detectors typically require higher radiation doses to produce clean images.
3.2 Comparative Experimental Study on Noise

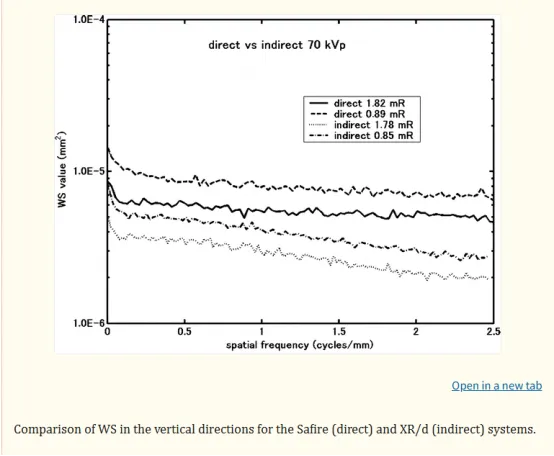

Figure 5 compares the WS values of the Safire (direct) and XR/d (indirect) systems in the vertical direction. The WS value of the Safire direct flat panel detector is relatively flat, similar to white noise. The WS value of the XR/d system decreases significantly at high spatial frequencies.
It can be concluded that under the same dose and conditions, indirect flat panel detector (CsI/GOS + a-Si) has lower noise and cleaner images; direct flat panel detector (a-Se) has higher noise and more obvious graininess.
Direct flat panel detector:
• Relatively high noise level
• Noise rises rapidly at low doses, causing grainy and rough images
• More dose-sensitive, requiring higher doses for clean images
Indirect flat panel detector:
• Lower and more stable noise
• Maintains good signal-to-noise ratio at low doses
• More friendly for general radiography, bedside, and pediatric applications
Notably, although the direct type has higher noise, it has no optical scattering, so high spatial frequency (fine structures) is better preserved, edges are sharper, and microcalcifications and trabeculae are displayed more clearly.
4. Signal-to-Noise Ratio (NEQ) Comparison
4.1 Definition and Impact of Signal-to-Noise Ratio
Signal-to-noise ratio = effective signal ÷ noise, representing the ratio between "useful diagnostic information" and "useless interference noise" collected by the detector:
• High SNR: Strong useful signal, low noise, clean and clear images
• Low SNR: High noise proportion, grainy and rough images
Higher SNR means images are "cleaner and easier to interpret".
• Impact: SNR represents the "cleanliness" of the image and the reliability of diagnostic information. Higher SNR brings clearer images, better low-dose performance, more accurate lesion display, and higher clinical diagnostic value; lower SNR leads to rougher images, greater diagnostic difficulty, and often higher patient radiation doses.
4.2 Comparative Experimental Study on Signal-to-Noise Ratio

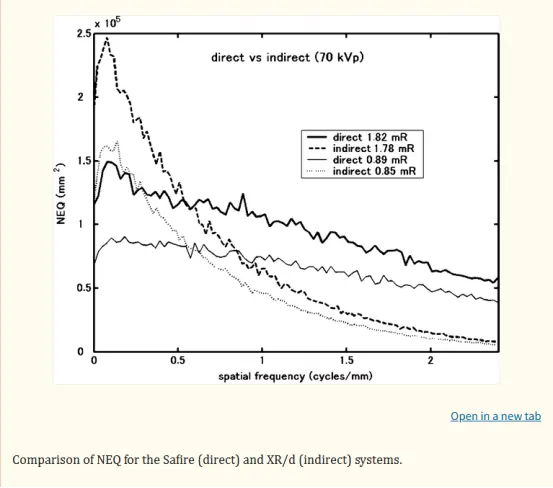

Figure 6 compares the NEQ values of the direct and indirect detector systems in a literature experiment.
The figure shows that the SNR of the indirect flat panel detector is higher than that of the direct flat panel detector at low spatial frequencies. As spatial frequency increases, the SNR of the indirect detector drops rapidly and even becomes lower than that of the direct detector.
SNR is not necessarily better when higher; it should be comprehensively matched with spatial resolution, clinical body parts, and usage scenarios to maximize diagnostic value.
5. How to Choose Direct / Indirect Flat Panel Detector for Different Clinical Scenarios
Based on image resolution, noise level, and SNR performance, the selection logic between direct flat panel detector and indirect flat panel detector is clear for different application scenarios, focusing on trade-offs between detail precision and image purity.
From the above analysis, the direct flat panel detector has higher MTF and excellent NEQ in the frequency range above approximately 2.0 mm⁻¹, making it particularly effective for radiography applications requiring high-detail and high-contrast imaging of fine anatomical structures (e.g., trabecular structure imaging in limb bones). In contrast, the indirect flat panel detector has extremely high NEQ below 2.0 mm⁻¹, making it attractive for radiography applications where low-contrast anatomy visibility is noise-limited (e.g., pulmonary nodule imaging in chest radiography).
Direct flat panel detector is preferred for scenarios requiring high detail, such as mammography, orthopedic precise diagnosis, dental radiography, and observation of microcalcifications and fine fractures. These scenarios demand extremely high image resolution and high spatial frequency transmission, where clear display of fine structures directly affects early lesion detection rate. Despite relatively higher noise and lower SNR, its extreme resolution advantage outweighs noise impacts and meets core needs of high-precision specialized diagnosis.
Indirect flat panel detector is more suitable for routine chest radiography, bedside radiography, emergency radiography, physical examination screening, pediatric radiography, and whole-body general radiography. These applications rely more on low noise, high SNR, and low-dose imaging rather than strict resolution requirements. With lower noise and higher SNR, indirect detectors produce clean, stable, and interpretable images at lower radiation doses, ensuring diagnostic reliability, improving examination comfort and efficiency, and better meeting broad clinical needs.
In short, choose direct flat panel detector for high-detail and high-resolution needs; choose indirect flat panel detector for clean images, low-dose, and general-purpose use. The balance among resolution, noise, and SNR ultimately determines the matching between the detector and application scenarios.
6. ArKang Recommendations
• Detector Technology: Amorphous Silicon (a-Si)
• Scintillator: Directly Deposited Cesium Iodide
• Effective Area: 14 × 17 inches
• Pixel Pitch: 150 micrometers
• Battery Autonomy: 8 hours
• WiFi Connectivity: Dual-band (2.4G & 5G, IEEE802.11 a/b/g/n/ac)
• Trigger Mode: AED (Optional) / Software
• Internal Image Storage: 200 full-size images
• Weight: 3.3 kg
The directly deposited CsI scintillator improves light conversion efficiency, producing clear, low-noise images while minimizing patient radiation exposure—critical for sensitive clinical applications.
This ISO 4090-compliant x ray flat panel detector integrates seamlessly into standard grid systems, enabling cost-effective upgrades of existing DR systems.
• Compatible Flat Panel Detector: Venu1748V
• Detector Technology: Amorphous Silicon
• Active Area of Flat Panel Detector: 17×48 inch
• Spatial Resolution: 3.6 lp/mm
• Pixel Pitch: 139 μm
• Frame Dimensions: 1102 × 680 × 1511 mm
• Cross Arm Adjustable Range: 350–1350 mm
• Cross Arm Adjustable Distance: 200 mm
• Armrest Adjustment: 100 mm (up/down) + 90° rotation
• Frame Rotation: 90° upwards / to the right
• Data Interface: 1G Ethernet
The AKX-F1748 features a mobile wheel base for excellent portability, allowing easy movement between examination rooms.
The system supports both upright and supine imaging positions to meet different patient needs.
The 1G Ethernet interface of the flat panel detector enables fast and reliable data transmission, while the system’s high-sensitivity technology ensures seamless synchronization with existing X-ray equipment.
7. Conclusion
Image resolution, noise, and SNR are core indicators determining clinical applicability in x ray flat panel detector selection. Direct flat panel detector and indirect flat panel detector have different strengths in these three performances and can be selected differentially according to clinical needs.
The direct flat panel detector (amorphous selenium flat panel detectors) features high spatial resolution and excellent high-frequency transmission, clearly displaying microcalcifications, trabeculae, fine cracks, and other structures with sharp edges and high detail restoration. However, it has high inherent noise and low SNR, with more obvious graininess at low doses, making it more suitable for specialized diagnoses requiring ultra-high detail resolution such as mammography and orthopedics.
The indirect flat panel detector performs better in noise control and SNR, producing uniform and smooth images with strong low-dose imaging stability and high-quality images at lower radiation doses. Although its spatial resolution is slightly lower than that of direct detectors, its performance suffices for routine clinical needs, making it more suitable for general scenarios such as chest radiography, bedside radiography, emergency, physical examination, and pediatrics.
In summary, choose direct flat panel detector for ultimate detail and high resolution; choose indirect flat panel detector for low noise, high SNR, and broad clinical applicability. Neither is absolutely superior; they represent reasonable trade-offs between resolution and SNR based on clinical scenarios.
