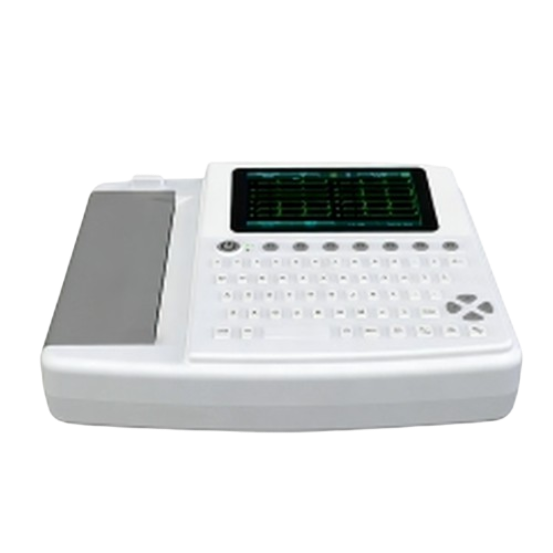

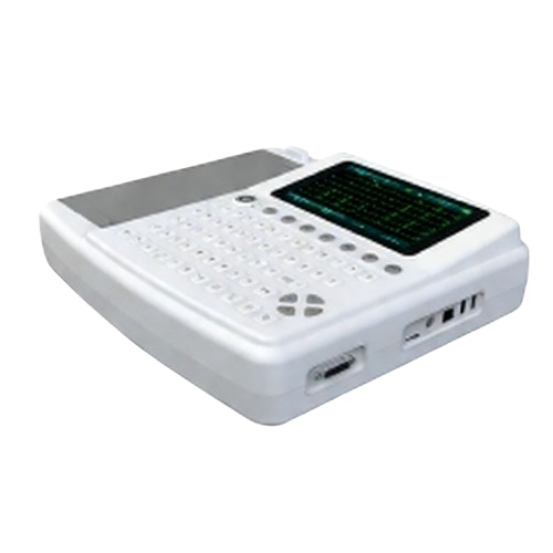

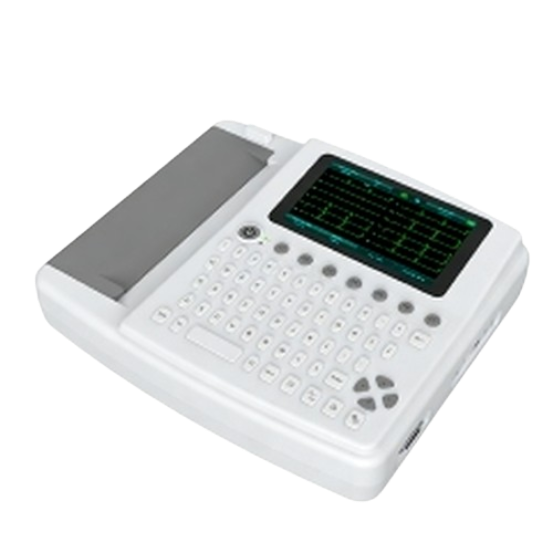

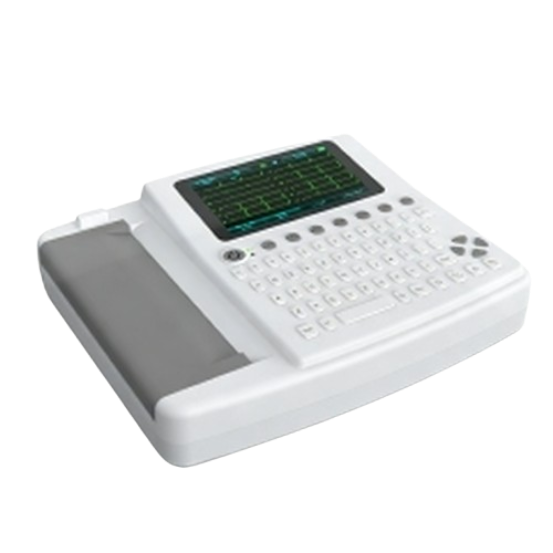

The AKECG-012L 12 channel ECG machine, manufactured by ArKang, is a robust and user-friendly electrocardiograph engineered to meet the demands of modern cardiology diagnostics. Combining a sleek 7-inch touch screen interface with a practical full alphanumeric keyboard and shortcut keys, the system streamlines workflow and reduces operation time, allowing healthcare professionals to focus on patient care.
Equipped with simultaneous 12-lead ECG acquisition and real-time display, the AKECG-012L captures comprehensive cardiac data with high fidelity. Its 24-bit A/D converter and 1000 Hz sampling rate ensure detailed waveform reproduction, while a broad frequency response (0.05–160 Hz) and multiple digital filters (AC, EMG, DFT) effectively suppress interference, providing clear and stable tracings.
The machine supports multiple operation modes, including Manual, Auto, Rhythm, and 1-channel 1-minute recording, catering to varied clinical needs. Built-in automatic measurement and interpretation functions aid in preliminary diagnosis, and internal memory stores up to 1000 cases for retrospective review and analysis. ECG data can be easily transferred to a computer via USB for further processing, reporting, and archiving using included playback software.
Powered by a high-capacity rechargeable lithium battery, the AKECG-012L offers cordless convenience for mobile use within the hospital or during external visits. Its thermal printing system produces high-quality reports on 210 mm wide paper, with adjustable gain and paper speed settings.
Compliant with international safety and performance standards, the AKECG-012L 12 channel ECG machine is a dependable, feature-rich solution for accurate cardiac assessment in diverse healthcare settings.
