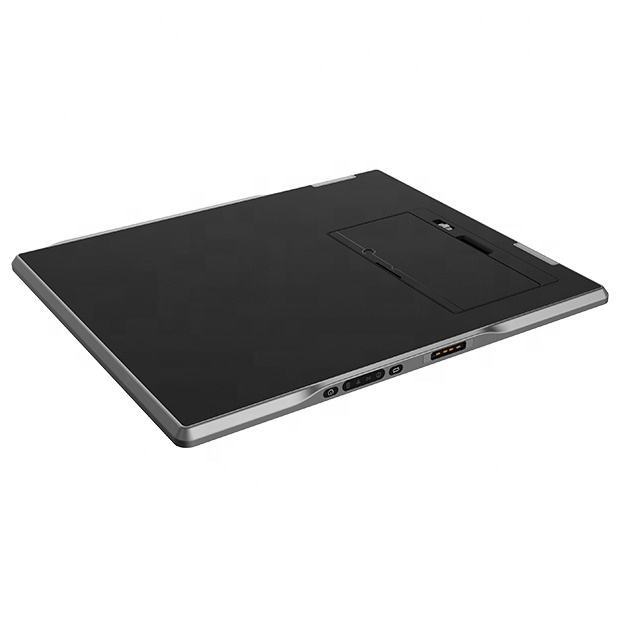

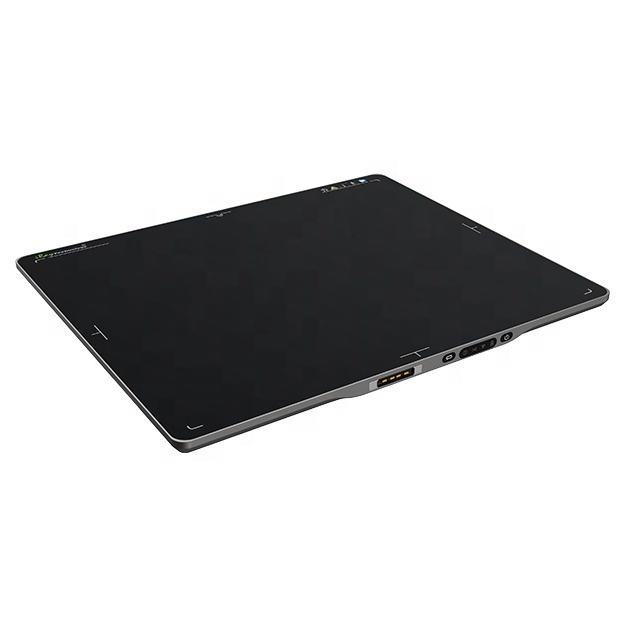

The AKMars 1417X is a best-in-class 14×17-inch cassette-size wireless flat panel detector developed by ArKang, engineered for professional radiographic imaging. This wireless flat panel detector leverages amorphous silicon (a-Si) technology and a direct deposition CsI scintillator, delivering exceptional image quality with excellent Detective Quantum Efficiency (DQE) across all radiation frequencies. It integrates cutting-edge features including IP56 ingress protection, in-tray battery charging, and reliable low-power Automatic Exposure Detection (AED), making it an ideal choice for high-end DR systems and demanding clinical environments.
Core Features and Advantages
-
Best-in-Class Image Resolution & Low-Dose Performance
This wireless flat panel detector features a 100 μm pixel pitch and 16-bit ADC, delivering a spatial resolution of 4.3 lp/mm. The direct deposition CsI scintillator enhances light conversion efficiency, producing crisp, low-noise images while minimizing patient radiation exposure—critical for precise diagnosis of skeletal, chest, and soft-tissue pathologies.
-
Full AED Control & Flexible Workflows
Equipped with full Automatic Exposure Detection (AED) control, this wireless flat panel detector enables exposure triggering at any time, optimizing imaging parameters for consistent results. It also supports software triggering, offering flexibility for diverse clinical workflows and reducing the need for retakes.
-
Rugged IP56 Protection & Portability
The lightweight housing (3.0 kg) features IP56 ingress protection, safeguarding against dust and water immersion. This makes the wireless flat panel detector suitable for use in challenging clinical environments, while its 300 kg uniform static loading capacity ensures long-term reliability and stability.
-
Extended Battery Life & Efficient Workflow
With an 8.5-hour battery autonomy and in-tray charging, this wireless flat panel detector supports extended imaging sessions without interruptions. A <3.5-second full image time and >100 internal image storage streamline workflows, reducing patient waiting times and boosting clinic productivity.
-
Dual-Band Wireless & Broad Compatibility
The dual-band (2.4G & 5G) WiFi interface ensures stable, high-speed data transmission, enabling seamless integration with PACS systems and real-time image review. This wireless flat panel detector also complies with ISO 4090, fitting seamlessly into standard bucky systems for easy retrofitting of existing DR setups.
Technical Specifications Table
| Parameter |
Specification |
| Brand |
Iray |
| Model |
AKMars 1417X |
| Detector Technology |
Amorphous Silicon (a-Si) |
| Scintillator |
CsI (Direct Deposition) |
| Active Area (inch) |
14 × 17 |
| Pixel Matrix |
3500 × 4300 |
| Pixel Pitch (μm) |
100 |
| Spatial Resolution (lp/mm) |
4.3 |
| AD Conversion (bit) |
16 |
| Battery Autonomy (h) |
8.5 |
| WiFi |
2.4G & 5G, IEEE802.11 a/b/g/n/ac |
| Trigger Mode |
AED (Optional) / Software |
| Internal Image Storage (pcs) |
>100 |
| Full Image Time (s) |
<3.5 |
| Dimensions (mm) |
384 × 460 × 15 |
| Weight (kg) |
3.0 |
| Static Loading |
300 kg Uniformly |
| Ingress Protection |
IP56 |
| Operating Temperature (℃) |
10 ~ 35 |
| Storage & Transport Temperature with Package (℃) |
-20 ~ 55 |
| Operating Humidity (% RH) |
5 ~ 90 (Non-Condensing) |
| Storage & Transport Humidity with Package (% RH) |
5 ~ 95 (Non-Condensing) |
| Compliance |
ISO 4090 (fits in bucky systems) |
Application Scenarios
The ArKang AKMars 1417X wireless flat panel detector is ideally suited for:
- High-End DR Systems: As a core imaging component for advanced radiography departments in hospitals and clinics.
- General Radiography: Routine chest, skeletal, and soft-tissue imaging requiring high resolution and low radiation dose.
- Mobile & Emergency Care: Its IP56 protection and portability make it suitable for on-site imaging in emergency and remote clinical settings.
- System Retrofits: Seamless integration into existing DR systems via ISO 4090 compliance, enabling cost-effective upgrades to digital imaging.
