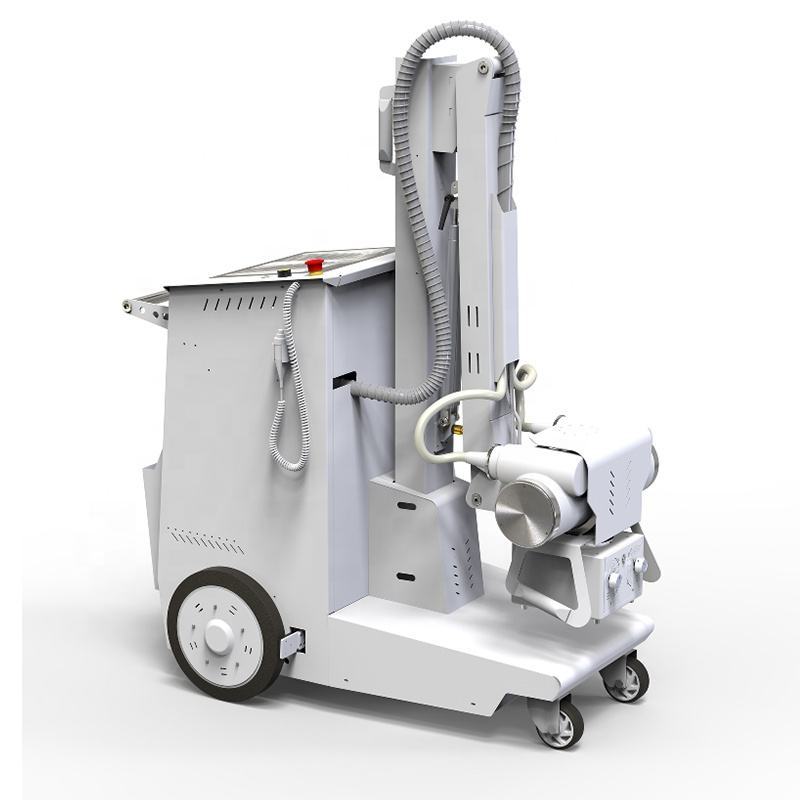

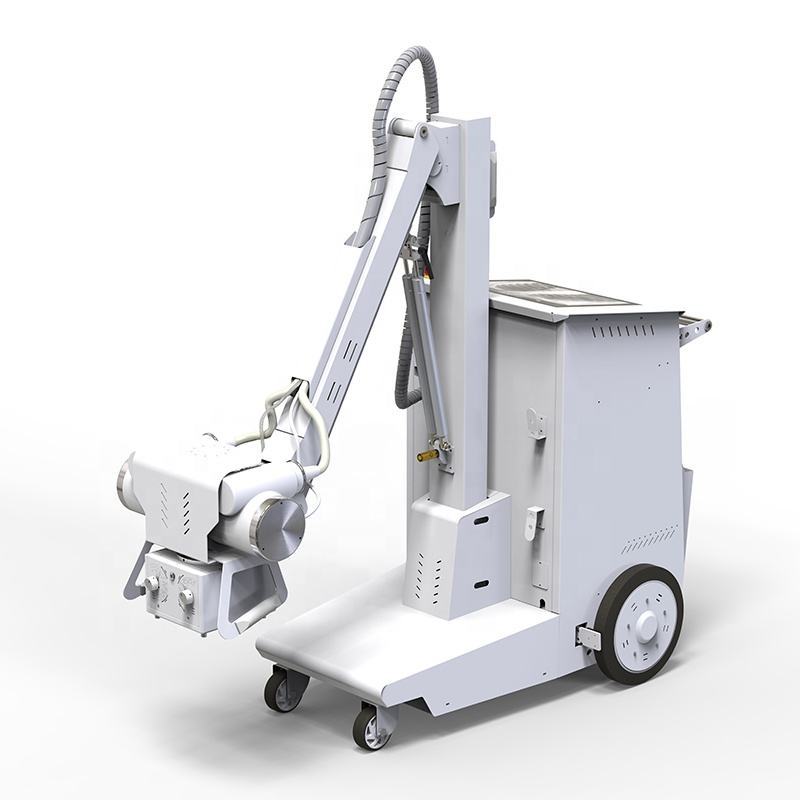

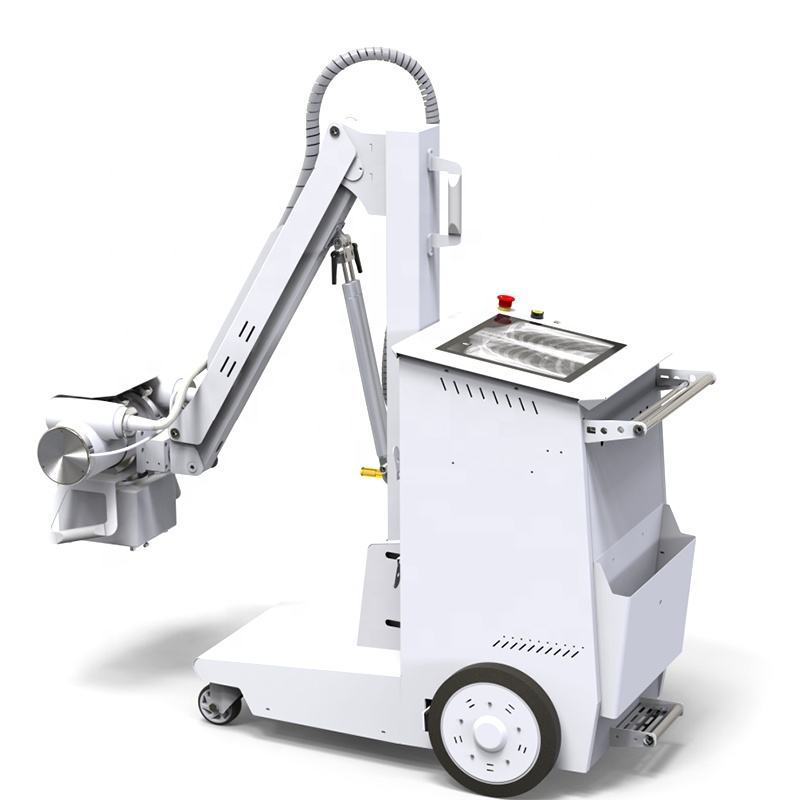

20kW Mobile Digital X-ray System AKX-mDR20

Key Features

• Reliable 20kW High-Frequency Generator – Balanced power for routine and emergency bedside radiography

• Integrated Digital Flat Panel Detector – 17"×17" CsI scintillator with 3072×3072 resolution for sharp, detailed images

• Advanced High-Frequency Operation – ≥100kHz ensures stable output and consistent imaging performance

• Dual-Focus Flexibility – 0.6mm and 1.2mm focal spots support both detailed and high-throughput studies

• Comprehensive Exposure Control – Wide ranges: 40–125kV, 10–320mA, 0.5–320mAs, 0.002–6.3s

• Compact & Highly Mobile – Lightweight design for easy transport between ICU, emergency, and isolation wards




  ---

  Technical Specifications

  X-Ray Generator

  Parameter	Specification
  Power Output	20 kW
  Input Voltage	AC220V ±10%
  kV Range	40–125 kV
  mA Range	10–320 mA
  mAs Range	0.5–320 mAs
  Working Frequency	≥100 kHz
  Exposure Time	0.002–6.3 s
  Focal Spot	0.6 mm / 1.2 mm (Dual Focus)

  Digital Detector (Model: YSFPD-V1717X)

  Parameter	Specification
  Dimension	460 × 460 × 15 mm
  Active Area	427 × 427 mm (17" × 17")
  Scintillator	CsI:TI
  Pixel Matrix	3072 × 3072
  Pixel Size	139 μm
  Fill Factor	70%
  Spatial Resolution	≥3.4 lp/mm
  Image Transfer	Gigabit Ethernet
  X-ray Energy Range	40–150 kV





  ---

  Clinical Applications

  • Intensive Care Units (ICU) – Bedside imaging for critically ill and immobile patients

  • Emergency & Trauma Rooms – Rapid diagnostic imaging in urgent situations

  • Isolation Wards – Safe radiography for infection control and management

  • General Wards & Nursing Units – Convenient imaging without patient transfer

  • Operating & Recovery Rooms – Support during and after surgical procedures

  • Pediatric & Geriatric Departments – Low-dose options for sensitive patient care




  ---

  Why Choose the AKX-mDR20?

  ✅ Optimized Clinical Performance – 20kW power meets requirements for most common radiographic examinations
  ✅ True Digital Workflow – Instant image availability with high-resolution digital detector
  ✅ Excellent Mobility – Lightweight and compact for easy maneuverability in tight spaces
  ✅ Patient-Centered Care – Enables bedside imaging to minimize movement and discomfort
  ✅ Cost-Effective Solution – Delivers digital imaging advantages at an accessible price point
  ✅ Proven Reliability – Built by YSENMED with quality components for consistent daily use




  ---

  System Benefits

  • Immediate Diagnosis – Digital images available in seconds for faster clinical decisions

  • Enhanced Safety – Reduces need to transport critically ill patients through the hospital

  • Infection Control – Ideal for use in isolation areas and with contagious patients

  • Workflow Efficiency – Quick setup and user-friendly operation improve departmental throughput

  • Space Saving – Compact design functions effectively in crowded clinical environments




  ---

  Ordering & Shipping

  • Model: AKX-mDR20 20kW Mobile Digital X-ray System

  • MOQ: 1 Unit

  • Ship From: China

  • Shipping: Multiple options available (Air, Sea, Express) customized to customer needs




  ---

  Contact Information

  Enhance your medical imaging services with the versatile and affordable YSX-mDR20. Contact us today for a quotation, detailed brochure, or customized support!
