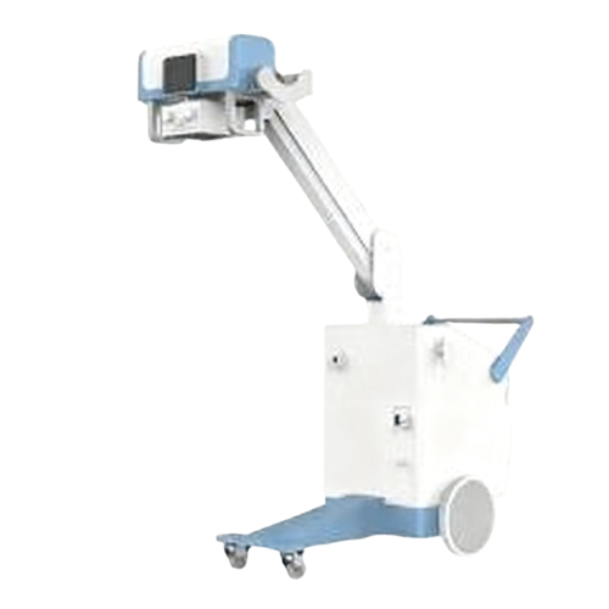

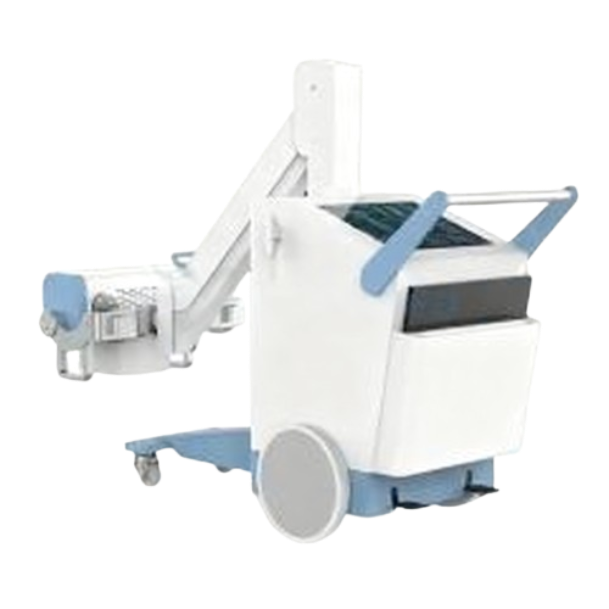

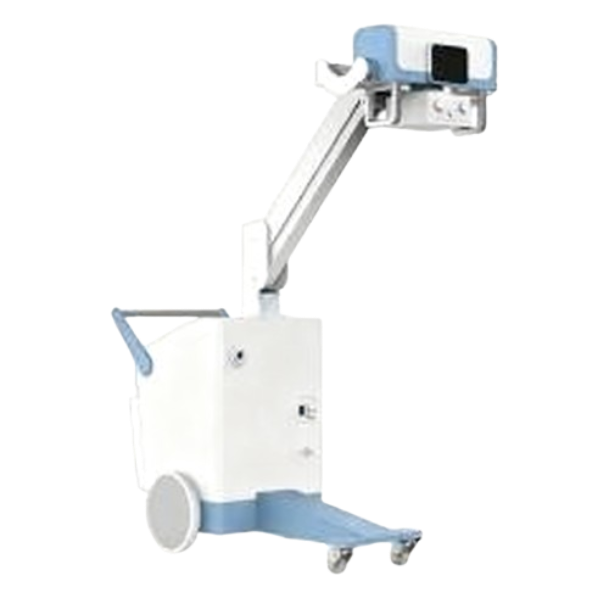

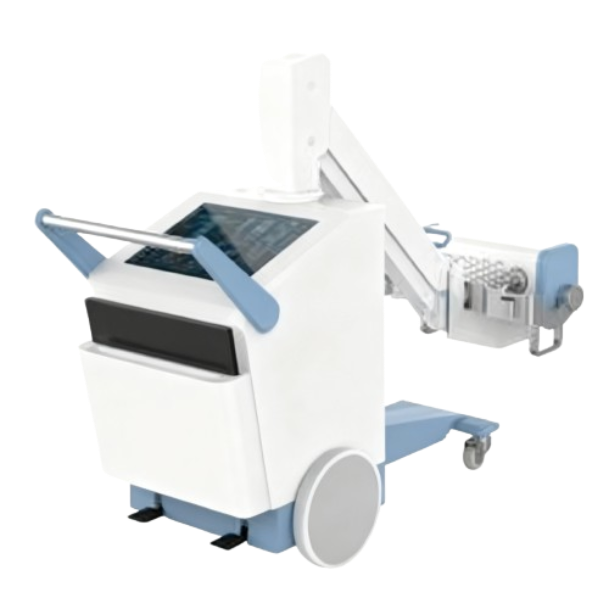

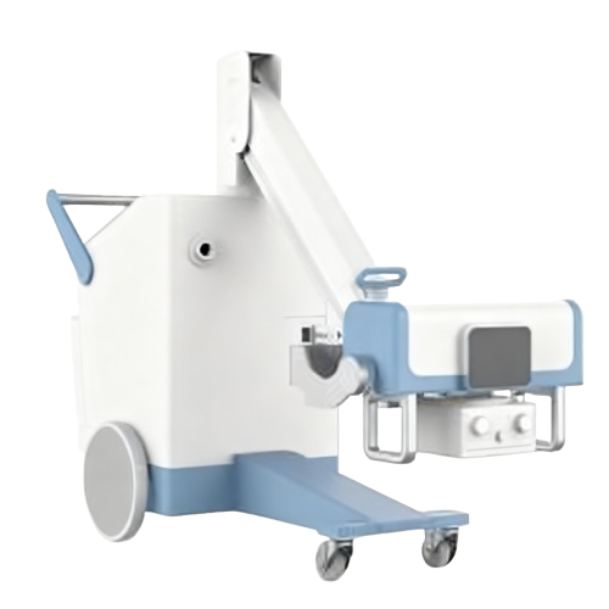

20kW Mobile Digital X-ray System AKX-mDR20D

Key Features

• Full Digital Integration - Complete mobile DR system with real-time, lossless image transmission

• Intelligent Touch Control - User-friendly touch interface with remote exposure capability and LED display

• Dual-Focus X-Ray Tube (0.6mm/1.2mm) - Versatile imaging capabilities for both detailed and high-throughput applications

• High Heat Capacity - 150KHU anode & 1250KHU tube assembly heat content support continuous workflow

• Universal Power Compatibility - Works with 100-120VAC or 208-240VAC ±10% (Single Phase, 50/60Hz)

• Low Power Consumption - ≤4KVA operation for energy-efficient performance



  ---

  Technical Specifications

  Parameter	Specification
  Model	AKX-mDR20D
  Nominal Power	20 kW
  kV Range	40 - 120 kV
  mA Range	10 - 400 mA
  Focal Spots	0.6 mm (Small) / 1.2 mm (Large)
  Switching Frequency	70 - 250 KHz
  Input Voltage	100-120 VAC ±10% or 208-240 VAC ±10%
  	1 Phase, 50/60 Hz
  Power Consumption	≤4 KVA
  Anode Heat Capacity	110 KJ (150 KHU)
  Tube Assembly Heat Capacity	900 KJ (1250 KHU)
  Anode Speed	2800 rpm (50Hz) / 3200 rpm (60Hz)





  ---

  Clinical Applications

  • Radiology Department & Imaging Centers

  • Operating Rooms & Endoscopic Centers

  • Hospital Wards & ICU

  • Wheelchair & Stretcher Examinations

  • Outdoor Medical Services & Emergency Response




  ---

  Ordering & Shipping Information

  • Model: AKX-mDR20D

  • Price: [Get Price - Contact us for quotation]

  • Minimum Order Quantity (MOQ): 1 Unit

  • Ships From: China

  • Shipping: Any shipping terms convenient for customers




  ---

  Why Choose the AKX-mDR20D?

  • Complete Digital Workflow - From exposure to diagnosis with real-time image transmission

  • Exceptional Versatility - Suitable for virtually all clinical environments and patient conditions

  • Advanced User Interface - Touch control and remote exposure enhance operational efficiency

  • Reliable Performance - High heat capacity ensures consistent operation during busy schedules

  • Global Power Adaptation - Compatible with electrical systems worldwide

  • Proven Quality - Manufactured by ArKang with comprehensive technical support




  ---

  Contact Information

• Contact us today for pricing, detailed configuration options, and delivery arrangements!
