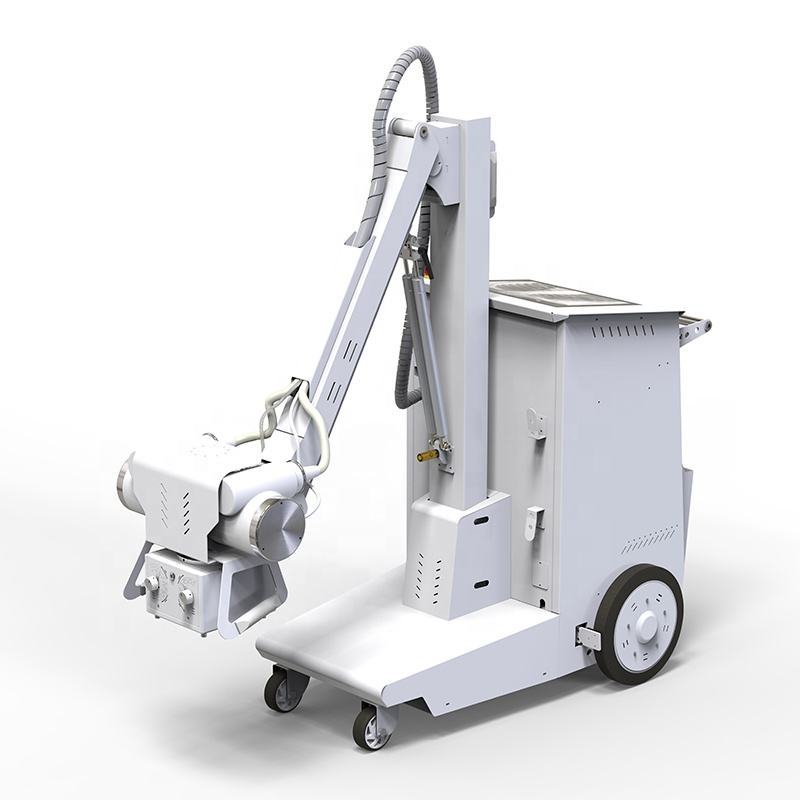

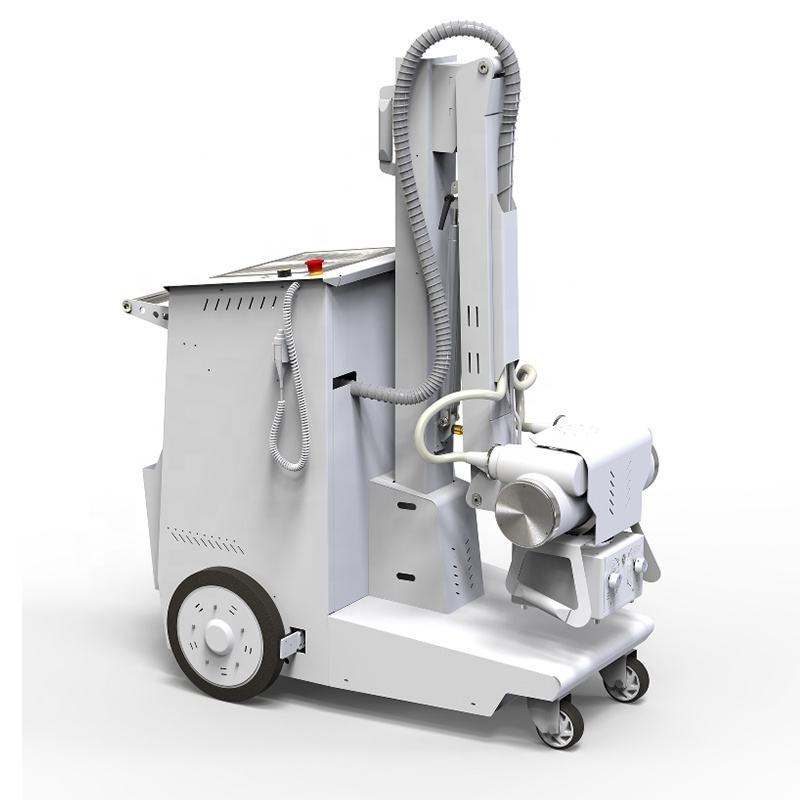

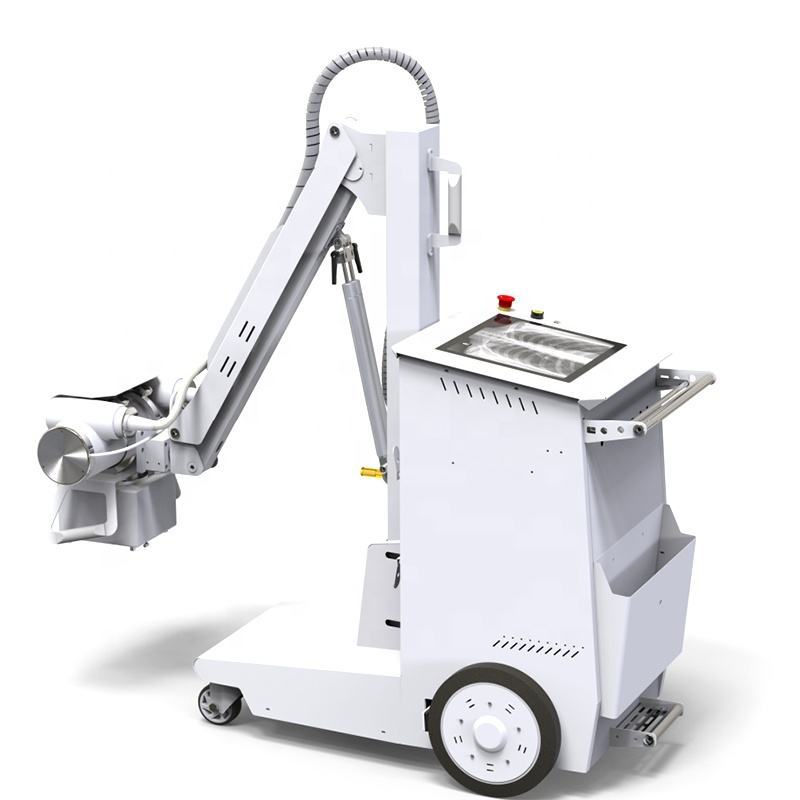

32kW High-Frequency Mobile Digital X-ray System AKX-mDR32

Key Features

• High-Performance 32kW Generator – Delivers fast, high-quality imaging for demanding clinical applications

• Integrated Digital Detector System – 17"×17" wireless flat panel with CsI scintillator and 3072×3072 resolution

• High-Frequency Technology – ≥100kHz operation ensures consistent output and superior image quality

• Dual-Focus X-Ray Tube – 0.6mm/1.2mm focal spots for detailed and high-throughput imaging

• Comprehensive Exposure Control – Wide ranges: 40–125kV, 10–400mA, 0.5–320mAs, 0.002–6.3s

• Compact & Mobile Design – Lightweight construction for easy transport to ICU, emergency, and isolation areas




  ---

  Technical Specifications

  X-Ray Generator

  Parameter	Specification
  Power Output	32 kW
  Input Voltage	AC220V ±10%
  kV Range	40–125 kV
  mA Range	10–400 mA
  mAs Range	0.5–320 mAs
  Working Frequency	≥100 kHz
  Exposure Time	0.002–6.3 s
  Focal Spot	0.6 mm / 1.2 mm (Dual Focus)

  Digital Detector (Model: YSFPD-V1717X)

  Parameter	Specification
  Dimension	460 × 460 × 15 mm
  Active Area	427 × 427 mm (17" × 17")
  Scintillator	CsI:TI
  Pixel Matrix	3072 × 3072
  Pixel Size	139 μm
  Fill Factor	70%
  Spatial Resolution	≥3.4 lp/mm
  Image Transfer	Gigabit Ethernet
  X-ray Energy Range	40–150 kV





  ---

  Clinical Applications

  • Intensive Care Units (ICU) – Critical patient monitoring and diagnosis

  • Emergency & Trauma Departments – Rapid response imaging for urgent cases

  • Isolation Wards – Infectious disease control and management

  • Operating Room Support – Intraoperative imaging and verification

  • General Ward Bedside Imaging – Routine examinations without patient transfer

  • Pediatric & Neonatal Care – Specialized imaging for sensitive populations




  ---

  Why Choose the AKX-mDR32?

  ✅ Complete DR Solution – Integrated generator and digital detector for seamless workflow
  ✅ Superior Image Quality – High-resolution detector with excellent contrast and detail
  ✅ Enhanced Mobility – Compact design navigates easily through hospital environments
  ✅ Dose Optimization – High-frequency technology reduces patient radiation exposure
  ✅ Clinical Versatility – Suitable for diverse applications from routine to critical care
  ✅ Future-Ready Technology – Digital imaging compatible with PACS and hospital networks




  ---

  System Advantages

  • Immediate Image Availability – Digital workflow eliminates film processing delays

  • Patient Safety – Minimizes movement of critically ill patients

  • Infection Control – Essential for isolation areas and contagious patients

  • Workflow Efficiency – Rapid setup and imaging capability improves department throughput

  • Space Optimization – Compact footprint operates effectively in crowded clinical spaces




  ---

  Ordering & Shipping

  • Model: AKX-mDR32 32kW Mobile Digital X-ray System

  • MOQ: 1 Unit

  • Ship From: China

  • Shipping: Flexible options (Air, Sea, Express) tailored to customer requirements




  ---

  Contact US

• Transform your mobile imaging capabilities with the advanced YSX-mDR32 digital radiography system. Contact us today for pricing, technical specifications, and delivery options!
