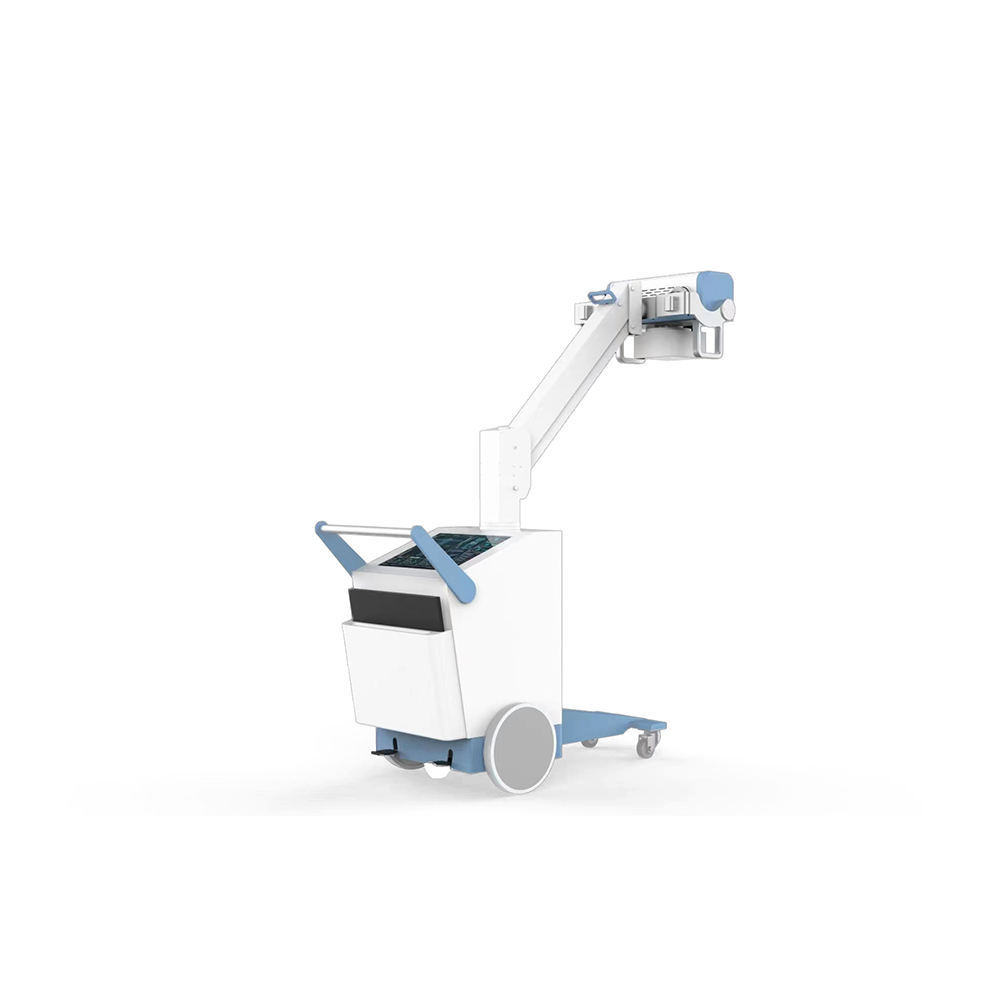

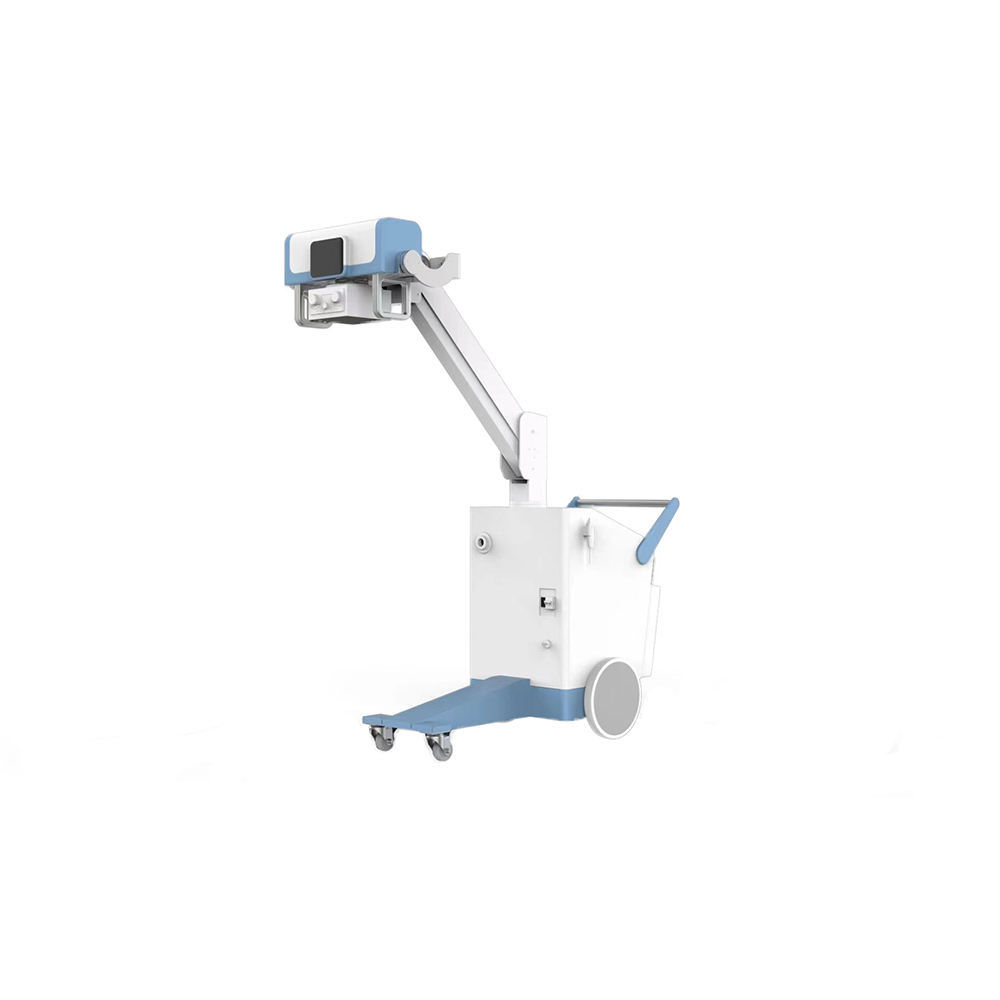

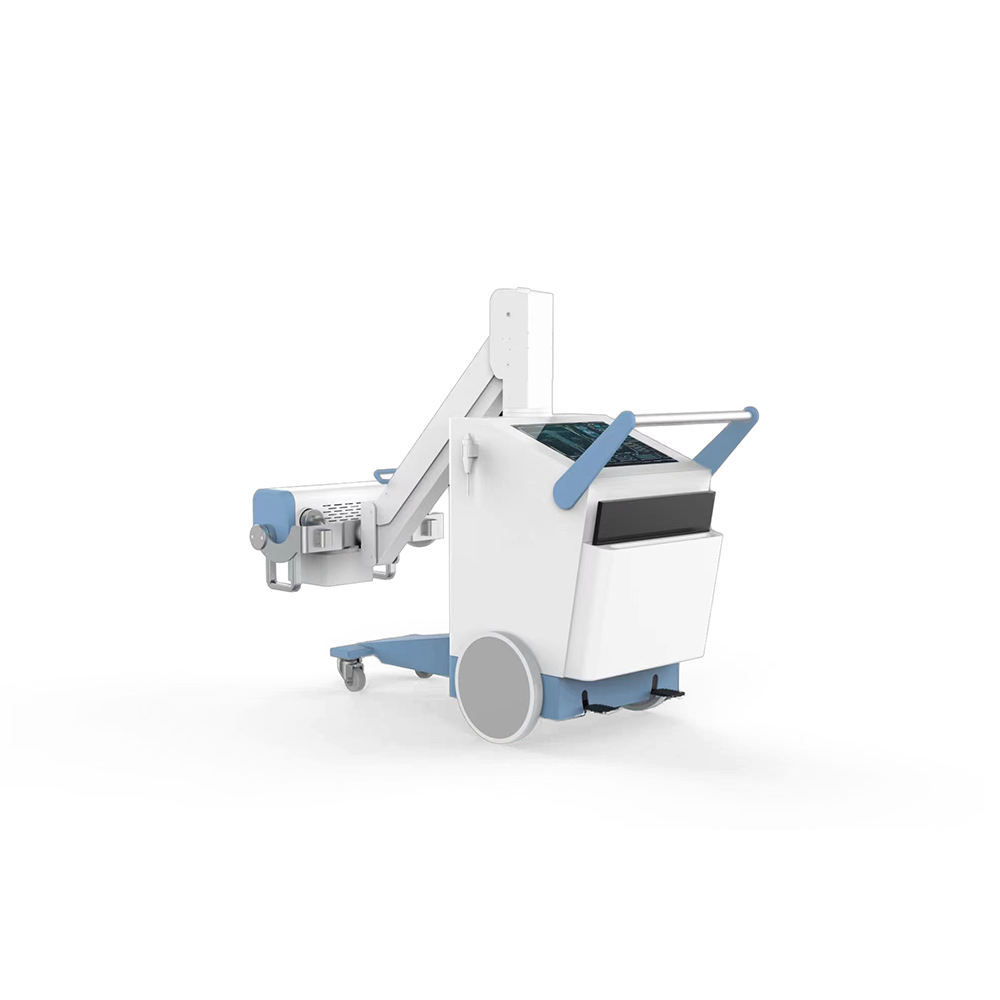

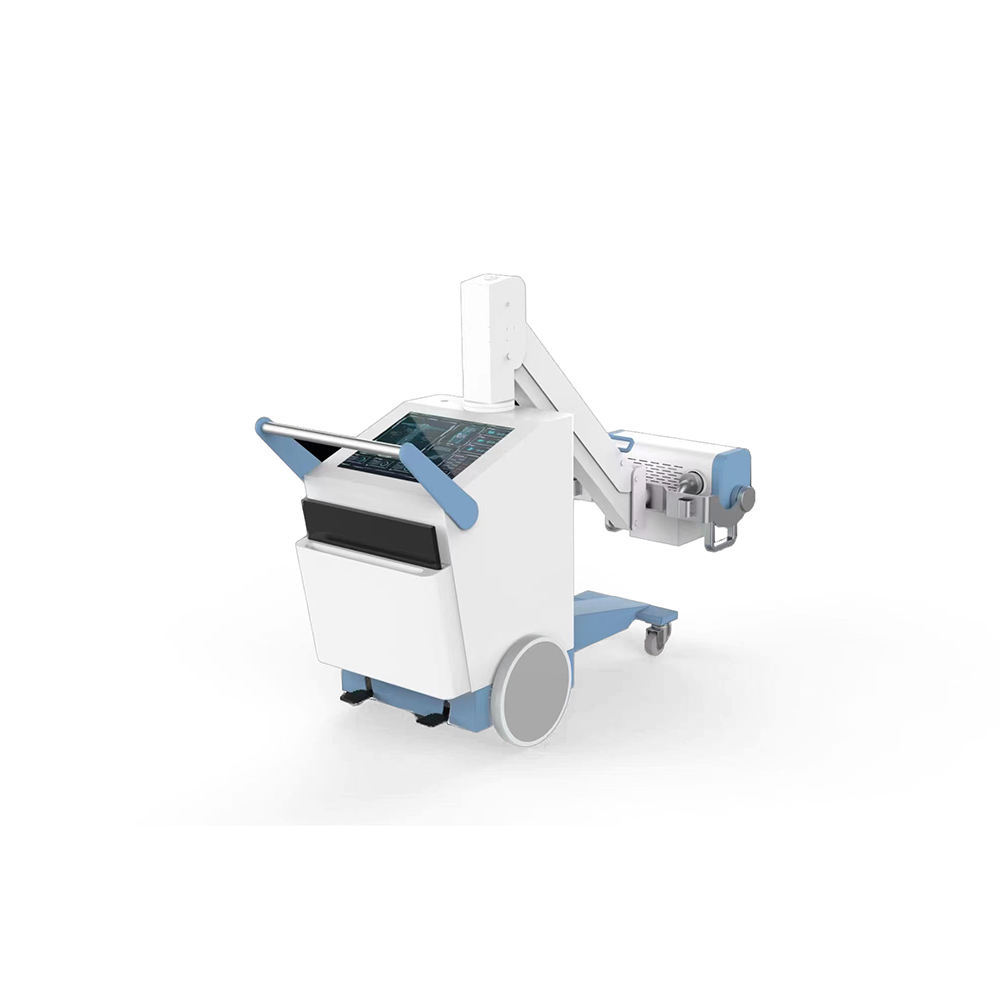

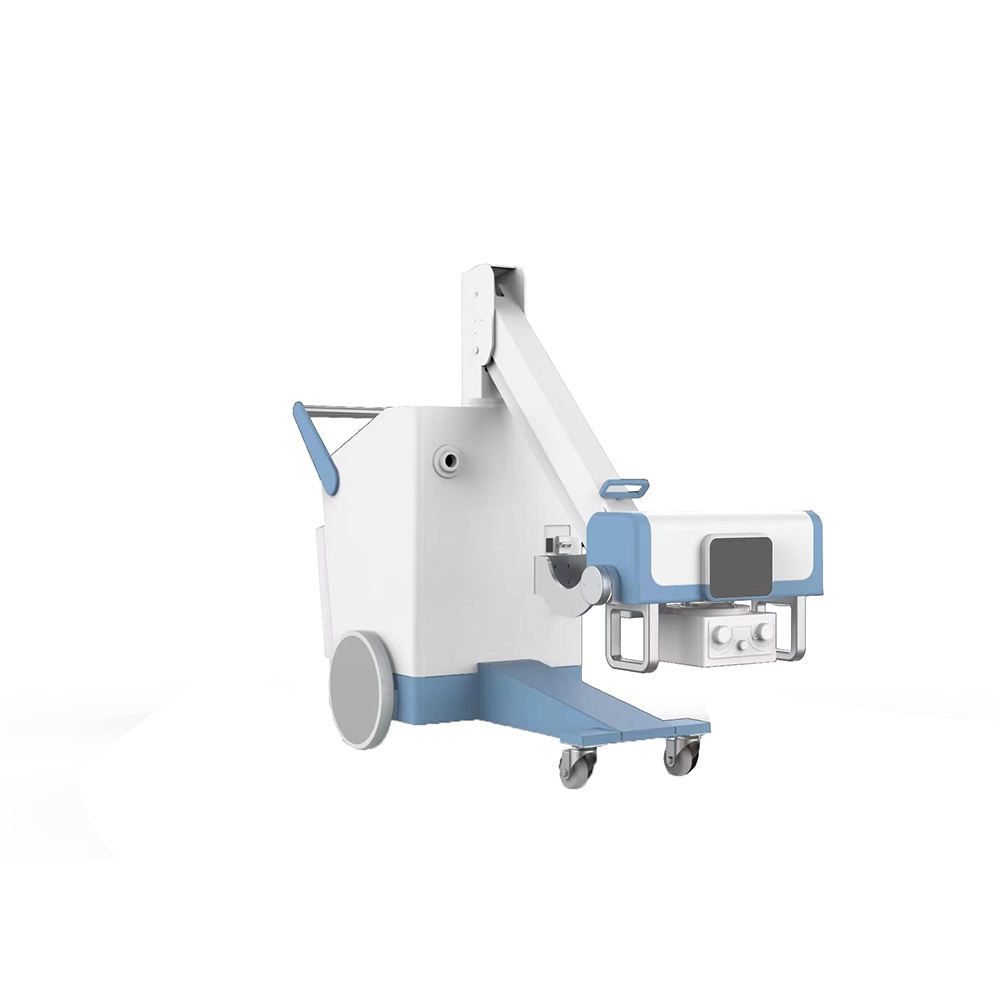

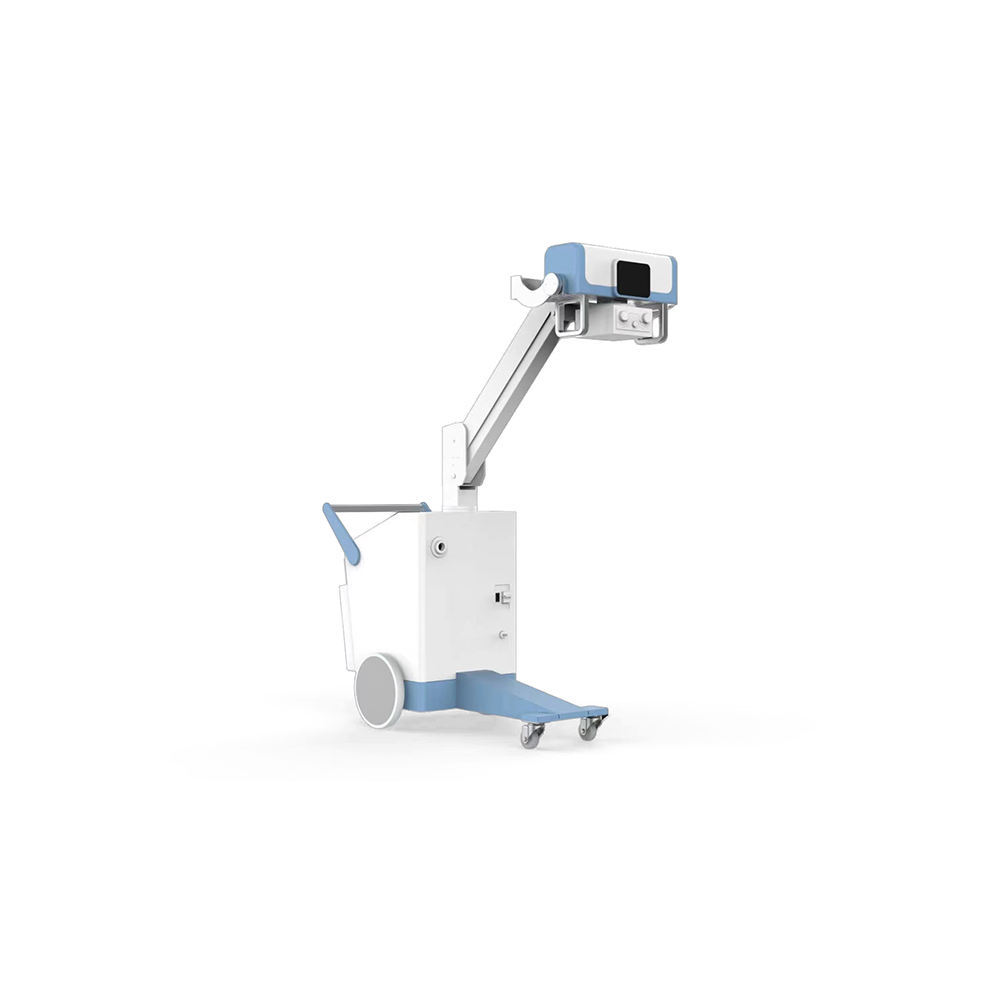

32kW High-Performance Mobile Digital X-Ray Machine AKX-mDR32D

Key Features

• High-Performance Mobile X-Ray Unit - 32kW power output delivers exceptional imaging capability for challenging clinical situations

• Real-Time Lossless Image Transmission - Advanced digital technology ensures instant, high-quality image transfer

• Intelligent Touch Control System - User-friendly interface with remote exposure capability and LED display

• Dual-Focus X-Ray Technology - 0.6mm/1.2mm focal spots for both detailed and high-throughput imaging

• Superior Heat Capacity - 150KHU anode & 1250KHU tube assembly support continuous operation

• Universal Power Compatibility - 100-120VAC or 208-240VAC ±10% (Single Phase, 50/60Hz) for global use



  ---

  Technical Specifications

  Parameter	AKX-mDR32D
  Nominal Power	32 kW
  kV Range	40 - 125 kV
  mA Range	10 - 400 mA
  Focal Spots	0.6 mm (Small) / 1.2 mm (Large)
  Switching Frequency	70 - 250 KHz
  Input Voltage	100-120 VAC ±10% or 208-240 VAC ±10% 1 Phase, 50/60 Hz
  Power Consumption	≤4 KVA
  Anode Heat Capacity	110 KJ (150 KHU)
  Tube Assembly Heat Capacity	900 KJ (1250 KHU)
  Anode Speed	2800 rpm (50Hz) / 3200 rpm (60Hz)





  ---

  Clinical Applications for This Mobile X-Ray Machine

  This versatile mobile x-ray unit is ideally suited for:

  • Radiology Departments & Imaging Centers

  • Operating Rooms & Endoscopic Centers

  • Hospital Wards & Intensive Care Units (ICU)

  • Wheelchair & Stretcher Examinations

  • Outdoor Medical Services & Emergency Response

  • Trauma Centers & Emergency Departments




  ---

  Ordering & Shipping Information

  • Model: AKX-mDR32D Mobile X-Ray Unit

  • Price: [Contact for Price Quote]

  • Minimum Order Quantity: 1 Unit

  • Ships From:China

  • Shipping: Flexible shipping terms available worldwide




  ---

  Why Choose This Mobile X-Ray Unit?

  • Superior Imaging Power - 32kW output provides excellent penetration and image quality for all patient types

  • Complete Digital Workflow - Real-time image transmission from this mobile x-ray unit streamlines diagnosis

  • Exceptional Clinical Versatility - This mobile x-ray unit performs reliably across all healthcare settings

  • Advanced Heat Management - High heat capacity ensures this mobile x-ray unit handles continuous operation

  • Global Compliance - This mobile x-ray unit adapts to electrical systems worldwide

  • Proven Reliability - ArKang's manufacturing excellence backs this professional mobile x-ray unit
