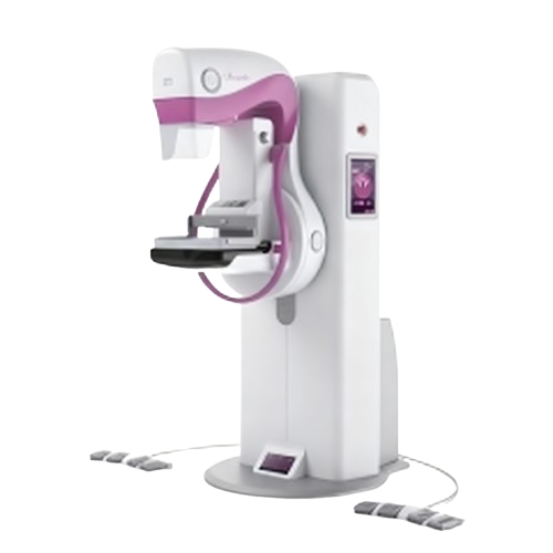

3D Digital Mammography Machine with Breast Tomosynthesis AKX-DM300A

Core Features of the AKX-DM300A Mammography Machine:

1. Integrated System Design
   • All-in-one configuration (generator built into the main device) with a compact footprint (minimum height <1.1m, weight 240kg) for flexible installation (including on mobile vehicles).
   • 5000VA rating power, 220V power supply, and 50/60Hz frequency compatibility.

2. Imaging & X-ray Performance
   • X-ray Generator: ≥100kHz frequency, 20–40kV tube voltage (1kV step), max 4kW output, and <4% ripple for stable, low-noise imaging.
   • X-ray Tube: Standard molybdenum anode (optional tungsten anode) with 0.1mm (small)/0.3mm (large) focal spots, 10000rpm anode speed, and 320kJ heat capacity.
   • Detector: Amorphous Silicon (a-Si + CsI) detector with 85μm pixel size, 2816×3528 pixel matrix, 24×30cm effective imaging area, and 6 Lp/mm spatial resolution.
   • Optical & Filtering: 12-wavelength grating system (340–800nm), manual/automatic added filter (Mo/Rh/AG) switch, and 5:1 anti-scatter grid (41L/cm density).


3. Patient-Centric Operation
   • C-Arm Assembly: Iso-center rotation (range: -135°~180°), automatic stops at common positions (CC, OBL, LAT), and 750–1330mm height adjustment; dual-side digital displays show rotation angle.
   • Compression Device: Electrically power-driven, flexible multi-level smart compression (0–200N force, 5–268mm thickness range), with automatic/manual decompression.
   • Safety Features: Emergency stop button (C-arm top), duplex foot switches, and light field indicator (auto-on/off with compression plate movement).


4. Image Management & Workflow
   • Acquisition Station: Intel CPU (≥2.4GHz), ≥4GB RAM, ≥500GB HDD, 1MP medical display; supports DICOM 3.0 (print, store, query/retrieve).
   • Software Capabilities: Image processing (reverse, zoom, enhance), patient information management, automatic exposure control (AEC), and self-check/adjustment for the detector.

     Logistics & Order Details:

• Model: AKX-DM300A
• Brand: ArKang
• MOQ: 1 unit
• Ship From: Guangzhou, China
• Shipping: Flexible terms (customized to customer convenience)

This Mammography Machine delivers exceptional imaging quality, operational safety, and workflow efficiency, making it a reliable solution for clinical breast screening and diagnostics.
