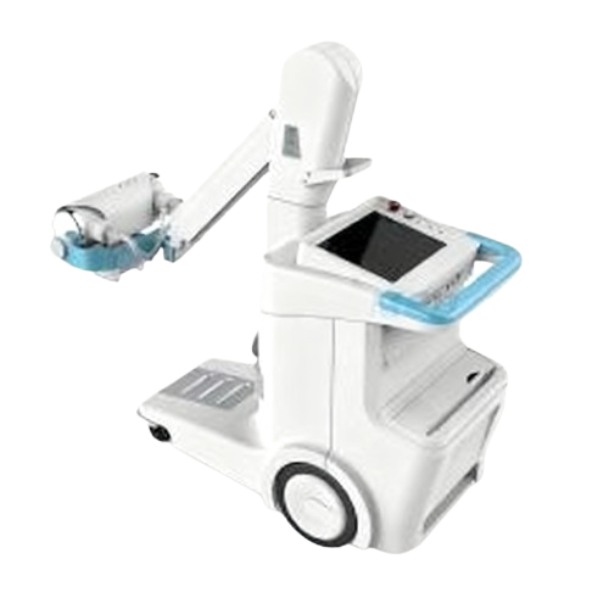

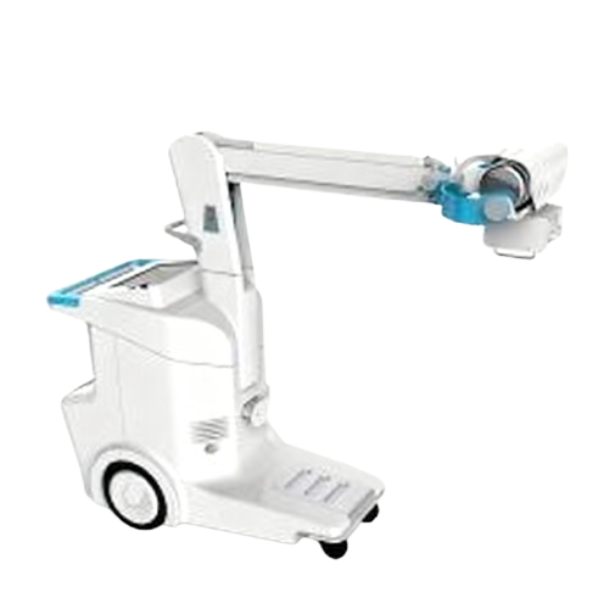

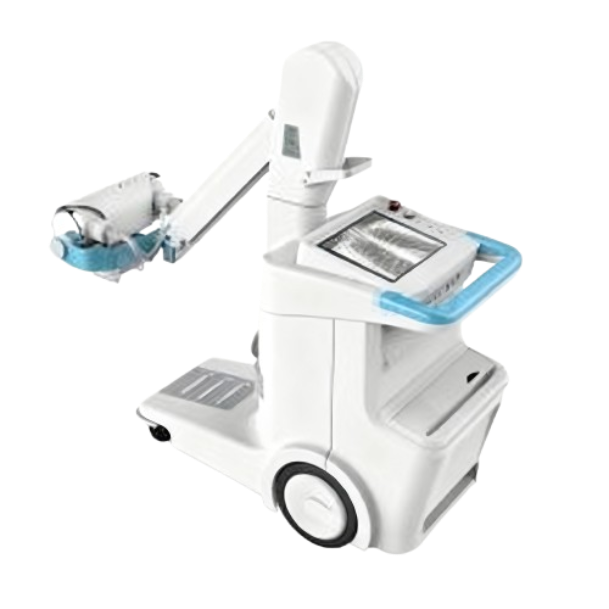

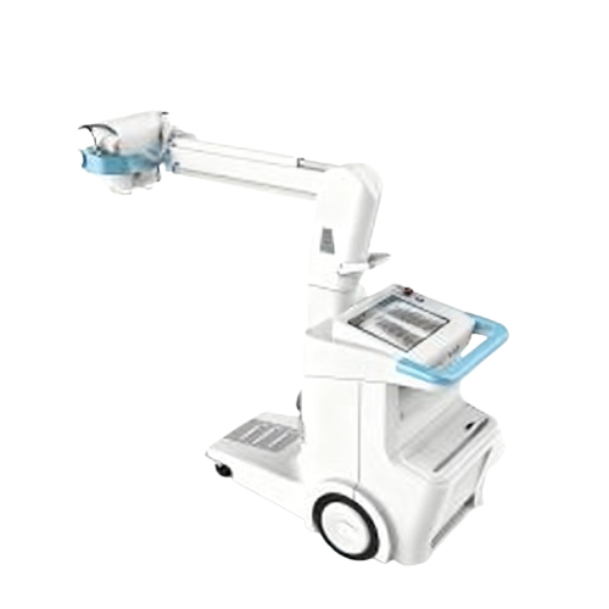

40kW 500mA Mobile Digital X Ray Machine

Key Features

• True Mobility: With a compact design and a flexible mobile stand, this digital mobile x ray machine can easily navigate through hospital departments for immediate bedside diagnosis.

• Fully Digital Workflow: From patient information entry and Dicom 3.0 image acquisition to preview, processing, and transmission, it enables a seamless digital management process, highlighting the efficiency and intelligence of a modern digital mobile x ray machine.

• Exceptional Image Quality: Equipped with a high-performance amorphous silicon flat panel detector and a Japanese Canon X-ray tube, this digital mobile x ray machine delivers high-resolution, high-contrast diagnostic images.

• Flexible & Easy Operation: Supporting both remote control and hand switch exposure modes, with electric column control and a wide-angle rotating X-ray tube, this digital mobile x ray machine easily adapts to various complex shooting positions.




Technical Specifications

High Voltage Generator

• Power: 40kW

• kV Range: 40 ~ 125kV

• mA Range: 10 ~ 500mA

• mAs Range: 0.1 - 320mAs

• Working Frequency: 300kHz

• Exposure Time: 0.002s - 10s



X-Ray Tube (Canon Japan)

• Nominal Tube Voltage: 125kV

• Anode Heat Storage: 140KHU

• Anode Angle: 17.5°

• Focal Spot: 1.0 / 2.0mm

• Positioning Lamp: LED, 10W

• Maximum Radiation Field: > 43 x 43cm at SID=100cm



Flat Panel Detector

• Size: 17 x 17 inch

• Scintillator: CsI

• Pixel Matrix: 3072 x 3072

• Pixel Size: 139μm

• Spatial Resolution: Min. 3.6 lp/mm

• AD Conversion: 16 bit

• Fill Factor: 70%

• Weight: 4 KG

• Image Transfer: Ethernet



Acquisition Station (All-in-One Computer)

• Touch Screen: 17-inch LCD

• Resolution: 1280 * 1024

• CPU: Intel Core i5-4

• Memory: 8 GB + 128 GB

• Hard Disk: 500G

• Operating System: Windows 10



Software Features

• Input of patient information and examination details.

• Perform Dicom 3.0 image acquisition, preview, accept/reject images, and send images automatically or manually.

• Image pre-processing and post-processing functions, including real-time storage, zoom, brightness/contrast adjustment, rotation, flip, clipping, inverse phase, and transmission.

• Supports various methods for query, edit, print, burn, etc.



Mechanical Structure & Mobility

• Parking Dimensions (L x W x H): 137.8 cm x 65 cm x 152 cm

• Max. Focus Height: 195 cm

• Min. Focus Height: 62 cm

• Column Rotation: ±90°

• X-Ray Tube Rotation: ±180°

• Rear Wheel Diameter: 30 cm | Front Wheel Diameter: 10 cm

• Column Control: Electric



Exposure Control

• Remote Control Exposure: Allows preparation and exposure from over ten meters away using a handheld remote.

• Hand Switch Exposure: Supports traditional hand switch exposure mode.




Optional Accessories

• Simple Chest Stand

• Mobile Imaging Table




Why Choose the AKX-mDR40A Digital Mobile X-Ray Machine?

Choosing the AKX-mDR40A digital mobile x ray machine means selecting a solution that perfectly integrates superior image quality, exceptional mobility, and an intelligent digital workflow. It significantly enhances clinical diagnostic efficiency and convenience, making it the ideal equipment for bedside radiography and emergency examinations in modern healthcare facilities.
