🔹 System Configuration Overview
🔬 Core Components Specifications
📲 Flat Panel Detector
-
Model: AKFPD-M1717V | Brand: Iray
-
Technology: Wireless a-Si Flat Panel Detector, CsI Scintillator
-
Active Imaging Area: 430mm x 430mm
-
Pixel Matrix: 3072 x 3072
-
Pixel Pitch: 139μm | Spatial Resolution: 3.6 lp/mm
-
Gray Scale: 16-bit | Acquisition Time: ≤5 seconds
As the core imaging component of this Digital Mobile X Ray System, this detector provides high-resolution, rapid imaging and supports wireless transmission, significantly enhancing mobile radiography efficiency.
⚙️ High-Frequency Generator
-
Rated Output Power: 50kW
-
kV Range: 40~150kV, 1kV steps
-
mA Range: 50-630mA | mAs Range: 0.5~320mAs
-
Input Power: 220V/110V / Single Phase
High-frequency technology ensures stable X-ray output and excellent image quality, suitable for imaging various body types and parts. It is the guarantee of high-efficiency imaging for this Digital Mobile X Ray System.
📡 X-Ray Tube
The high heat capacity and dual-focus design meet the demands of long-term, high-load imaging, ensuring the Digital Mobile X Ray System operates stably even in mobile environments.

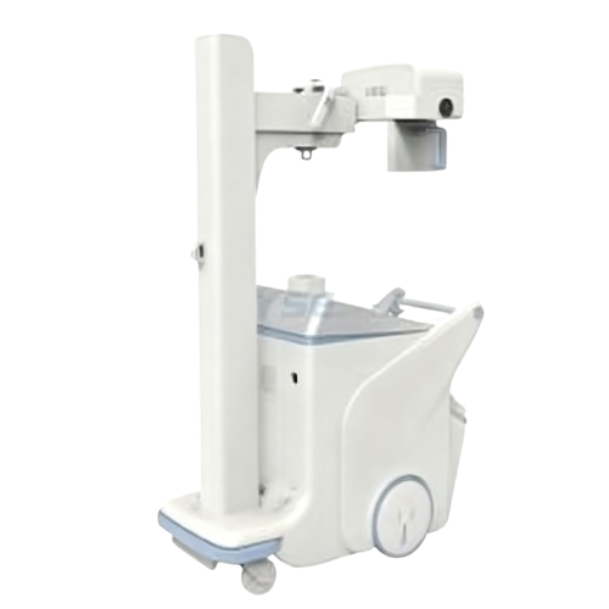

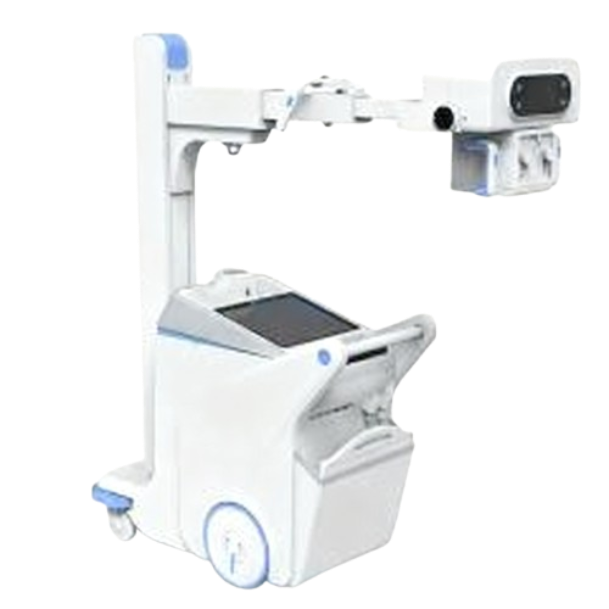

🔄 Mobile Stand
-
Vertical Travel Range of Tube Head: 580~1800mm
-
Tube Head Tilt Range: -15° to +90°
-
Column Rotation: ±270°
-
Tube Head Horizontal Rotation: ±90°
-
Collimator Vertical Rotation: ±90°
-
Overall Dimensions: 1240mm × 580mm × 1865mm
Flexible multi-directional adjustments adapt to different shooting angles and patient positions, truly embodying the mobility and adaptability of this Digital Mobile X Ray System.
🎛️ Collimator
Provides precise control of the irradiation field, reducing scatter and improving image quality and patient safety.
💻 Digital X-Ray Diagnostic Workstation
-
Display Size: 19-inch | Pixel Matrix: 1280 x 1024
-
Patient Management: Manual entry, WORKLIST auto-retrieval
-
Image Acquisition: Auto window adjustment, auto crop, auto transmission
-
Image Processing: Image correction, flip
-
Image Viewing: WW/WL adjustment, flip, rotate, zoom, reset
-
Medical Reporting: Auto-loads patient info
-
Film Printing: Supports DICOM 3.0 standard laser cameras
-
DICOM Send: Transmits images to any DICOM 3.0 compliant PACS and workstations
-
Smart Power Switching: Supports exposure while charging
The workstation serves as the intelligent control center of the Digital Mobile X Ray System, enabling a fully digital workflow from capture to diagnosis, storage, and transmission.
✅ Key Product Advantages
-
Fully Digital Workflow: Seamless integration with Hospital Information Systems from imaging to diagnosis.
-
High Mobility & Flexibility: Battery-powered with a wireless detector, easily handles various emergency and bedside scenarios.
-
Exceptional Image Quality: The high-resolution detector and high-frequency generator work in synergy to deliver clear, detailed images.
-
Smart & Easy Operation: The workstation integrates multiple automated functions to boost workflow efficiency.
-
Strong Compatibility: DICOM 3.0 support allows for easy connection to PACS and printing devices.
