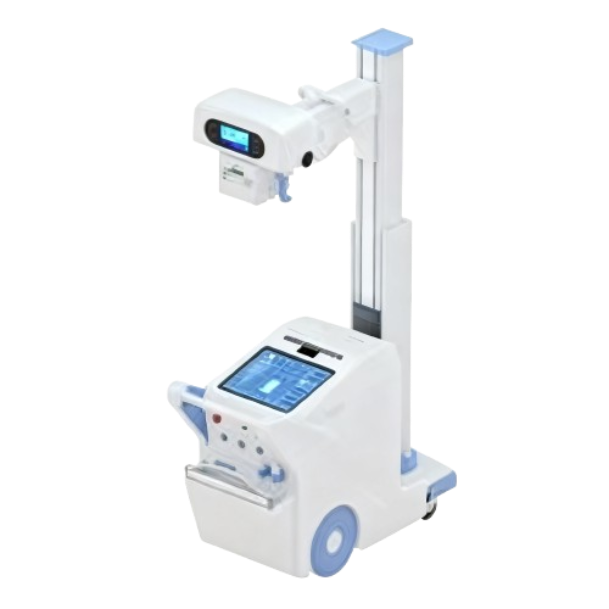

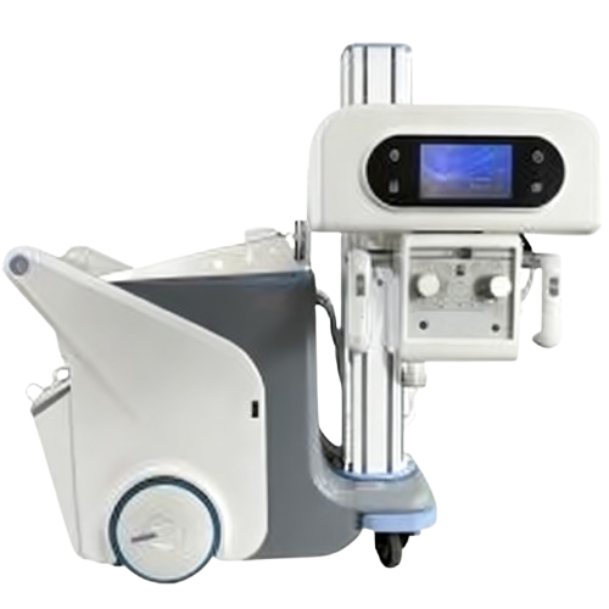

The AKX-mDR50B from ArKang represents the pinnacle of mobile X-ray technology. This 50kW system is engineered for clinical settings where power, reliability, and image quality are non-negotiable. It combines a heavy-duty generator and a high-heat-capacity X-ray tube with a high-resolution wireless digital detector, all integrated into a versatile mobile platform. Designed for high-throughput departments like Critical Care, Emergency, and Operating Rooms, the AKX-mDR50B provides the diagnostic power of a fixed room system with the crucial advantage of point-of-care mobility.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Key Features at a Glance

Exceptional 50kW High-Frequency Generator: Delivers powerful, fast exposures with exceptional image quality for all patient types, including large and difficult-to-image anatomies.
High-Capacity 300kHU X-Ray Tube: Ensures maximum uptime and workflow efficiency, capable of handling long, high-dose examination sequences without overheating.
Large Wireless Flat Panel Detector (14"x17"): Features advanced CsI technology with 9.4 million pixels and 16-bit grayscale for superb image clarity and diagnostic confidence.
Fully Integrated Mobile Workstation: Includes a 19" diagnostic monitor with powerful patient management and DICOM 3.0 connectivity for seamless integration into hospital PACS.
Superior Maneuverability & Positioning: The robust mobile stand offers an extensive range of motion (vertical, horizontal, and rotational) for easy positioning in ICU, ER, and patient wards.

Intelligent Battery Power Unit: Supports exposure during charging, ensuring the system is always ready for use and eliminating downtime.

Technical Specifications

System Configuration

Flat Panel Detector: AKTCQ-1417L, 14"x17" Wireless (CsI)
Workstation: AKTX-3 DX Ray Diagnostic Workstation
Generator: AKF5Q-M50A High-Frequency Generator
X-Ray Tube: AKMXZ1301, Rotating Anode
Collimator: AKXS-A1 with LED light and 1.2mm Al filter
Mobile Stand: AKMTYD50
Power Unit: Integrated Battery
Optional: Tablet for enhanced control

Imaging Chain Specifications

Component	Specification
Generator Power	50 kW
kV Range	40 - 150 kV (in 1 kV steps)
mA Range	50 - 630 mA
mAs Range	0.5 - 320 mAs
Input Power	220V / 110V, Single Phase

X-Ray Tube	Specification
Focal Spot	Dual Focus: 0.6 mm / 1.2 mm
Max Tube Voltage	150 kV
Anode Heat Capacity	300 kHU
Anode Angle	12°

Flat Panel Detector	Specification
Technology	Wireless Amorphous Silicon (a-Si)
Scintillator	Cesium Iodide (CsI)
Active Area	430 mm x 430 mm (14" x 17")
Pixel Matrix	3072 x 3072
Pixel Size	140 μm
Spatial Resolution	3.5 lp/mm
Grayscale	16-bit
Acquisition Time	≤ 7 seconds

Mechanical & Mobility Specifications

Vertical Movement (Tube): 600mm - 2100mm
Horizontal Telescopic Movement: 720mm - 1220mm
Column Rotation: ±270°
Tube Tilt: -15° to +90°
Tube Horizontal Rotation: ±90°
Collimator Rotation: ±90°
Stand Dimensions (LxWxH): 1240mm × 580mm × 1385mm

Workstation & Software Features

Display: 19-inch high-resolution monitor.
Patient Management: Manual registration and WORKLIST auto-query.
Image Processing: Auto windowing, cropping, flipping, and correction.
DICOM 3.0 Compliance: Full support for printing, storage, and transfer to PACS.
Power Management: Intelligent switching function allows for exposure even while the system is charging.

Ordering & Shipping Information

Model: AKX-mDR50B
Price: [Get Price - Contact us for a detailed quote]
Minimum Order Quantity (MOQ): 1 Unit
Ships From: China
Shipping: We offer flexible shipping terms (FOB, CIF, EXW, etc.) tailored to our customers' needs for seamless global delivery.

Why Choose the AKX-mDR50B?

Clinical Excellence: The 50kW power and 300kHU heat capacity provide the performance needed for the most demanding radiographic examinations.
Workflow Efficiency: Fast wireless imaging, a fully mobile design, and intelligent software streamline the imaging process from exposure to diagnosis.
Future-Proof Connectivity: Full DICOM 3.0 support ensures easy integration into your existing hospital information system (HIS/PACS/RIS).
Reliability Guaranteed: Built with high-quality components from a trusted manufacturer, designed for durability in intensive healthcare environments.
