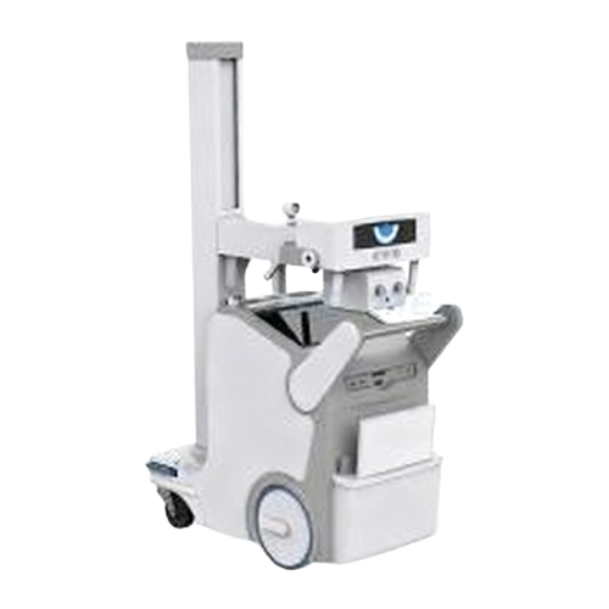

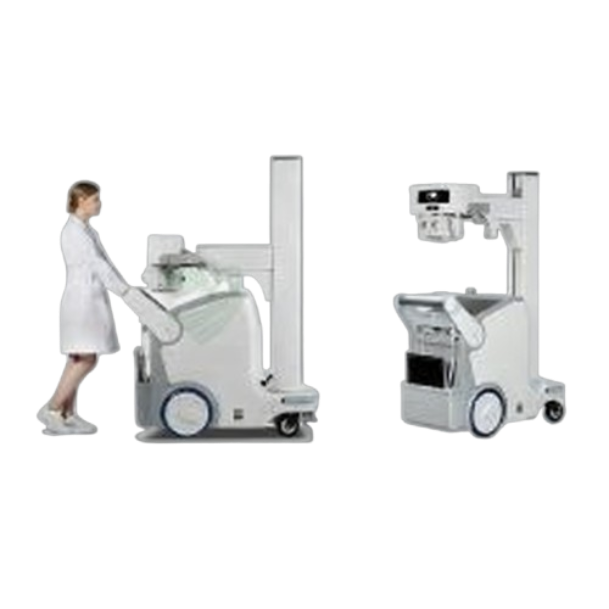

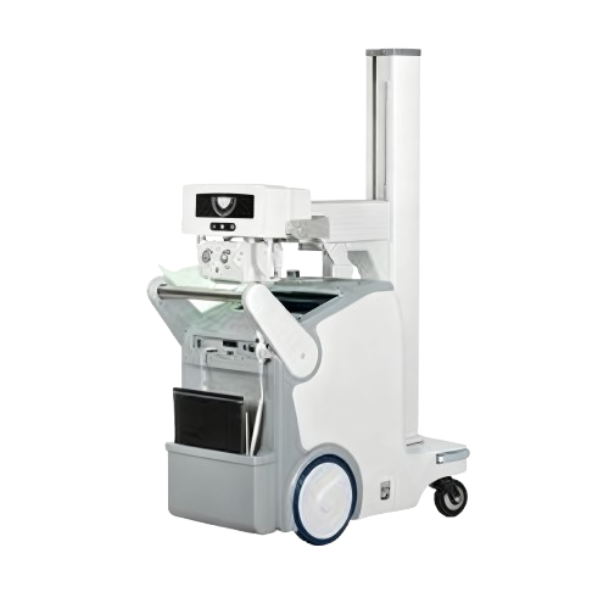

50kW Mobile Digital X-Ray System AKX500MG

Key Features

• 50kW High-Power Generator – Exceptional output for full-body radiography and challenging clinical applications

• Large Heat Capacity X-Ray Tube – 150/300 kHU anode rating supports continuous high-volume workflow

• High-Quality Wireless Detector – 14"×17" or 17"×17" flat panel options for superior image quality

• 21.5" Large Touch Screen – Ultra-narrow border design with wide field of vision for enhanced display

• Advanced Lithium Battery System – Fast charging, extended exposure capacity, and long service life

• Exceptional Positioning Range – ±315° column rotation, ±180° tube tilt, and 730–1250mm telescopic arm



  ---

  Technical Specifications

  Generator System

  Parameter	Specification
  Standard Power	50kW / 45kW
  kVp Range	40–150 kVp
  mA Range	10–630 mA
  mAs Range	0.1–360 mAs

  X-Ray Tube

  Parameter	Specification
  Anode Heat Content	150 / 300 kHU

  Flat Panel Detector

  Parameter	Specification
  X-ray Sensitive Area	14"×17" / 17"×17" (Optional)
  Technology	Wireless Flat Panel Detector

  Physical Specifications

  Parameter	Specification
  Weight	380 kg
  Height	184 cm
  Width	55 cm
  Column Rotation Range	±315°
  Tube Tilting Angle	±180°
  Tube Vertical Rotation Angle	-30° to +90°
  Telescopic Arm Length Range	730–1250 mm
  SID Range	610–1830 mm

  Display & Power System

  Parameter	Specification
  Touch Screen	21.5-inch Large Display
  Screen Features	Ultra-narrow Border, Wide Field of Vision
  Battery System	Dynamic Lithium Battery
  Battery Advantages	Fast Charging, More Exposures, Extended Service Life





  ---

  System Advantages

  Imaging Performance

  • Full-Body Capability – 50kW power meets requirements for all radiographic examinations

  • High-Resolution Detection – Wireless flat panel technology ensures diagnostic image quality

  • Thermal Management – Large heat capacity supports continuous high-volume imaging

  Operational Excellence

  • Enhanced Visualization – Large format touch screen improves workflow efficiency

  • Superior Maneuverability – Comprehensive positioning range for optimal patient alignment

  • Power Management – Advanced lithium battery technology maximizes operational uptime

  Clinical Versatility

  • Wide Application Range – Suitable for all hospital departments and patient types

  • Flexible Positioning – Extensive movement range accommodates challenging clinical scenarios

  • Future-Ready Technology – Digital platform compatible with modern healthcare systems




  ---

  Clinical Applications

  • Full-Body Radiography – Comprehensive imaging for general and specialized diagnostics

  • Critical Care Imaging – ICU and emergency department bedside examinations

  • Orthopedic & Trauma – High-quality imaging for bone and joint studies

  • Surgical Support – Operating room and intraoperative applications

  • High-Volume Departments – Radiology departments requiring continuous operation

  • Specialized Examinations – Challenging cases requiring high power and precision




  ---

  Why Choose the AKX500MG?

  ✅ Professional-Grade Power – 50kW output handles the most demanding imaging requirements
  ✅ Advanced Battery Technology – Fast charging lithium system ensures continuous operation
  ✅ Superior Imaging Chain – High-quality generator, tube, and detector combination
  ✅ Enhanced User Experience – Large touch screen and intuitive controls
  ✅ Exceptional Positioning – Wide range of motion for optimal patient positioning
  ✅ Reliable Performance – Robust construction for high-volume clinical environments



  ---

  Ordering & Shipping

  • Model: AKX500MG 50kW Mobile Digital X-Ray System

  • MOQ: 1 Unit

  • Ship From: China

  • Shipping: Flexible options tailored to customer requirements worldwide




  ---

  Contact US

  Elevate your medical imaging capabilities with the high-performance YSX500MG. Contact us today for pricing, technical specifications, and delivery information!
