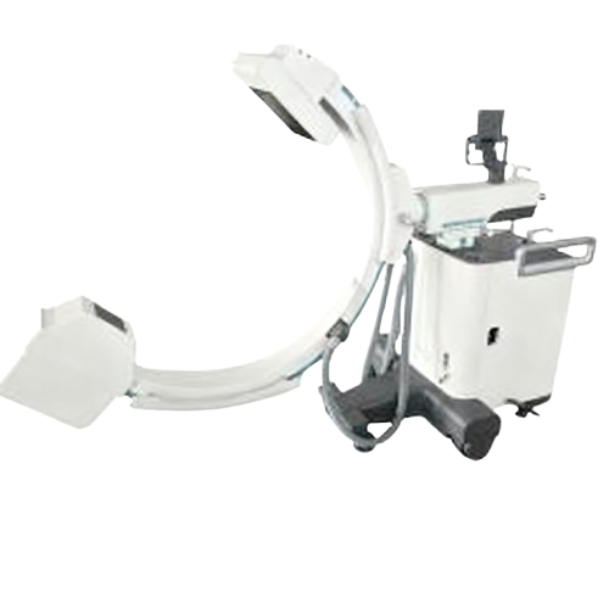

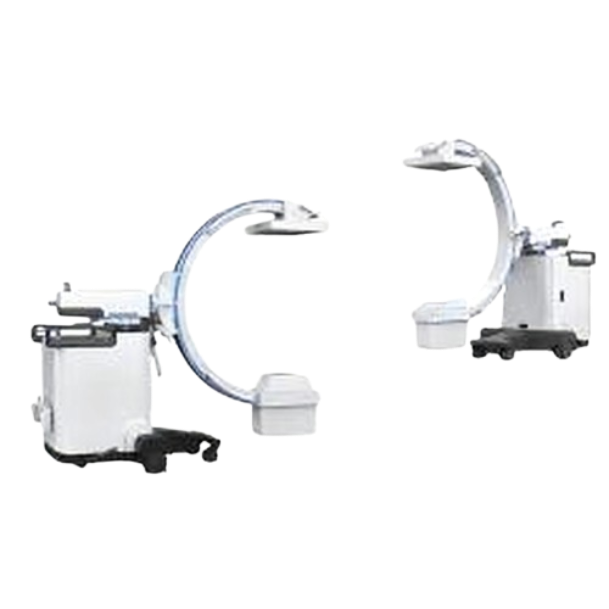

5kW FPD Digital C-arm X-ray System AKX-C605A

Key Features

• High-Resolution FPD Detector – 1024×1024 pixel matrix with 2.5 lp/mm spatial resolution and removable grid

• 5kW High-Frequency Generator – Versatile operation modes: continuous, pulsed, and digital spot imaging

• Advanced Rotating Anode X-ray Tube – Dual focal spots (0.3mm/0.6mm) for detailed and high-dose procedures

• Comprehensive C-arm Mobility – 360° lateral rotation, 150° orbital rotation, and ±15° wig-wag movement

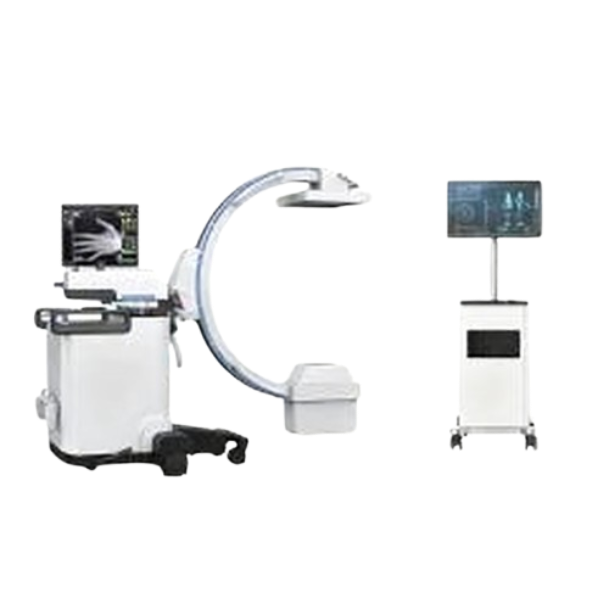

• Dual Monitor Display – 15.6" main unit monitor and 24" trolley monitor for optimal viewing

• Universal Power Compatibility – Operates on 110VAC/220VAC for global deployment



  ---

  Technical Specifications



  Power & Electrical System

  Parameter	Specification
  Electric Power	110VAC / 220VAC
  Max. Output Power	5 kW

  Flat Panel Detector (Model: Mercu 0909F, iRay)

  Parameter	Specification
  Active Area	210 × 210 mm
  Pixel Matrix	1024 × 1024 pixels
  Pixel Pitch	205 µm
  Spatial Resolution	2.5 lp/mm
  Interface	1G Ethernet
  Removable Grid	Yes

  Generator & Exposure Control

  Parameter	Specification
  kV Range	Spot/Pulse: 40–125 kV Continuous: 40–110 kV
  mA Range	Continuous: 6.3 mA Pulsed: 32 mA Digital Spot: 100 mA
  Exposure Time	10–1600 ms
  mAs Range	0.2–100 mAs

  X-Ray Tube Assembly

  Parameter	Specification
  Tube Type	Rotating Anode
  Focal Spots	0.3 mm / 0.6 mm (Dual)

  C-arm Mechanical System

  Parameter	Specification
  SID (Source to Image)	1000 mm
  Free Space in Arc	784 mm
  Depth in Arc	640 mm
  Orbital Rotation	150° (117°/-33°)
  Lateral Rotation	360° (±180°)
  Wig-wag Movement	±15°
  Horizontal Travel	200 mm
  Vertical Travel	400 mm

  Display System

  Parameter	Specification
  Main Unit Monitor	15.6-inch display

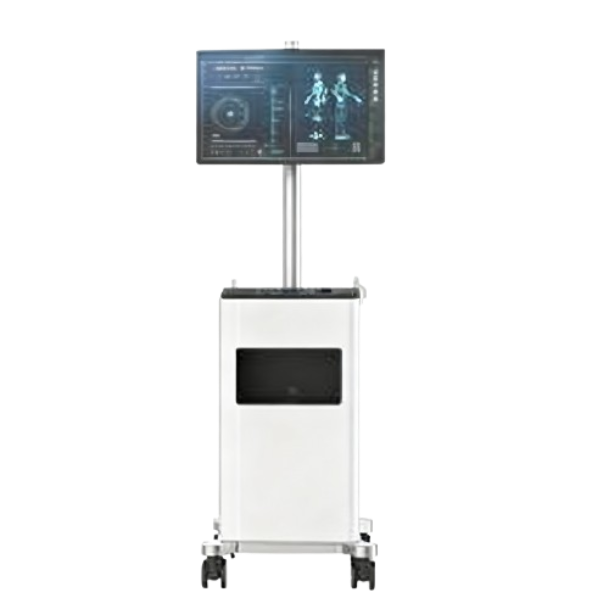

  Trolley Monitor	24-inch display





  ---

  System Advantages

  Imaging Excellence

  • Superior Image Quality – High-resolution FPD technology provides excellent contrast and detail

  • Flexible Imaging Modes – Continuous, pulsed, and digital spot imaging for various clinical needs

  • Grid Compatibility – Removable grid reduces scatter radiation and improves image quality

  Operational Flexibility

  • Comprehensive Positioning – Full 360° rotation with orbital and wig-wag movements for optimal angles

  • Enhanced Accessibility – Large 784mm arc space accommodates various surgical setups

  • Precise Control – Wide range of exposure parameters for customized imaging protocols

  Clinical Efficiency

  • Dual Monitor Setup – Simultaneous viewing on procedure unit and remote trolley

  • Rapid Imaging – Fast detector readout and processing for real-time guidance

  • Easy Integration – Standard Ethernet interface for seamless connectivity

  Safety & Reliability

  • Dose Optimization – Pulsed fluoroscopy and precise exposure control minimize radiation exposure

  • Stable Performance – High-frequency generator ensures consistent output quality

  • Robust Construction – Durable mechanical system for long-term clinical use




  ---

  Clinical Applications

  • Orthopedic Surgery – Fracture reduction, joint replacement, spinal procedures

  • Pain Management – Nerve blocks, epidural injections, facet joint procedures

  • Vascular Interventions – Angiography, embolization, vascular access procedures

  • Urological Procedures – Nephrolithotomy, stent placement, urinary interventions

  • General Surgery – Intraoperative localization and verification

  • Trauma & Emergency – Rapid assessment and intervention in critical cases




  ---

  Why Choose the AKX-C605A?

  ✅ Advanced Digital Imaging – Flat panel detector technology for superior image quality
  ✅ Exceptional Maneuverability – Comprehensive positioning for challenging anatomical angles
  ✅ Clinical Versatility – Suitable for various surgical and interventional specialties
  ✅ Dose Efficiency – Multiple imaging modes optimize radiation exposure
  ✅ User-Friendly Design – Intuitive controls and dual monitor setup enhance workflow
  ✅ Proven Technology – Quality components from recognized manufacturers including iRay detector




  ---

  Ordering & Shipping

  • Model: AKX-C605A 5kW FPD Digital C-arm System

  • MOQ: 1 Unit

  • Ship From: China

  • Shipping: Air or Sea freight available worldwide




  ---

  Contact US

  Upgrade your interventional imaging capabilities with the advanced AKX-C605A Digital C-arm System. Contact us today for pricing, technical specifications, and clinical demonstration!
