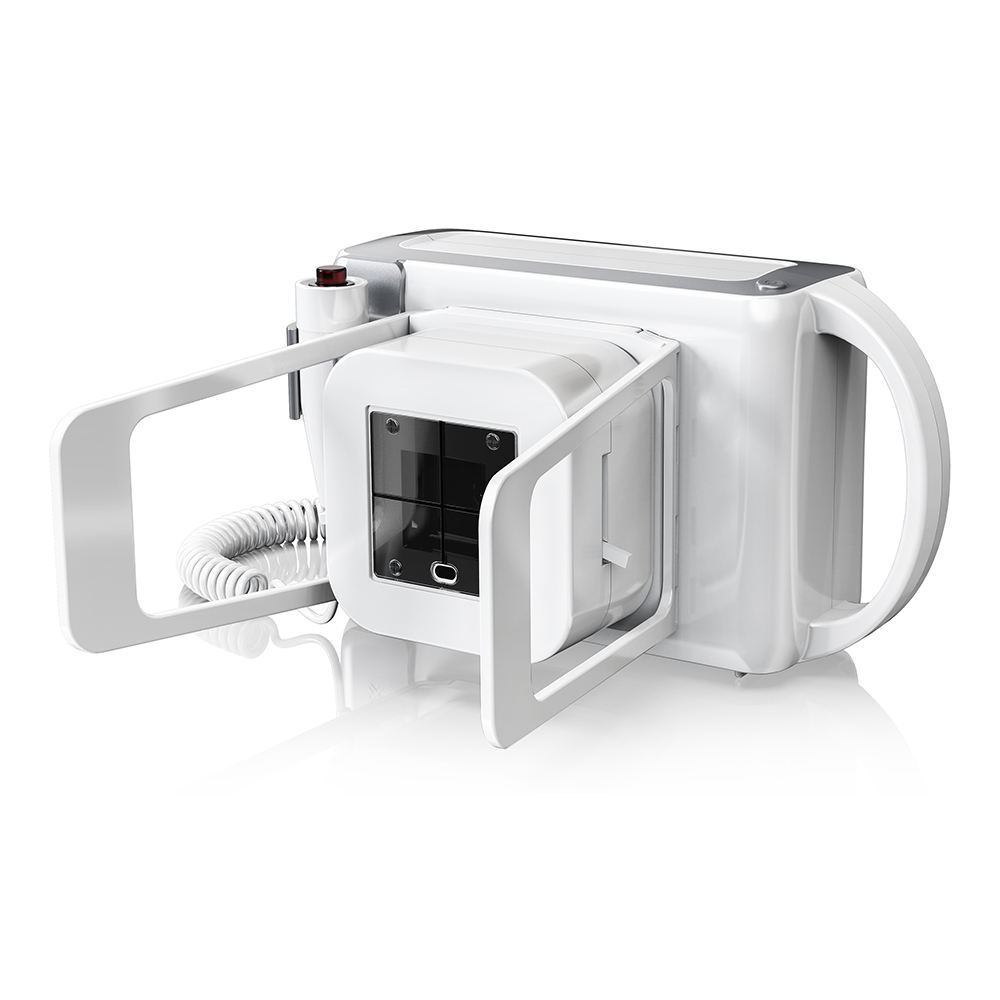

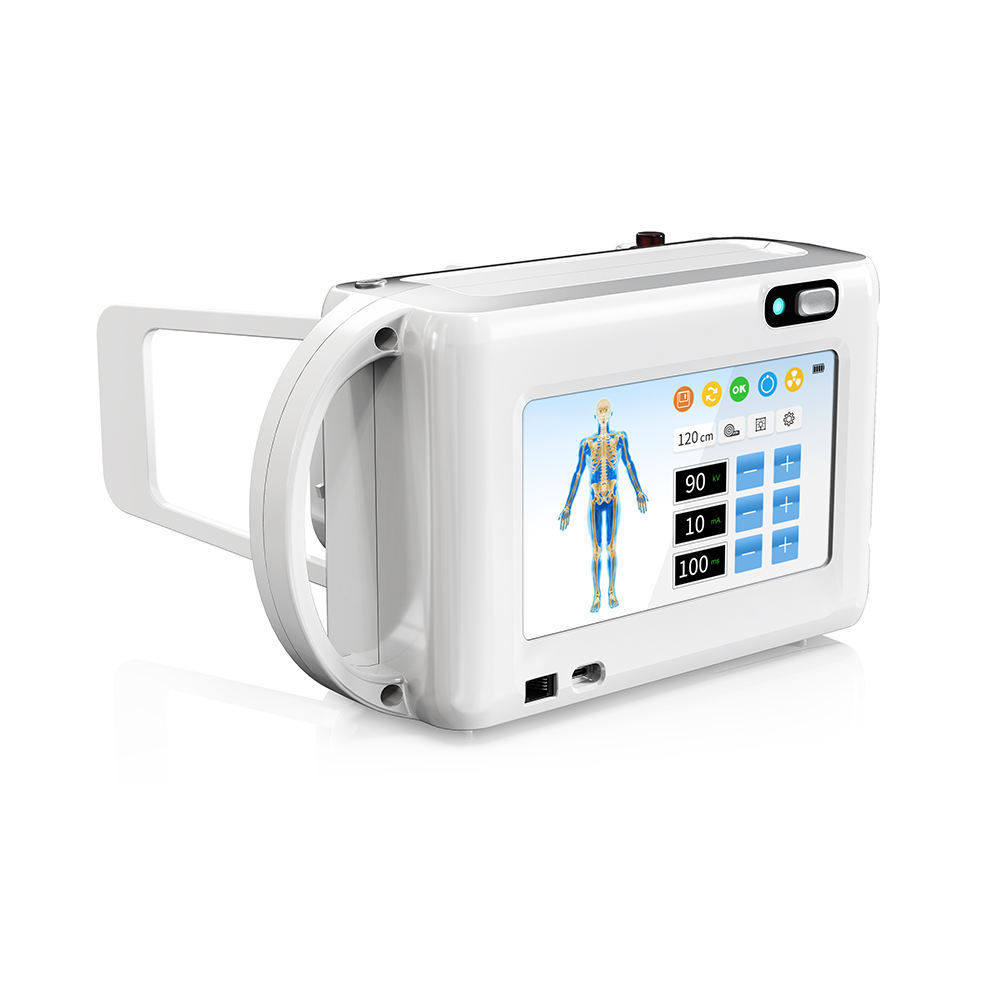

The AKX-P900W handheld X-ray unit by ArKang redefines mobility in medical imaging. Combining professional 900W output with lightweight ergonomics, this system delivers diagnostic capabilities wherever they are needed—from emergency scenes and veterinary clinics to remote medical camps. As a complete mobile X-ray unit, it supports both handheld and stand-mounted use, ensuring versatility across all point-of-care scenarios.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Key Features

True Portability: Weighing under 3kg, this mobile X-ray unit enables effortless one-handed operation and transport.
Extended Battery Life: Capable of over 150 exposures on a single charge, ideal for fieldwork and mobile clinics.
Compact & Robust Design: Dimensions of 266.4×218.4×157.7mm, built to perform in diverse environments.
Wireless Control: Remote exposure via RS232/WIFI communication for safe and flexible operation.

Wide Operational Range: Functions reliably in temperatures from -20°C to 40°C.

Technical Specifications

Parameter	Specification
Model	AKX-P900W
Nominal Power	900W
kV Range	40–90 kV
mA Range	2–10 mA
Focal Spot Size	0.8 mm
Anode Target Angle	19°
Communication	RS232 / WIFI
Operating Temperature	-20°C to 40°C
Dimensions (L×W×H)	266.4 × 218.4 × 157.7 mm
Weight	≤3 kg

Applications

This handheld mobile X-ray unit is designed for use in:

Emergency & disaster response teams
Veterinary and animal clinics
Remote and mobile medical units
Sports medicine and on-field diagnostics
Dental and orthopedic imaging
Military and humanitarian missions

Why Choose the AKX-P900W Mobile X-Ray Unit?

✅ Unmatched Mobility: Carry it like a tablet—image anywhere.
✅ Rapid Deployment: Ready to use in seconds, not minutes.
✅ No Power Constraints: Long-lasting battery supports all-day use.
✅ Clinical-Grade Performance: 900W output with fine mA/kV control.
✅ Future-Ready Connectivity: WIFI and RS232 for modern workflows.

Ordering & Shipping

Model: AKX-P900W Medical Handheld X-ray Unit
MOQ: 1 Unit
Ship From: China
Shipping Terms: Flexible options (Air, Sea, Express) tailored to customer needs

Contact Us

Experience the freedom of truly portable imaging. Contact us for pricing, demos, and custom configuration!
