Advanced Mobile ICU Ventilator AKAV-RS3

Overview & Clinical Innovation

The ArKang AKAV-RS3 represents a groundbreaking medical ventilator machine engineered to unify invasive and non-invasive ventilation capabilities in one platform. This all-in-one solution eliminates the need for multiple devices, streamlining clinical workflows and improving patient care across departments. With its high-performance turbine, intuitive interface, and robust data management, the YSAV-RS3 is built to meet the evolving demands of modern respiratory therapy and intensive care.

Key Features

1. Advanced User Interface & Display

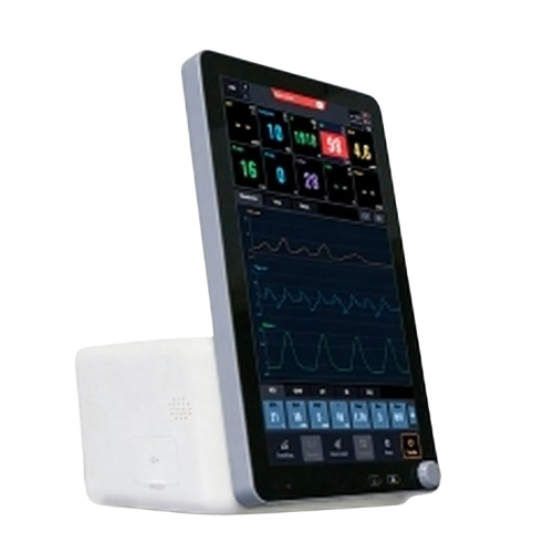

• 18.5-inch High-Definition Touch Screen: Provides crystal-clear visualization of ventilation parameters and waveforms.

• 30-Degree Rotatable Screen: Allows flexible viewing angles to suit different clinical environments and user preferences.

• Humanized UI Design: Simplifies operation and reduces training time, enhancing clinical efficiency.

• Intuitive Trend Displays: Supports data-driven decision-making with easy-to-interpret graphical trends.

• Powerful Data Storage: Capable of storing 72 hours of trending data and up to 20,000 event records.

2. Integrated Invasive & Non-Invasive Ventilation

This medical ventilator machine uniquely combines both ventilation approaches:

• Invasive Modes: VCV, PCV, PRVC, VSIMV, PSIMV, V+SIMV, CPAP/PSV, BPAP, APRV.

• Non-Invasive Modes: PCV, ST, CPAP, VS, PPS.

• Unique Single-Limb Algorithm: Accurately captures patient breathing signals for superior synchronization during non-invasive ventilation.

3. High-Performance Turbine System

• No External Air Compressor Required: Enhances mobility and reduces setup complexity.

• Long-Life Turbine: Supports up to 20,000 hours of continuous operation, ensuring durability and reliability.

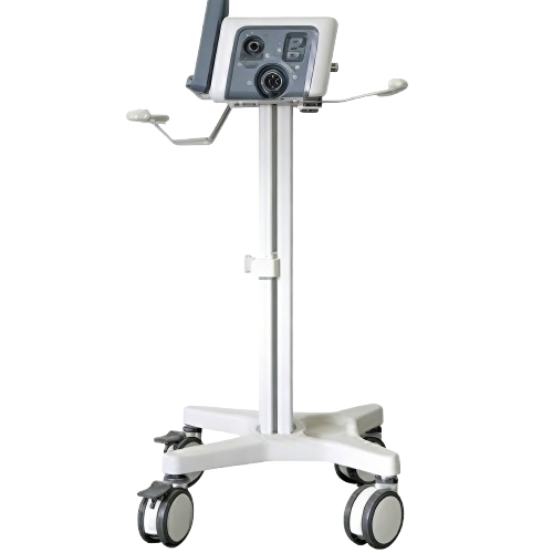

• Intra-Hospital Mobility: Compact and portable design allows easy transport between departments.

4. Optional Neonatal Ventilation Package

• Neonatal Exhalation Valve & Flow Sensor: Enables safe and precise ventilation for neonatal patients, expanding the device’s clinical applicability.

5. Special Clinical Functions

• Manual Breath

• Oxygen Therapy

• Inspiratory & Expiratory Hold

• Sigh Function

• Integrated Nebulizer

• Oxygen Suction

• PV Tool for Lung Recruitment and PEEP Titration: Aids in optimizing ventilator settings for improved patient outcomes.

6. Comprehensive Connectivity & Interfaces

• Multiple Ports: USB, NET, HDMI, VGA.

• Nurse Call Interface: Facilitates integration into hospital communication systems.

• Upgrade-Ready Software: Supports future firmware updates to maintain cutting-edge functionality.

7. Robust Construction & Safety

• Designed for Critical Care: Built to withstand rigorous clinical use while ensuring patient safety.

• Advanced Alarm & Monitoring Systems: Real-time alerts for ventilation parameters, disconnection, and system errors.

Technical Specifications Table
