Overview & Certification

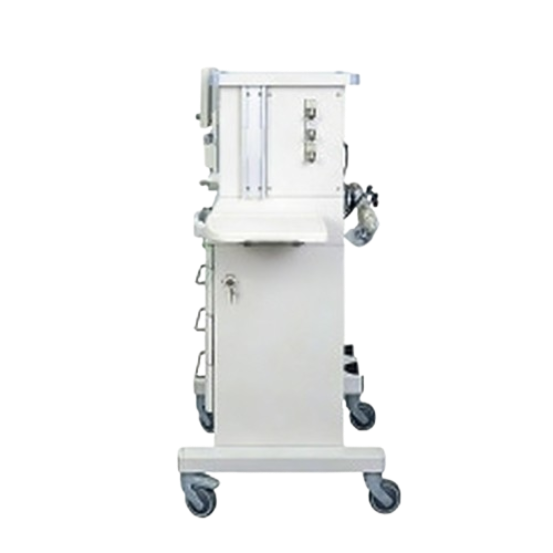

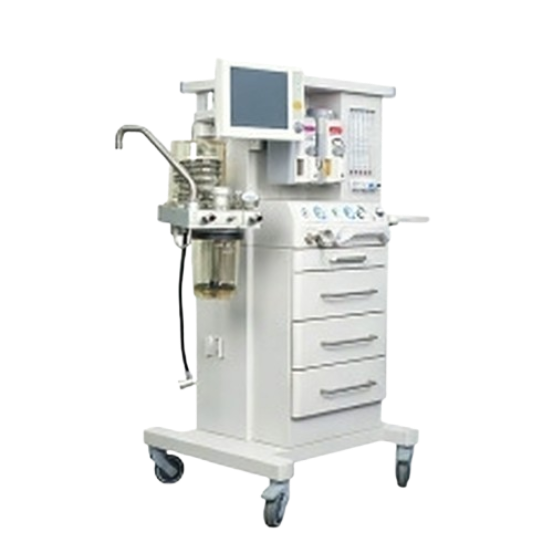

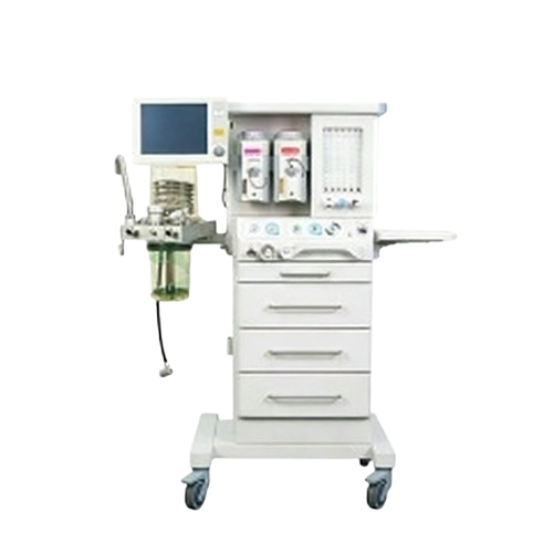

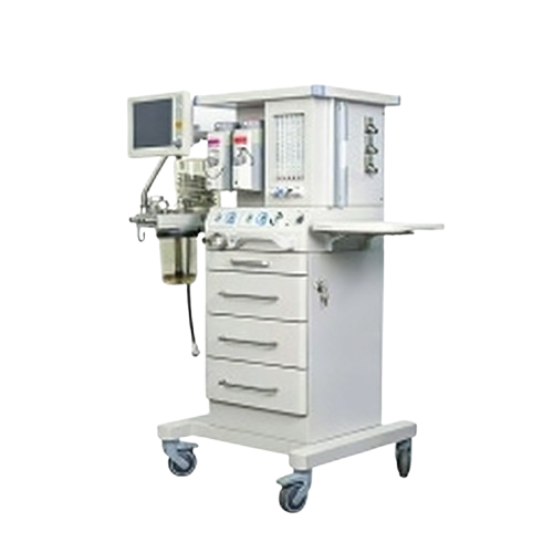

The AEONMED AEON8300A is a CE-certified anesthesia machine that complies with stringent EU clinical requirements. Engineered to deliver reliable and flexible anesthesia delivery, it integrates advanced ventilation technology, intuitive controls, and robust safety features. This anesthesia machine is designed to enhance clinical workflows while ensuring patient safety and comfort.
Key Features
1. Advanced Ventilation System
This anesthesia machine supports a range of ventilation modes to accommodate various patient needs:
-
IPPV
-
PCV
-
SIMV+PS
-
PS
-
Manual
The PCV and SIMV+PS modes offer exceptional flexibility, making this anesthesia machine suitable for both pediatric and adult operations. Ventilation parameters are easily adjustable via touch keys and a navigator wheel knob.
2. High-Resolution Display & Monitoring
Equipped with a 10.4-inch TFT color screen, this anesthesia machine provides clear visualization of real-time parameters including:
-
Pressure: Ppeak, Pplat, Pmean, PEEP
-
Volumes: MV, Vt, Frequency
The display supports intuitive navigation and monitoring, allowing clinicians to make informed decisions quickly.
3. Precision Gas Delivery & Safety
The anesthesia machine includes a high-precision flowmeter system with backlight for easy reading. Gas flow ranges include:
-
O₂: 0–1 L/min; 1–10 L/min
-
N₂O: 0–1 L/min; 1–10 L/min
-
Air: 0–1 L/min; 1–10 L/min
-
Auxiliary O₂: 0–12 L/min
Safety features include oxygen supply failure alarm, N₂O-cut-off system, and O₂ flush (25–75 L/min). The system ensures at least 25% oxygen concentration in O₂/N₂O mixtures.
4. Autoclavable Breathing System
The breathing system is fully autoclavable (except O₂ cell and mechanical pressure gauge), easy to remove and clean, and supports closed, semi-closed, and semi-open operational modes. An optional CO₂ bypass is available for enhanced flexibility.
5. Enhanced Usability & Accessories
This anesthesia machine is designed for enhanced usability with options including:
6. Patient Safety & Compensation
The anesthesia machine includes compliance and leakage compensation, fresh gas compensation, and altitude compensation. Trigger sensitivity ranges from 1–15 L/min, ensuring responsive patient-triggered ventilation.
