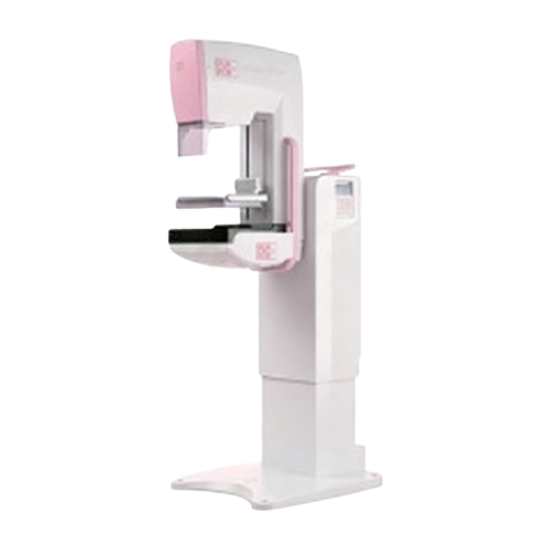

The ArKang AKX-DM300 represents the cutting edge in digital breast imaging technology. This state-of-the-art mammography machine features a high-resolution amorphous silicon detector (24×30cm) and sophisticated imaging capabilities designed for early and accurate breast cancer detection. With its comprehensive range of clinical features and patient-friendly design, this mammography machine delivers exceptional diagnostic performance for screening and diagnostic mammography applications.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Technical Specifications

Parameter	Specification
Model	AKX-DM300
Detector Type	Amorphous Silicon + CSI
Effective Imaging Area	24cm × 30cm
Pixel Size	85µm
Image Matrix	2816 × 3528 pixels
Spatial Resolution	>6 lp/mm
High Voltage Generator	≥100 kHz, 4 kW output
Tube Voltage Range	20-40 kV (1 kV steps)
Tube Options	Molybdenum (Standard) / Tungsten (Optional)
Focal Spot Sizes	0.1 mm (Small) / 0.3 mm (Large)
C-arm Rotation	-135° to +180° (Isocentric)
Compression Force	0-200 N
Height Range	750-1330 mm
System Weight	240 kg
Power Supply	220V±10%, 50/60Hz

Key Features & Benefits

Superior Imaging Quality

High-Resolution Detector: Amorphous silicon detector with 85µm pixel size delivers exceptional image clarity and detail for accurate diagnosis
Advanced X-Ray Tube: Imported mammography tube with dual focal spots (0.1mm/0.3mm) ensures sharp imaging with minimal geometric distortion
Flexible Filtration System: Manual/automatic selection of Mo/Rh/Ag filters optimizes image quality for various breast densities and compositions

Enhanced Patient Comfort & Safety

Intelligent Compression: Multi-level smart compression system with flexible compression plates (0-200N force) ensures patient comfort while maintaining image quality
Comprehensive Safety Features: Emergency stop button, automatic decompression, and collision protection system prioritize patient safety during examinations
Optimized Positioning: Isocentric C-arm rotation (+180° to -135°) with preset positions (CC, OBL, LAT) facilitates comfortable patient positioning and reproducible imaging

Operational Excellence

Automated Workflow: Integrated Automatic Exposure Control (AEC) automatically selects optimal kV, filter, and mAs based on breast thickness and tissue density
Dual-Side Operation: Local control panels on both sides of the unit display critical parameters including compression force, thickness, and technical factors
Versatile Installation: Compact design (height <1.1m) enables installation in mobile medical vehicles or clinics with limited space

Advanced Digital Capabilities

Rapid Image Acquisition: Image reading duration <1.4 seconds with <30-second interval between exposures for efficient patient throughput
Comprehensive Workstation: Intel-based acquisition station with DICOM 3.0 compatibility, image processing tools, and patient management software
Grid Technology: Movable anti-scatter grid (5:1 ratio, 41 L/cm density) improves image contrast in standard imaging mode

Clinical Applications

Screening mammography for asymptomatic women
Diagnostic mammography for symptomatic patients
Pre-operative localization and planning
Follow-up examinations for breast cancer survivors
Evaluation of breast implants and augmented breasts

Why Choose the AKX-DM300 Mammography Machine?

This advanced mammography machine combines sophisticated imaging technology with practical clinical design to meet the demands of modern breast care centers. The AKX-DM300's exceptional image quality, patient-friendly features, and efficient workflow make it an ideal choice for both high-volume screening programs and comprehensive diagnostic services. Its compliance with international standards and robust construction ensure reliable performance in diverse healthcare settings.

Shipping & Ordering Information

Minimum Order Quantity (MOQ): 1 Unit
Shipping From: Guangzhou, China
Shipping Terms: Flexible options tailored to customer requirements
