Technical Specifications
Key Features & Benefits
Advanced Imaging Performance
-
High-Frequency Generator: 80kHz complete solid-state generator ensures stable output and consistent imaging quality, making this Mammogram Machine reliable for high-volume clinical use
-
Dual-Focus X-Ray Tube: IAE C339V tube with 0.1/0.3mm focal spots and molybdenum target delivers sharp, detailed images for accurate microcalcification detection
-
High-Resolution Detector: Amorphous silicon detector with 85μm pixel size and 14-bit dynamic range provides exceptional contrast resolution for differentiating subtle tissue variations
Enhanced Patient Comfort
-
Automated Compression System: Smart compression with automatic release after exposure reduces discomfort while maintaining optimal breast positioning for diagnostic accuracy
-
Flexible Positioning: U-arm rotation (+90° to -90°) with 560mm vertical movement facilitates comfortable patient positioning for various projections
-
Optimized Geometry: 650mm source-to-image distance (SID) ensures minimal geometric distortion and improved image quality
Operational Efficiency
-
Streamlined Workflow: One-key automatic return function and automated compression release enhance throughput, making this Mammogram Machine ideal for busy imaging centers
-
Powerful Workstation: Intel Core Duo 3.0GHz processor with ≥8GB RAM and specialized DMOC V1.0 software supports rapid image processing and analysis
-
DICOM Compatibility: Full DICOM 3.0 support enables seamless integration with existing hospital information systems and PACS
Technical Excellence
-
Superior Resolution: Spatial resolution of 6.0 Lp/mm ensures capability to detect minute calcifications and subtle architectural distortions
-
Robust Heat Management: Anode heat storage capacity of 225KJ (300KHU) supports extended clinical sessions without performance degradation
-
Precision Filtration: Molybdenum filtration (0.03mm) optimizes beam quality for enhanced soft tissue contrast in mammographic imaging
Clinical Applications
-
Routine screening mammography for early breast cancer detection
-
Diagnostic mammography for symptomatic patients
-
Evaluation of breast abnormalities detected by physical examination or other imaging modalities
-
Follow-up studies for patients with personal history of breast cancer
-
Pre-operative localization and surgical planning

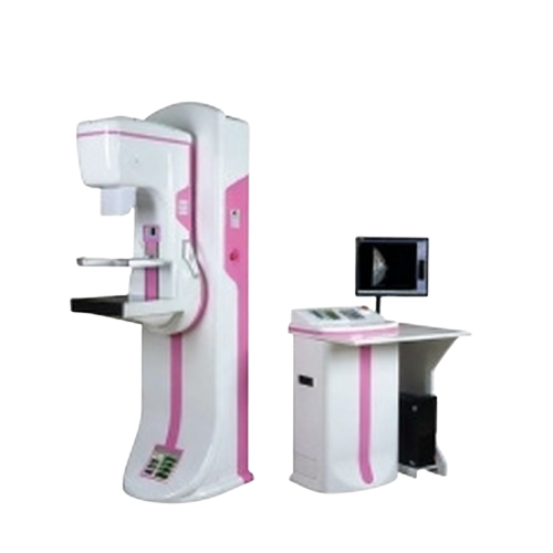

Why Choose the AKX-DM600 Mammogram Machine?
This advanced Mammogram Machine combines cutting-edge technology with practical clinical design to meet the demanding requirements of modern breast imaging centers. The AKX-DM600's exceptional image quality, patient-friendly features, and efficient workflow make it an outstanding choice for healthcare providers committed to excellence in breast care. Its robust construction and reliable performance ensure years of dependable service in both high-volume screening programs and comprehensive diagnostic facilities.
Shipping & Ordering Information
-
Minimum Order Quantity (MOQ): 1 Unit
-
Shipping From: Guangzhou, China
-
Shipping Terms: Flexible options tailored to customer requirements
