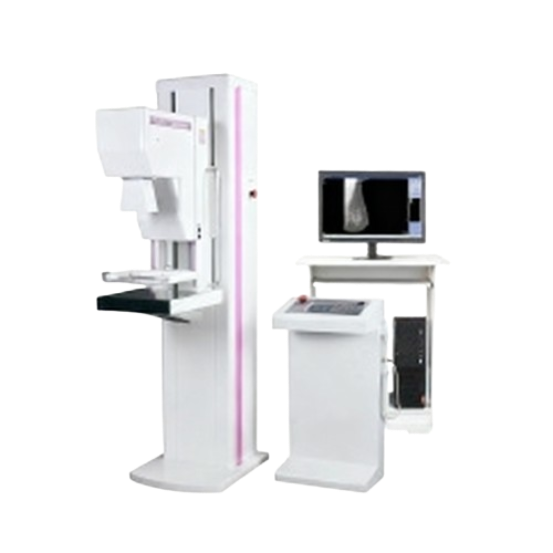

The ArKang AKX-DM98B is a advanced digital mammogram machine designed to deliver high-quality imaging for breast cancer screening and diagnosis. Combining an 80kHz high-frequency generator with a high-resolution amorphous silicon detector, this system offers exceptional image clarity and diagnostic confidence. Engineered for both performance and patient comfort, the YSX-DM98B mammogram machine is an ideal solution for clinics and imaging centers seeking reliable, cost-effective breast imaging technology.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Technical Specifications

Component	Specification
Model	AKX-DM98B
X-ray Generator	High-frequency Inverter (80kHz), 6.2kW
Tube Voltage Range	20-35kV
X-ray Tube	LR01, Dual Focus (0.2/0.4mm), Molybdenum Target
Detector	Amorphous Silicon, 24cm×30cm
Pixel Matrix	2816×3528
Spatial Resolution	6.0 Lp/mm
U-arm Rotation	+90° to -90°
Compression Force	Max. 200N
SID	650mm
Power Supply	220VAC, Single Phase

Key Features & Benefits

Advanced Imaging Performance

High-Frequency Generator: 80kHz inverter technology ensures stable and consistent X-ray output, making this mammogram machine reliable for daily clinical use with minimal radiation dose
Precision X-Ray Tube: Features a domestic LR01 tube with dual focal spots (0.2/0.4mm) and molybdenum target, providing clear visualization of breast tissue structures and microcalcifications
High-Resolution Detector: Amorphous silicon detector with 85μm pixel size and 14-bit dynamic range delivers excellent image contrast and detail for accurate diagnosis

Enhanced Patient Comfort

Automated Compression Release: The compression system automatically releases after exposure, reducing patient discomfort and anxiety during the examination
Flexible Positioning: U-arm with 590mm vertical movement and ±90° rotation enables comfortable patient positioning for various mammographic projections
Optimized Imaging Geometry: 650mm source-to-image distance (SID) ensures minimal geometric distortion and improved image quality

Operational Efficiency

User-Friendly Workstation: Intel Core Duo 3.0GHz processor with ≥8GB RAM and specialized DMOC V1.0 software supports efficient image acquisition and processing
DICOM Compatibility: Full DICOM 3.0 support with Gigabit Ethernet enables seamless integration with hospital information systems and PACS networks
Ample Storage Capacity: ≥1TB high-speed hardware provides sufficient storage for patient images and data management

Reliable Performance

Adequate Heat Capacity: Anode heat storage of 80kJ (110kHU) supports continuous clinical operation without performance degradation
Precision Filtration: Molybdenum filtration (0.03mm) optimizes beam quality for enhanced soft tissue contrast in mammographic imaging
Compact Design: Efficient space utilization makes this mammogram machine suitable for various clinical environments

Clinical Applications

Routine screening mammography for early breast cancer detection
Diagnostic evaluation of symptomatic patients
Follow-up studies for abnormal screening results
Assessment of breast pain, lumps, or nipple discharge
Pre-operative localization and surgical planning

Why Choose the AKX-DM98B Mammogram Machine?
This mammogram machine represents an excellent balance of performance, reliability, and value. The AKX-DM98B's combination of advanced imaging technology, patient-friendly features, and efficient workflow makes it an outstanding choice for healthcare providers establishing or expanding breast imaging services. Its robust construction and dependable performance ensure years of consistent service in various clinical settings, from private practices to community health centers.

Shipping & Ordering Information

Minimum Order Quantity (MOQ): 1 Unit
Shipping From: Guangzhou, China
Shipping Terms: Flexible options tailored to customer requirements
