Technical Specifications
Key Features & Benefits
Exceptional Imaging Performance
-
High-Resolution Detector: Amorphous silicon detector (24×30cm) delivers excellent image quality with outstanding contrast resolution, making this mammography machine ideal for detecting subtle tissue variations and microcalcifications
-
Superior Spatial Resolution: Capability exceeding 15 Lp/mm ensures this mammography machine can visualize the finest anatomical details critical for early breast cancer detection
-
Precision X-Ray Tube: Imported IAE tube from Italy with dual focal spots (0.1mm/0.3mm) and rotating anode technology provides sharp, detailed images with minimal geometric unsharpness
Advanced Compression System
-
Intelligent Compression Control: Foot pedal operation with two-speed soft compression and emergency release key ensures patient comfort while maintaining optimal breast positioning
-
Precise Pressure Management: Adjustable compression force (0-20kg in 1kg steps) with ±20N accuracy allows customized compression for each patient's needs
-
Wide Compatibility: Accommodates breast thickness from 0-268mm, making this mammography machine suitable for diverse patient populations
Operational Excellence
-
Flexible Positioning: ISO center rotation with +180° to -135° range and height adjustment (750-1330mm) facilitates comfortable patient positioning for all standard mammographic views
-
Multiple Exposure Modes: Manual, AEC, and AAEC (Automatic Automatic Exposure Control) options provide flexibility for various clinical scenarios and operator preferences
-
Automatic Filtration: Switch between 0.03mm Molybdenum and 0.5mm Aluminum filters automatically for optimized beam quality based on breast density
Technical Superiority
-
High-Frequency Generator: 40kHz generator technology ensures stable output and consistent imaging performance, enhancing the reliability of this mammography machine
-
Robust Thermal Capacity: 320KJ anode thermal capacity supports high-volume clinical workflow without performance degradation
-
Magnification Capability: 1.4× to 1.6× magnification ratio enables detailed evaluation of suspicious areas when required
Clinical Applications
-
Routine screening mammography for early breast cancer detection
-
Diagnostic mammography for symptomatic patients and abnormal screening follow-up
-
Pre-operative localization and surgical planning
-
Evaluation of breast implants and augmented breasts
-
Comprehensive breast imaging in hospital and outpatient settings

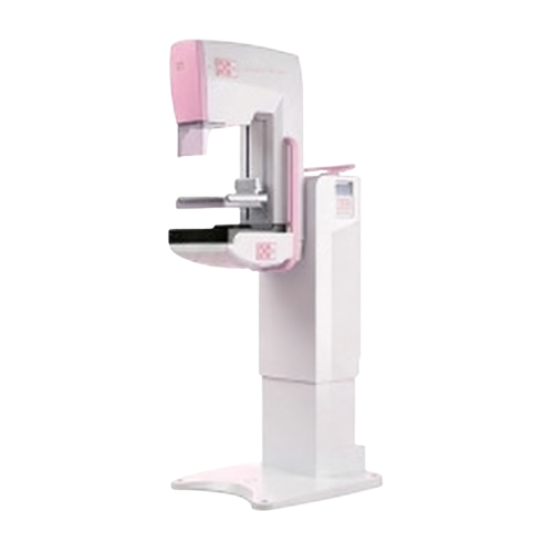

Why Choose the AKX-M300 Mammography Machine?
This advanced mammography machine combines cutting-edge digital technology with practical clinical design to meet the demanding requirements of modern breast imaging. The AKX-M300's exceptional image quality, patient-friendly features, and efficient workflow make it an outstanding investment for healthcare providers committed to excellence in breast care. Its robust construction and reliable performance ensure years of dependable service in both high-volume screening programs and comprehensive diagnostic facilities.
Shipping & Ordering Information
-
Minimum Order Quantity (MOQ): 1 Unit
-
Shipping From: Guangzhou, China
-
Shipping Terms: Flexible options tailored to customer requirements
