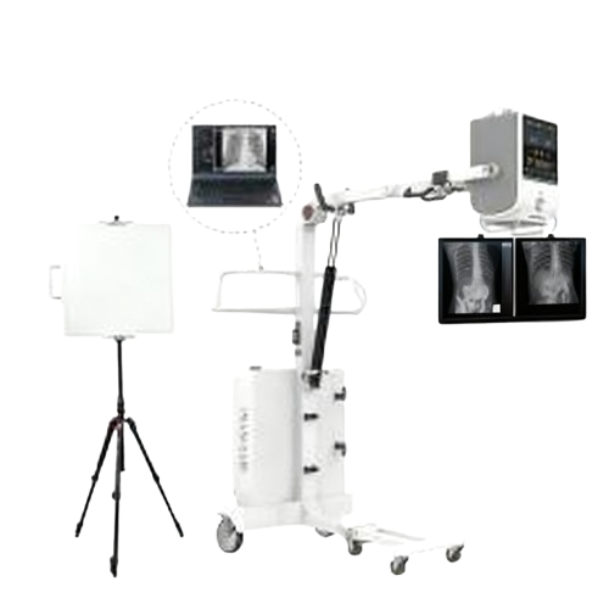

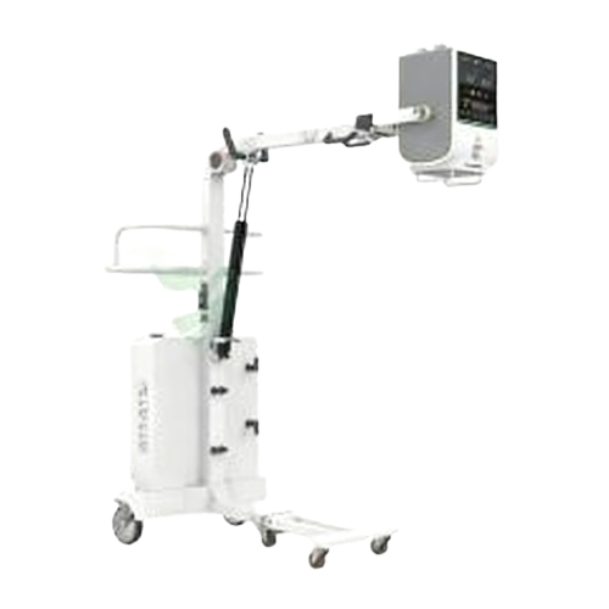

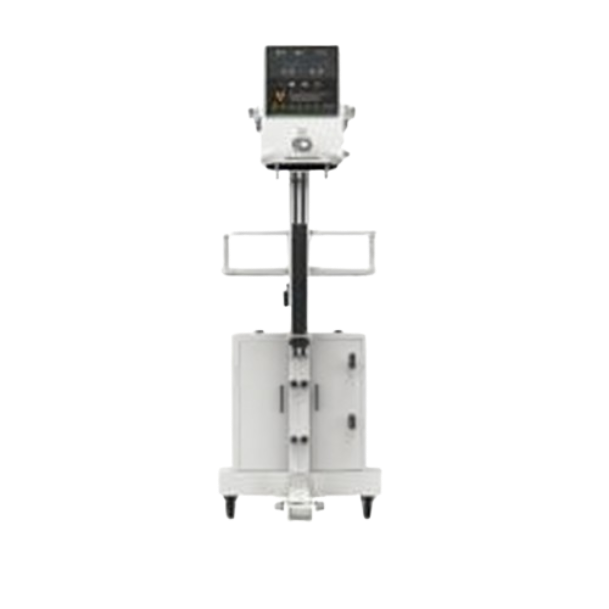

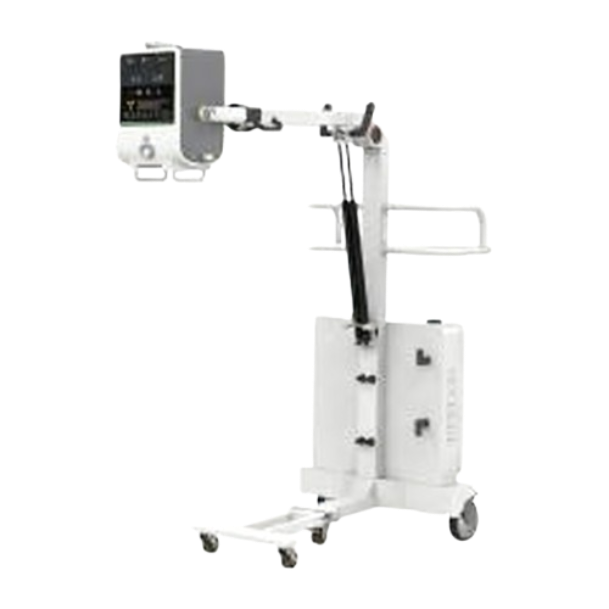

Digital Mobile Radiography System AKX-mDR5A

Key Features

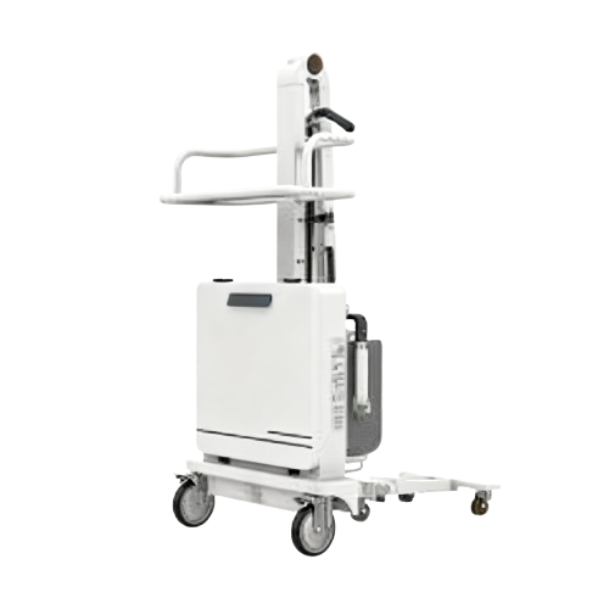

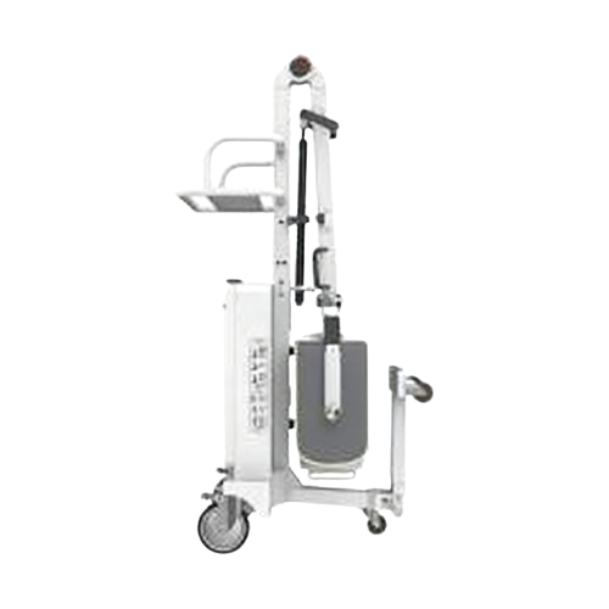

• Space-Saving Compact Design – Foldable structure with minimal storage footprint (fits under shelves/corners)

• Integrated Ultrasonic SID Detection – Automatically measures body distance for quick, optimal positioning

• Advanced Wireless Detector – 17"×17" a-Si flat panel with CsI scintillator, 139μm pixel pitch, and 16-bit ADC

• Multi-Connectivity Options – Wired, Wireless, WIFI, Bluetooth, and RS232 communication

• Exceptional Mobility – Lightweight, compact movement mode ideal for crowded spaces and transport vehicles

• Cost-Effective Operation – Affordable pricing with low maintenance requirements




  ---

  Technical Specifications



  X-Ray Generator (Model: AKX05s-A)

  Parameter	Specification
  Power Supply	AC 220V/110V
  Power Output	5 kW
  kV Range	40–125 kV
  mA Range	10–100 mA
  mAs Range	0.1–100 mAs
  Exposure Time	1–2000 ms
  Focal Spot	0.6 mm / 1.8 mm
  Target Angle	15°
  Anode Heat Storage	30 kJ
  SID Measurement	Ultrasonic
  Communication	RS232/Bluetooth/Hand Switch/315M

  Digital Detector (Model: AKFPD-M1717V)

  Parameter	Specification
  Detector Technology	a-Si with direct deposition CsI
  Active Area	17" × 17"
  Pixel Matrix	3072 × 3072
  ADC	16-bit
  Pixel Pitch	139 μm
  Spatial Resolution	3.6 lp/mm
  Final Image Time	5 seconds
  Dimensions	460 × 460 × 15 mm
  Weight	4.6 kg
  Wireless	2.4G and 5G dual-band

  Optional Detector (Model:AKFPD-M1417V)

  Parameter	Specification
  Active Area	14" × 17"
  Pixel Matrix	2304 × 2800
  Pixel Pitch	150 μm
  Spatial Resolution	3.4 lp/mm
  Weight	3.3 kg





  ---

  Advanced Technology

  • Ultrasonic SID Measurement – Automatically detects and adjusts source-to-image distance

  • Wireless Cassette Detector – ISO 4090 compliant, fits standard bucky

  • Dual-Band Wireless – 2.4GHz and 5GHz support for reliable connectivity

  • Automatic Exposure Detection (AED) – iSync+ technology for consistent exposure

  • Long Battery Life – Extended operation for high-volume workflow




  ---

  Clinical Applications

  • General Wards – Quick patient imaging with superb image quality

  • Isolation Wards – Prevents cross-infection with bedside imaging capability

  • ICU – Critical patient bedside radiography without movement

  • Operating Rooms – Intraoperative imaging for surgical support

  • Mobile Medical Vehicles – Fixed or mobile installation for field use

  • Emergency & Rescue – Rapid deployment for emergency situations

  • Home Visits – Portable solution for community healthcare

  • Military Hospitals – Field-deployable for military medical operations




  ---

  Why Choose the AKX-mDR5A?

  ✅ Ultimate Space Efficiency – Foldable design saves valuable clinical space
  ✅ Advanced Positioning – Ultrasonic SID measurement ensures optimal imaging geometry
  ✅ Professional Image Quality – High-resolution detector with excellent contrast and detail
  ✅ Exceptional Versatility – Suitable for fixed installation or mobile field use
  ✅ User-Friendly Operation – Simple workflow with automatic features
  ✅ Cost-Effective Solution – Professional performance at an affordable price point




  ---

  System Advantages

  • Rapid Deployment – Quick setup and positioning for emergency situations

  • Infection Control – Minimizes patient transport and cross-contamination risks

  • Workflow Efficiency – Fast imaging cycle and wireless operation

  • Transport Flexibility – Easily loaded into vehicles for mobile medical services

  • Storage Convenience – Compact folded size for space-constrained environments




  ---

  Ordering & Shipping

  • Model: AKX-mDR5A Digital Mobile Radiography System

  • Certification: CE Certified

  • MOQ: 1 Unit

  • Ship From:China

  • Shipping: Flexible options tailored to customer requirements




  ---

  Contact Information

  Transform your medical imaging capabilities with the compact and versatile AKX-mDR5A. Contact us today for pricing, detailed specifications, and demonstration arrangements!
