Key Features
✅ True Portability: At just 4.1kg, this digital ultrasound machine is one of the lightest and most compact systems available, perfect for on-the-go use.
✅ High-Resolution Imaging: Features a 12-inch TFT color LCD display with 256-level grayscale and multiple display modes (B, B+B, B+M, M, 4B) for clear, detailed images.
✅ Multi-Probe Compatibility: Supports convex (3.5MHz), linear (7.5MHz), micro-convex (5.0MHz), and transvaginal (6.5MHz) probes for a wide range of applications.
✅ Advanced Image Processing: Includes THI, image smoothing, gamma adjustment, zoom, and cine loop (≥500 frames) for enhanced diagnostic accuracy.
✅ Long Battery Life: Built-in rechargeable battery allows for cordless operation, increasing flexibility in various clinical settings.
✅ Comprehensive Connectivity: Equipped with USB, VGA, and video ports for easy data export, printing, and external display connections.
Technical Specifications
-
Display: 12-inch TFT color LCD
-
Display Modes: B, B+B, B+M, M, 4B
-
Grayscale: 256 levels
-
Cine Loop: ≥500 frames
-
Image Storage: 64 images
-
Scan Depth: 40mm~240mm (adjustable)
-
Probes:
-
Convex: 3.5MHz/R60
-
Linear: 7.5MHz/L40
-
Micro Convex: 5.0MHz/R20
-
Transvaginal: 6.5MHz/R13
-
Power Supply: AC 110-240V, 50/60Hz + rechargeable battery
-
Weight: 4.1kg
Dimensions: 330mm×245mm×56mm
Applications
This digital ultrasound machine is perfect for:
-
Emergency and critical care
-
Primary care and family medicine
-
Obstetrics and gynecology
-
Abdominal and small organ imaging
-
Veterinary medicine
Mobile medical units and rural healthcare
Standard Configuration
Rechargeable battery
Optional Accessories
-
Transvaginal probe (6.5MHz/R13)
-
Linear probe (7.5MHz/L40)
-
Micro convex probe (5.0MHz/R20)
-
Trolley cart
-
Biopsy brackets
SONY video printer
Why Choose This Digital Ultrasound Machine?

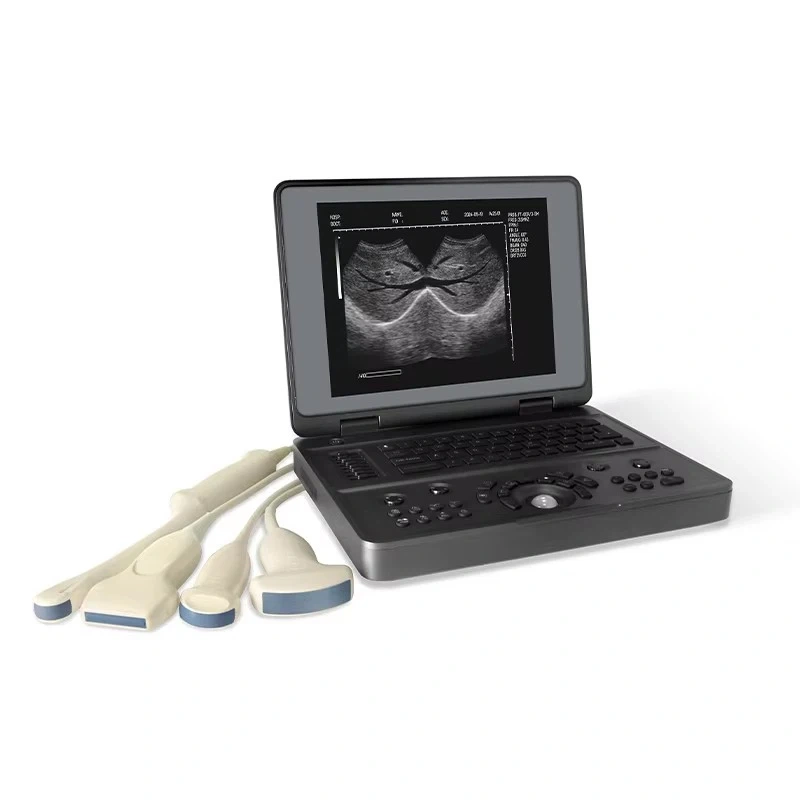

The AKB3000W CarryScan digital ultrasound machine offers an unmatched combination of portability, performance, and affordability. Whether you need a reliable imaging solution for your clinic, hospital, or field operations, this system provides the features and flexibility required for modern medical practice. Its user-friendly design, excellent image quality, and versatile probe options make it an invaluable tool for healthcare professionals worldwide.
