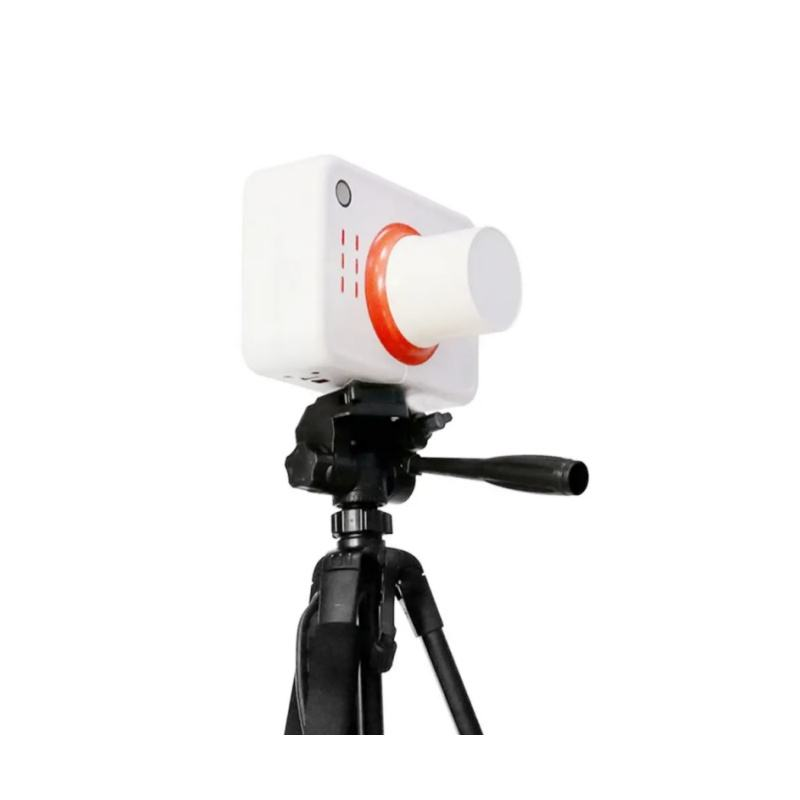

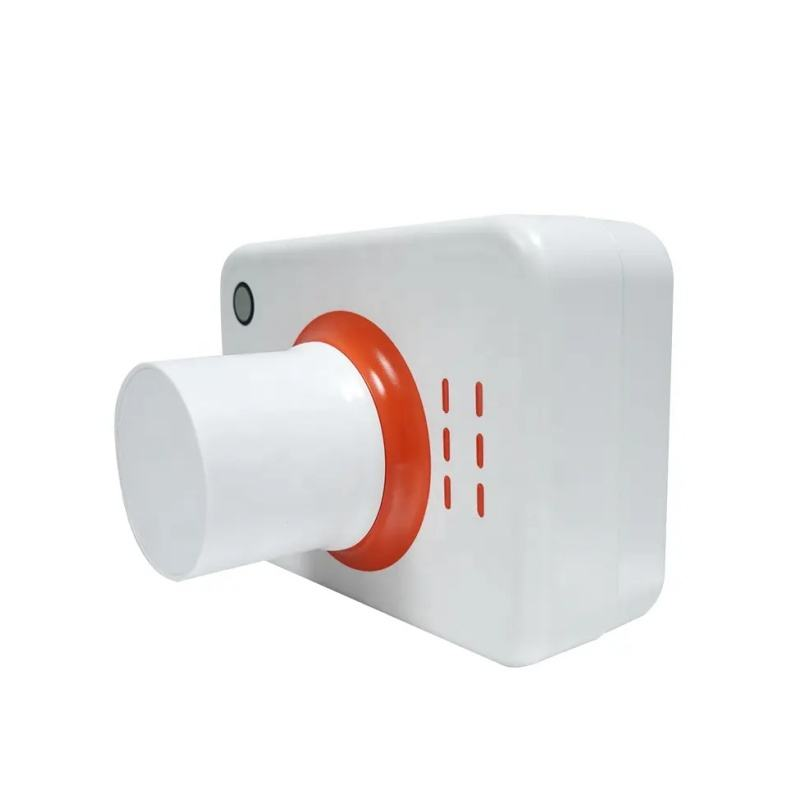

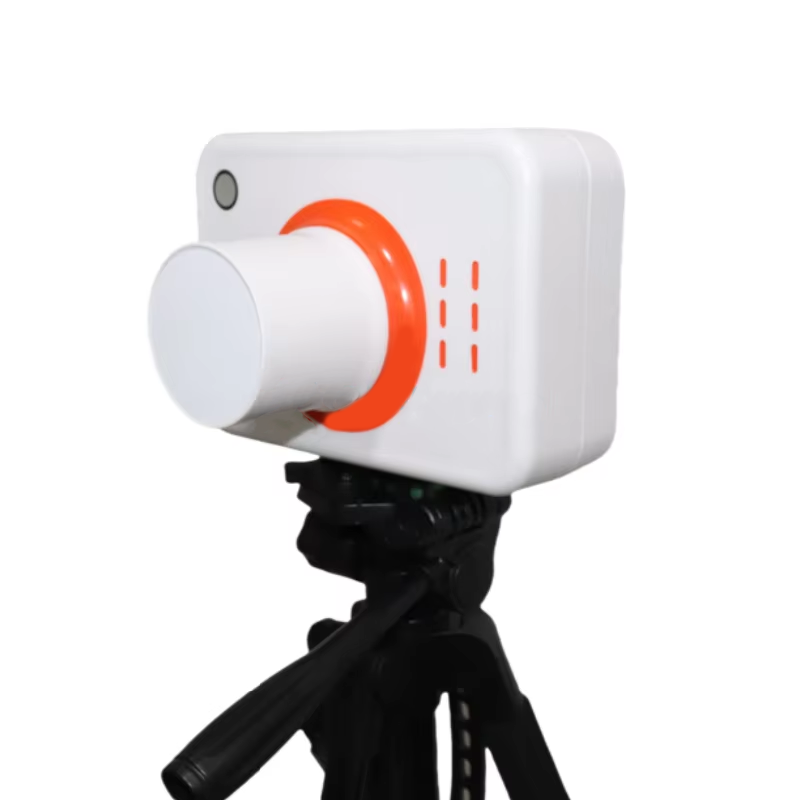

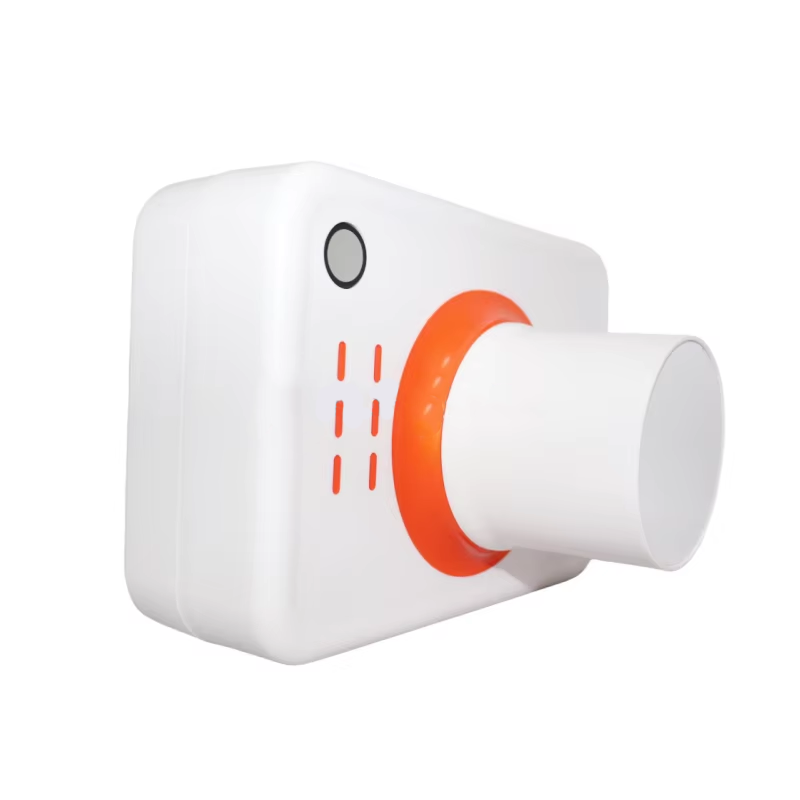

Handheld High-Frequency X-ray Machine AKX-Mini2

Key Features

• Ultra-Lightweight Design – Weighing only 1.6kg for true one-handed operation and effortless portability

• High-Frequency Technology – 100kHz working frequency ensures stable output and consistent imaging quality

• Large Battery Capacity – Extended operation with reliable power for multiple examinations

• High-Resolution Imaging – Compatible with 17×17 inch detector offering 3.7lp/mm spatial resolution

• Flexible Exposure Control – Adjustable kV (40-70kV), mA (1-8mA), and exposure time (0.01-4.0s)

• Professional Workstation – Intel i5 processor with multi-language medical software for seamless workflow



  Technical Specifications

  Parameter	Specification
  Model	AKX-Mini2
  Power	360W
  Power Supply	110~220VAC ±10%, 50/60Hz
  Working Frequency	100kHz
  kV Range	40–70 kV
  mA Range	1–8 mA
  Exposure Time	0.01–4.0 s
  mAs Range	0.01–10 mAs
  Exposure Mode	Keys / Remote Control
  Weight	1.6 kg





  ---

  Digital Imaging System

  • Detector Size: 17×17 inch

  • Pixel Resolution: 3040×3036 (9.2 million pixels)

  • Pixel Pitch: 140μm

  • Cycle Time: 6 seconds

  • A/D Conversion: 16-bit

  • Spatial Resolution: 3.7 lp/mm

  • Interface: Wired connection

  • Software: Professional medical software with multi-language support




  ---

  Workstation Configuration

  • Intel i5 Processor

  • 8GB Memory

  • 2GB Graphics Card

  • 128GB SSD Storage

  • PCI-E Interface

  • R232 Communication

  • Custom configurations available upon request




  ---

  Applications

  • Veterinary Medicine & Animal Clinics

  • Dental Practices & Oral Surgery

  • Emergency Medicine & First Response

  • Sports Medicine & Field Diagnostics

  • Mobile Medical Units & Remote Clinics

  • Industrial NDT (Non-Destructive Testing)




  ---

  Why Choose the AKX-Mini2?

  ✅ Exceptional Portability – Lighter than most laptops, goes anywhere
  ✅ Rapid Workflow – 6-second cycle time enables high patient throughput
  ✅ Diagnostic Quality – High-resolution imaging with professional-grade detail
  ✅ Versatile Power Options – Compatible with global voltage standards
  ✅ User-Friendly Operation – Simple controls with remote exposure capability
  ✅ Complete System – Includes professional workstation and software



  ---

  Ordering & Shipping

  • Model: AKX-Mini2 Handheld High-Frequency X-ray Machine

  • MOQ: 1 Unit

  • Ship From: China

  • Shipping: Flexible options tailored to customer requirements




  ---

  Contact US

  Experience the future of portable imaging with the YSX-Mini2. Contact us today for pricing, demonstrations, and custom configuration options!
