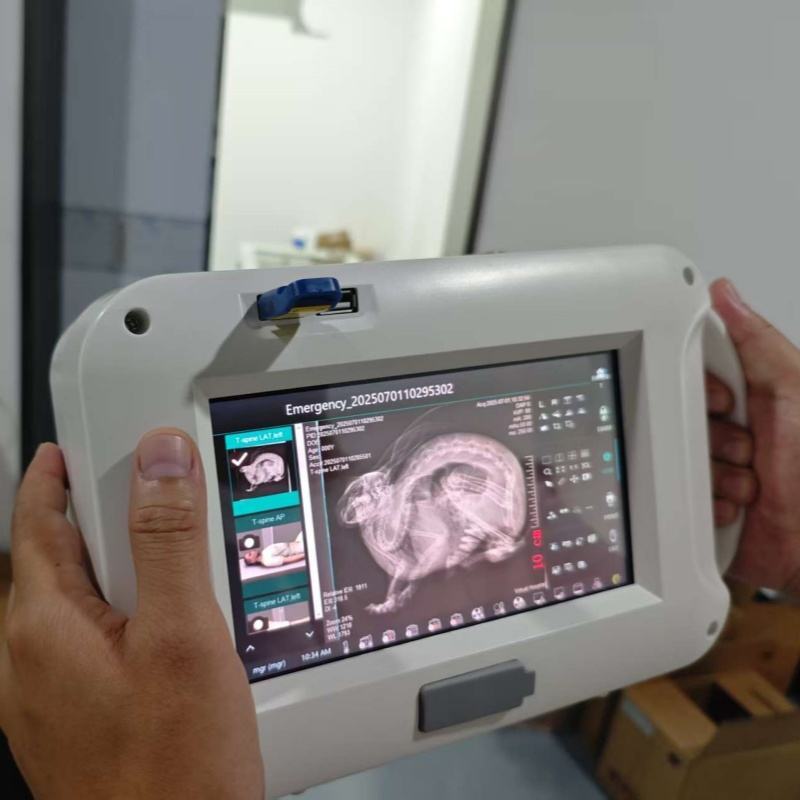

Handheld X-ray Machine AKX-Mini1

Key Features

• Ultra-Compact Design: 288×268×168mm dimensions with integrated hand strap for ultimate portability (3.2kg)

• Built-in Workstation: Features Intel processor with Windows OS and pre-loaded DB software for immediate operation

• Wireless Operation: Complete battery-powered system with superior battery performance and 120V charging

• 7-inch Touch Screen: High-definition (1024×600) LCD display for on-device image review and control

• Remote Support Ready: Pre-installed TeamViewer software for instant technical assistance

• Low Radiation Dose: Minimized exposure to both patient and operator while maintaining image quality




  ---

  Technical Specifications

  Parameter	Specification
  Dimensions	288 × 268 × 168 mm
  Weight	3.2 kg (±25%)
  Display	7-inch LCD Touch Screen (1024×600)
  Input Voltage	220V ±10% AC, 50Hz
  kV Range	50–70 kV (1kV steps)
  mA Range	1–5 mA (1mA steps)
  Exposure Time	0.03–0.5s (0.01s steps) 0.26–2.00s (0.05s steps)
  X-ray Tube	CEOS/W70-3
  Focal Spot	0.3–0.5 mm





  ---

  System Configuration

  • Integrated Workstation: Intel processor with Windows OS

  • Connectivity: Two USB ports, Ethernet port, charging port

  • Software: Professional medical imaging software with remote support capability

  • Power: Rechargeable battery with 120V residential charging

  • Accessories: Carrying case, laser light, hand switch, collimator, Bluetooth mouse




  ---

  Clinical Applications

  • Emergency Rooms & Urgent Care

  • Operating Rooms & Surgical Centers

  • Orthopedic Departments & Sports Medicine

  • ICU & Neonatal Care Units

  • Nursing Homes & Long-term Care Facilities

  • Dental Practices & Outpatient Clinics

  • Veterinary Hospitals & Animal Clinics

  Application Scope: Limited to X-ray diagnosis of limbs and chest. Not suitable for mammography.




  ---

  Why Choose the AKX-Mini1?

  ✅ Complete All-in-One System – Integrated workstation eliminates need for additional equipment
  ✅ Immediate Operation – No installation required, ready to use out of the box
  ✅ Superior Portability – Lightweight design with carrying case for true mobility
  ✅ Enhanced Workflow – Wireless image acquisition and review directly on device
  ✅ Cost-Effective Solution – Eliminates dedicated room requirements and complex installations
  ✅ Future-Ready Platform – Compatible with optional wireless flat panel detectors




  ---

  What's Included

  • AKX-Mini1 Main Unit with Integrated Workstation

  • Carrying Case for Transport and Storage

  • Laser Positioning Light

  • Hand Switch for Remote Exposure

  • Battery Charger

  • Collimator

  • Bluetooth Mouse

  • Windows 10 Accessories




  ---

  Ordering & Shipping

  • Model: AKX-Mini1 Handheld X-ray Machine

  • MOQ: 1 Unit

  • Ship From: China

  • Shipping: Flexible options tailored to customer requirements worldwide




  ---

  Contact US

• Transform your medical imaging capabilities with the ultimate portable X-ray solution. Contact us today for pricing, demonstrations, and configuration options!
