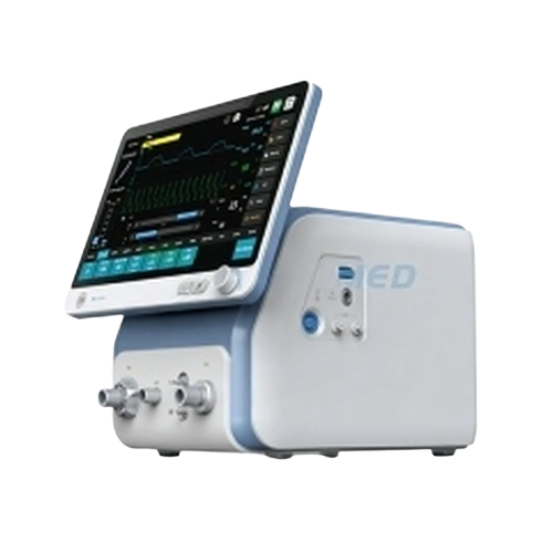

HFO High Frequency Ventilator AKAV-CV7

Overview & Clinical Innovation

The ArKang AKAV-CV7 is a pneumatically and electronically controlled medical ventilator that unifies five critical ventilation modalities into one intelligent system. Designed to support premature infants, neonates, and pediatric patients, this medical ventilator reduces device clutter, simplifies clinical workflows, and enhances patient safety through advanced monitoring, low-stress operation, and transport-ready mobility. Its 4-in-1 capability ensures that clinicians have the right tools at every stage of respiratory care.

Key Features

1. Comprehensive 4-in-1 Ventilation Integration

This medical ventilator uniquely combines:

• High-Flow Oxygen Therapy (HFNC)

• Non-Invasive Ventilation (NIV)

• Invasive Ventilation (IV)

• Conventional Ventilation (CV)

• High-Frequency Oscillatory Ventilation (HFOV)

This integration eliminates the need for multiple devices, streamlining care and reducing handling time.

2. Advanced User Interface & Display

• 15.6-inch TFT LCD Color Touch Screen: High-resolution (1366×768) capacitive touch technology for sensitive and precise control.

• Intuitive Menu Design: Allows complete routine operations in one step, optimizing clinical workflow.

• Adjustable Brightness: Adapts to different lighting conditions in the NICU or delivery room.

3. Enhanced Patient Safety & Developmental Care

• Low-Noise Operation: Only 46 dB, creating a quiet environment conducive to kangaroo care and infant development.

• Reduced Risk of Volutrauma: HFOV with Volume Guarantee (VG) minimizes lung injury.

• Apnea Monitoring & Wake-Up Function: Automatically detects and disrupts apneic episodes.

• Real-Time Leak Monitoring: Leak% parameter helps clinicians quickly address interface leaks.

4. Precision Monitoring & Data Management

• Real-Time Pressure Waveform & FiO₂ Detection

• Oxygenation Parameters: OSI, SpO₂/FiO₂ for assessing neonatal oxygenation status.

• Extended Data Review: Stores up to 60 hours of trend data for informed clinical decision-making.

• External Abdominal Respiration Sensor: Monitors breathing status in real time.

5. Mobility & Versatility

• Compact & Lightweight: Dimensions 398×425×437 mm; weight ≤21.5 kg (including HFOV module).

• Built-in Lithium Battery: Provides ≥240 minutes of backup power (fully charged at 25°C).

• Transport-Ready: Designed for easy intra-hospital transport from delivery room to NICU.

6. Built-in Gas Management & Stability

• Integrated Air/Oxygen Mixer: Ensures stable and precise oxygen concentration (21–100%).

• Low-Noise Air Compressor: Provides consistent gas supply while maintaining a quiet environment.

• Optional Air Compressor: Available for enhanced flexibility.

7. Optional Features for Customization

• Color Options: Blue or Pink

• Masimo SpO₂ & EtCO₂ Monitoring Modules

• Abdominal Respiration Sensor

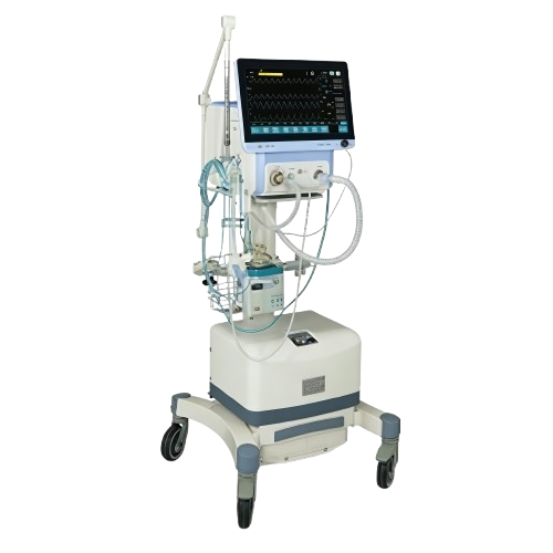

• Trolley & Support Arm

• Air Compressor
