Technical Specifications
Key Features & Benefits
Superior Imaging Performance
-
High-Frequency Generator: Advanced 80kHz inverter technology ensures exceptional stability and consistency, making this mammography machine capable of producing high-quality images with optimal contrast and detail
-
Precision X-Ray Tube: Imported IAE C339V tube with dual focal spots (0.1mm/0.3mm) and molybdenum target provides sharp imaging resolution for detecting microcalcifications and subtle tissue structures
-
Optimized Heat Management: 225KJ (300KHU) anode heat storage capacity supports extended clinical sessions, making this mammography machine suitable for high-volume imaging facilities
Enhanced Diagnostic Capabilities
-
Dual Focal Spot Technology: Switch between 0.1mm for high-resolution imaging of fine details and 0.3mm for standard mammographic views, enhancing this mammography machine's diagnostic versatility
-
Large Format Imaging: Standard 24cm×30cm cassette receptor accommodates most breast sizes, with optional 18cm×24cm format available for specific clinical needs
-
Precision Geometry: 650mm source-to-image distance (SID) minimizes geometric distortion and optimizes image quality
Operational Excellence
-
Comprehensive Positioning: Motorized U-arm with extensive vertical movement (590mm) and wide rotation range (+180° to -165°) facilitates optimal patient positioning for all standard mammographic views
-
High-Speed Anode Rotation: 3000/10000 rpm anode drive system ensures rapid exposure readiness and consistent performance
-
Efficient Workflow: Advanced generator with precise mAs control (10-510mAs large focus, 10-100mAs small focus) supports streamlined clinical operations
Clinical Reliability
-
Robust Construction: Engineered for durability with a total system weight of 315kg, ensuring stability and longevity in busy clinical environments
-
Advanced Filtration: Molybdenum filtration (0.03mm) optimizes beam quality for superior soft tissue contrast in mammographic imaging
-
Universal Power Compatibility: Single-phase 220VAC power requirement facilitates installation in various healthcare settings
Clinical Applications
-
Screening mammography for asymptomatic populations
-
Diagnostic mammography for symptomatic patients
-
Evaluation of breast abnormalities and follow-up studies
-
Pre-operative assessment and surgical planning
-
Comprehensive breast health assessment programs

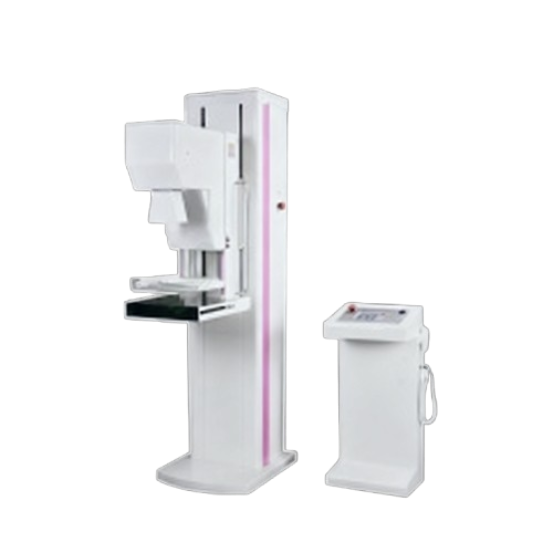

Why Choose the AKX980B Mammography Machine?
This advanced mammography machine combines sophisticated imaging technology with practical clinical design to meet the rigorous demands of modern breast imaging centers. The AKX980B's exceptional image quality, reliable performance, and user-friendly operation make it an outstanding choice for healthcare providers committed to excellence in breast care. Its robust construction and advanced features ensure years of dependable service in both hospital-based radiology departments and dedicated breast imaging centers.
Shipping & Ordering Information
-
Minimum Order Quantity (MOQ): 1 Unit
-
Shipping From: Guangzhou, China
-
Shipping Terms: Flexible options tailored to customer requirements
