Overview & Clinical Application

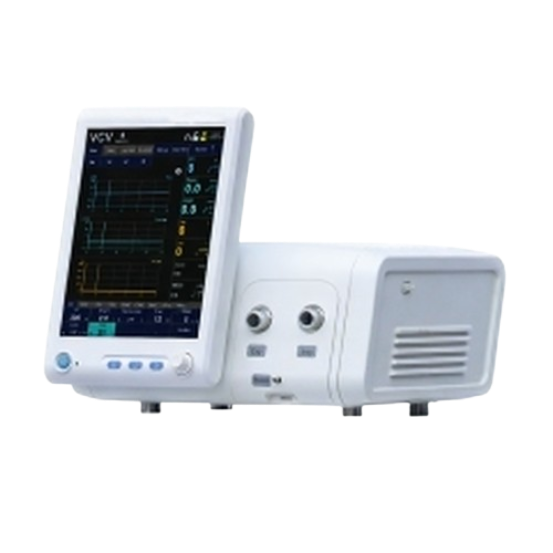

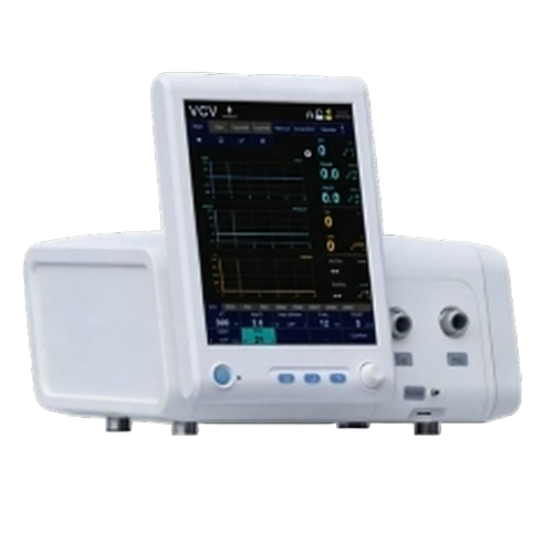

The ArKang AKAV-T80 represents an advanced ICU ventilator engineered to deliver precise and responsive ventilation across all patient age groups. Utilizing a high-performance turbine system capable of continuous gas flow up to 220 L/min, this ICU ventilator ensures rapid compensation and excellent patient-ventilator synchronization. Its modern interface, extensive monitoring parameters, and flexible configuration make it an ideal choice for ICUs, emergency departments, and transport ventilation.
Key Features
1. Intelligent User Interface & Display
-
12.1-inch TFT Touch Screen: High-resolution (1280×800) with adjustable brightness.
-
User-Friendly Layout: Intuitive design with color-coded controls for efficient operation.
-
Multi-Waveform Display: Simultaneously shows three waveforms (Pressure-Time, Flow-Time, Volume-Time) and three loops (Pressure-Volume, Flow-Volume, Pressure-Flow).
-
Freeze, Zoom, & Comparison Functions: Allows detailed analysis of ventilation dynamics.
2. High-Performance Turbine System
-
Integrated Turbine Design: Delivers continuous high flow >220 L/min with rapid response for leakage compensation.
-
No External Air Compressor Needed: Simplifies setup and enhances mobility.
-
Quick Trigger Response: Improves patient-ventilator synchrony with adjustable flow and pressure triggers.
3. Comprehensive Ventilation Modes
This ICU ventilator supports a wide array of modes for both invasive (IV) and non-invasive (NIV) ventilation:
-
VCV – Volume Control Ventilation
-
AC-V – Assist Control-Volume
-
SIMV-V – Synchronized Intermittent Mandatory Ventilation-Volume
-
PA-VC – Pressure Auto-Volume Control
-
PCV – Pressure Control Ventilation
-
AC-P – Assist Control-Pressure
-
SIMV-P – SIMV-Pressure
-
PSV – Pressure Support Ventilation
-
CPAP – Continuous Positive Airway Pressure
-
BIPAP – Bilevel Positive Airway Pressure
-
APNEA Mode
-
APRV – Airway Pressure Release Ventilation (Optional)
4. Extensive Monitoring & Data Management
-
Real-Time Parameters: VTe, VTi, MV, RR, Ppeak, Pplat, PEEP, Pmean, FiO₂, Vleak, Compliance, Resistance, WOB, and more.
-
Trend Storage: 72 hours of continuous trend data for all monitored parameters.
-
Event Log: Stores up to 3000 event records for retrospective analysis.
-
Oxygen Therapy (O₂ Remedy): Adjustable flow (4–60 L/min) and FiO₂ (21–100%).
5. Safety & Alarm Systems
-
Three-Level Audio/Visual Alarms: Adjustable volume and priority indication.
-
Comprehensive Alarm Coverage: Includes disconnection, gas supply failure, pressure limits, and apnea backup.
-
SIGH Function: Configurable (On/Off, 1–5 sighs per 100 breaths) for lung recruitment.
6. Mobility & Environmental Adaptability
-

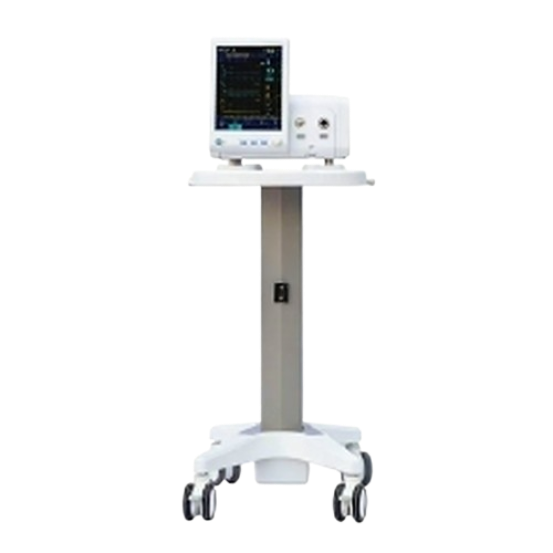

Compact & Lightweight: Main unit dimensions 40×42×36 cm; weight ~13 kg. With trolley: 53×53×133 cm, ~26 kg.
-
Wide Operating Range: Functions in temperatures from –20 to +50°C and humidity from 5% to 95% RH.
-
Low Noise: <45 dB, suitable for quiet ICU environments.
-
Built-in Lithium Battery: Provides backup power for continuous operation during transport or power outages.
7. Connectivity & Expandability
-
Communication Interfaces: HDMI, Ethernet, USB, optional CO₂ module connector.
-
Optional APRV Mode: For advanced ventilation strategies.
-
Nebulization Support: Integrated nebulizer function for medication delivery.
Technical Specifications Table
| Category |
Specification |
| Model |
AKAV-T80 |
| Brand |
ArKang |
| Type |
Turbine-Driven ICU Ventilator |
| Patient Range |
Adult, Pediatric, Neonatal |
| Display |
12.1-inch TFT Touch Screen |
| Resolution |
1280 × 800 pixels |
| Main Unit Dimensions |
40 × 42 × 36 cm (L×W×H) |
| Main Unit Weight |
~13 kg |
| Trolley Dimensions |
53 × 53 × 133 cm |
| Trolley Weight |
~26 kg (with main unit) |
| Turbine Flow |
>220 L/min continuous |
| Ventilation Modes |
VCV, AC-V, SIMV-V, PA-VC, PCV, AC-P, SIMV-P, PSV, CPAP, BIPAP, APNEA, APRV (optional) |
| Tidal Volume (VT) |
2–2000 mL |
| Minute Volume (MV) |
250–15000 mL/min |
| Respiratory Rate (RR) |
4–200 bpm |
| PEEP Range |
0–40 cmH₂O |
| Max Inspiratory Pressure |
90 cmH₂O |
| FiO₂ Range |
21–100% |
| Flow Trigger |
0.5–30 L/min |
| Pressure Trigger |
–20 to +20 cmH₂O |
| Inspiratory Time (Tinsp) |
150–1000 ms |
| SIGH Function |
On/Off, 1–5 per 100 breaths |
| O₂ Remedy Flow |
4–60 L/min |
| Monitoring Parameters |
VTe, VTi, MV, Ppeak, Pplat, PEEP, Pmean, Compliance, Resistance, WOB, Leak, etc. |
| Trend Storage |
72 hours |
| Event Log |
3000 records |
| Waveforms & Loops |
3 waveforms + 3 loops simultaneously |
| Alarm System |
3-level audio/visual, adjustable volume |
| Power Supply |
AC 100–240V, 50/60Hz, 2.5A max |
| Battery |
Built-in lithium-ion, 12V |
| Gas Supply Pressure |
280–600 kPa (medical-grade O₂) |
| Noise Level |
<45 dB |
| Operating Temperature |
–20 to +50°C |
| Operating Humidity |
5–95% RH |
| Communication Ports |
HDMI, Ethernet, USB, optional CO₂ module |
| Certifications |
CE, ISO |
| Shipping Origin |
Guangzhou, China |
| MOQ |
1 unit |
