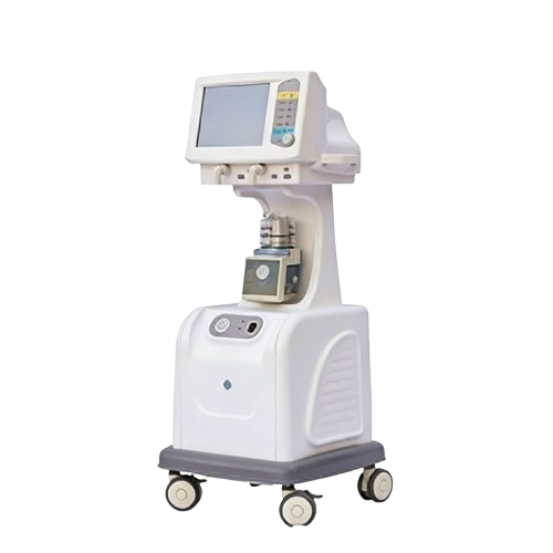

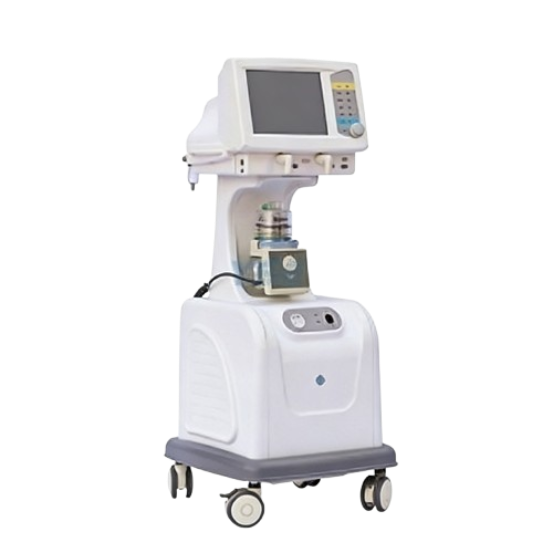

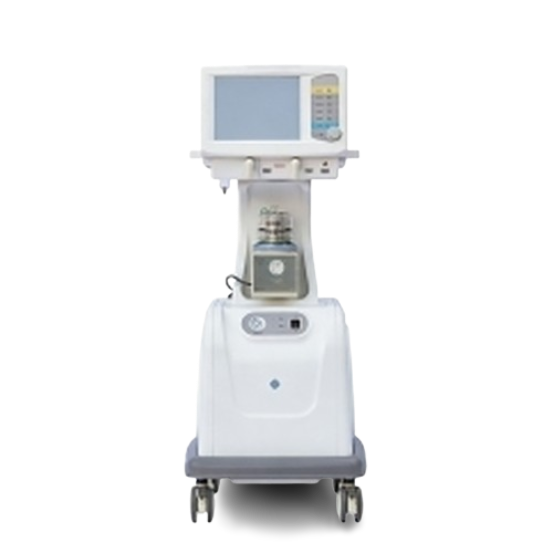

The ArKang AKAV3010 is a high-performance, versatile ICU ventilator engineered to deliver comprehensive respiratory support in critical care settings. Designed for adult, pediatric, and infant patients, this ventilator integrates advanced ventilation modes, high-flow oxygen therapy, and intuitive touch-screen controls into a robust, mobile system. With its built-in air compressor, extended battery backup, and extensive monitoring capabilities, the AKAV3010 ensures reliable, precise ventilation in demanding ICU environments.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The AKAV3010 ICU ventilator is a complete respiratory solution built to meet the rigorous demands of intensive care units. It features a 12.1-inch color touch screen that displays real-time waveforms (P-T, F-T, V-T) and dynamic loops (P-V, F-V, F-P), providing clinicians with clear, actionable insights into patient ventilation status. The system supports both invasive and non-invasive ventilation across a wide range of modes, including VCV, SIMV, PCV, BIPAP, APRV, and NIV, ensuring tailored respiratory therapy for every patient.

Key Features & Benefits:

Comprehensive Ventilation Modes: Offers a full suite of modes such as VCV, SIMV, SIMV/PSV, PSV, PCV, BIPAP, APRV, CPAP, and Manual ventilation, making it a truly versatile ICU ventilator for diverse clinical scenarios.
Advanced Monitoring & Parameters: Tracks essential and advanced parameters including Vti, Vte, Ppeak, Pmean, Compliance (Cs, Cdyn), Resistance (Ri, Rex), Work of Breathing (WOB), NIF, and RSBI, facilitating thorough respiratory assessment.
High-Flow Oxygen Therapy (Optional): Provides oxygen remedy support of up to 60 L/min, enabling rapid improvement in oxygenation for hypoxic patients.
Integrated Air Compressor: Includes an advanced built-in air compressor, ensuring independent operation without reliance on external air supplies, a critical feature for a reliable ICU ventilator.
Extended Battery Operation: Equipped with a 12V lead-acid battery providing over 180 minutes of runtime, safeguarding ventilation during patient transport or power interruptions.
User-Friendly Design: Features a simple, intuitive interface with pre-set languages and automatic self-test/calibration functions, promoting efficient and error-resistant operation in high-stress ICU settings.
Additional Functions: Includes auxiliary suction (optional), nebulization treatment support, and an auto-wash function for the exhaust valve to maintain hygiene and performance.

Technical Specifications

Category	Specification
Model	AKAV3010
Brand	ArKang
Type	ICU Ventilator / Medical Respirator
Physical Dimensions	45 cm x 55 cm x 140 cm
Weight	65 kg
Mobility	Built-in casters (front wheels lockable)
Display	12.1-inch color LCD touch screen
Graphics	Real-time waveforms (P-T, F-T, V-T); Loops (P-V, F-V, F-P)
Patient Applicability	Adult, Pediatric, Infant
Ventilation Modes	VCV, SIMV, SIMV/PSV, PSV, PCV, BIPAP, APRV, NIV, CPAP, Manual, APNEA, SIGH
Tidal Volume Range	20 – 2000 ml
Pressure Range	5 – 80 cmH₂O
Respiratory Rate	10 – 100 bpm (1 – 40 bpm under SIMV)
Inspiration Time	0.2 – 12 s
PEEP Range	Off, 3 – 40 cmH₂O (Electronic Control)
Oxygen Concentration	21 – 100%
Monitoring Parameters	Vti, Vte, Ppeak, Pmean, Pplateau, PEEP, NIF, Compliance (Cs, Cdyn), Resistance (Ri, Rex), WOB, RSBI, FiO₂, et al.
Gas Supply	O₂ & Air; Pipeline Input: 280 – 600 kPa
Air Compressor	Output Pressure: 0.4 ± 0.1 MPa; Noise: ≤ 50 dB
Power Supply	AC 220V ±10%, 50Hz ±2%
Battery Backup	Lead-acid 12V, 44Ah; Runtime: ≥ 180 minutes
Environmental Operating	Temp: 5°C to 40°C; Humidity: ≤ 80%; Pressure: 960 – 1040 hPa
Alarms	Visual & Audio (No tidal volume, Pressure, FiO₂, O₂/Air failure, Power failure, etc.)
Optional Features	High-flow O₂ Remedy (up to 60 L/min), Auxiliary Suction, CO₂ Monitoring
MOQ & Shipping	MOQ: 1 unit; Ships from Guangzhou, China

Why Choose the AKAV3010 ICU Ventilator?

The ArKang AKAV3010 stands out as a dependable and adaptable ICU ventilator that combines clinical versatility with operational resilience. Its comprehensive monitoring, dual gas source capability with a built-in compressor, and extended battery life make it ideal for continuous critical care, emergency response, and safe intra-hospital patient transport. Designed for clarity and ease of use, it empowers healthcare teams to deliver precise, effective respiratory support with confidence.
