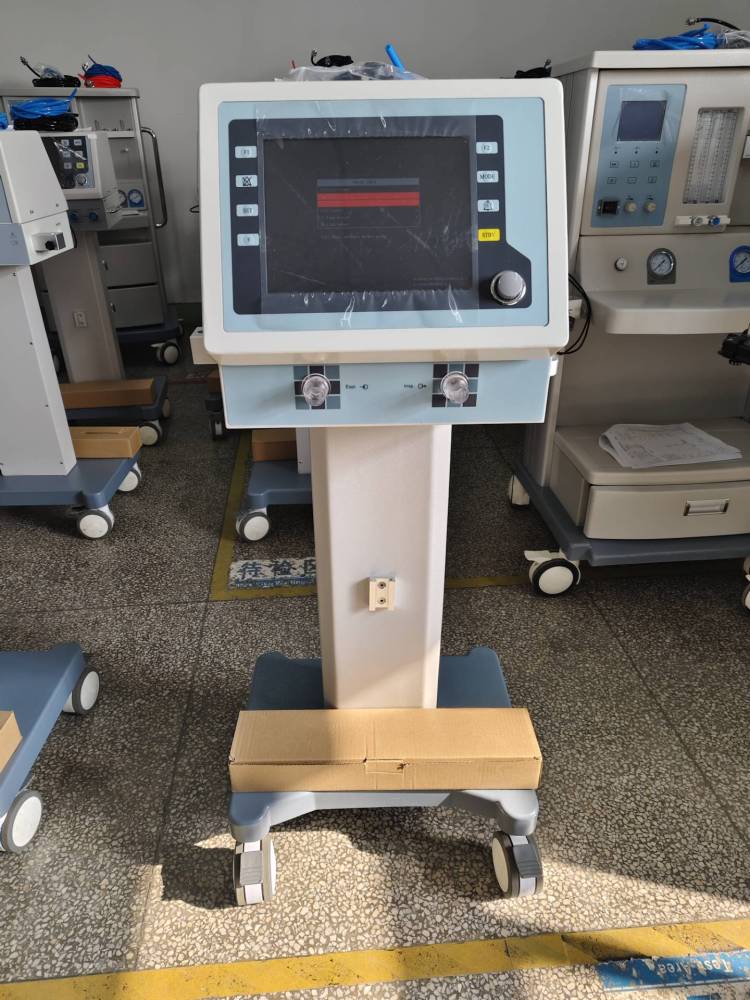

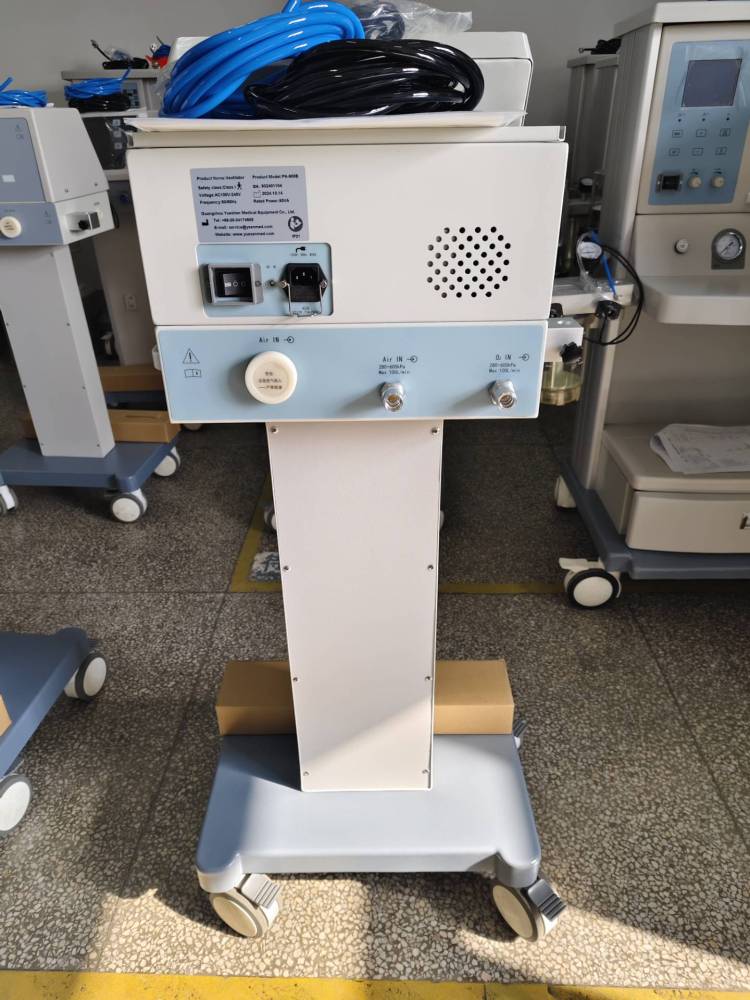

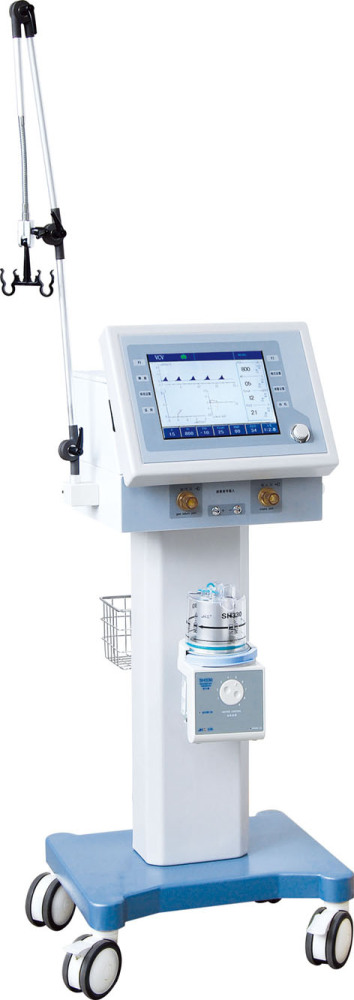

Medical ventilator for sale PA-900B Standard Model

Overview & Clinical Application

The PA-900B Standard Model is a pneumatically driven and electronically controlled medical ventilator for sale suitable for a wide range of respiratory support scenarios. Built with a durable ABS and metal frame, it incorporates automated self-checking, dual flow sensors, and real-time waveform display to enhance clinical accuracy and safety. This medical ventilator for sale is designed to provide reliable ventilation management in operating rooms, ICUs, and emergency departments.

Key Features

• 10.4-inch Color TFT Display: Supports simultaneous display of Pressure-Time, Frequency-Time, Pressure-Volume, and Frequency-Volume waveforms.

• Dual Electronic Flow Sensors & Dual Respiratory Modules: Ensure accurate gas flow measurement and ventilation control.

• Multiple Ventilation Modes: Includes IPPV, SIPPV, PCV, PSV, SIMV, P-SIMV, CPAP, and MANUAL.

• Trigger Options: Pressure trigger and flow trigger for enhanced patient synchronization.

• SIGH Function: Configurable 1–8 sigh breaths per 100 cycles (tidal volume ≥1.5× set value).

• Adjustable Humidifier: 9-level control to maintain optimal airway humidity.

• Comprehensive Alarms: Audible and visual alerts for tidal volume, airway pressure, oxygen concentration, power failure, and more.

• Power Failure Support: Automatically switches to standby mode during AC power outages.



  Technical Specifications Comparison Table

  Category	Standard Model	Advanced Model
  Model	PA-900B Standard	PA-900B Advanced
  Display	10.4-inch color TFT, fully adjustable	10.4-inch color TFT, fully adjustable
  Material	ABS and Metal	ABS and Metal
  Operating Principle	Pneumatically driven & electronically controlled	Pneumatically driven & electronically controlled
  Breathing Systems	Closed, Semi-closed, Semi-open	Closed, Semi-closed, Semi-open
  Ventilation Modes	IPPV, SIPPV, PCV, PSV, SIMV, P-SIMV, CPAP, MANUAL	IPPV, SIPPV, PCV, PSV, SIMV, P-SIMV, CPAP, MANUAL
  Tidal Volume Range	20–1500 mL	20–1500 mL
  Minute Volume	≥18 L/min	≥18 L/min
  O₂ Concentration Range	45%–100%	21%–100%
  Respiratory Frequency	1–99 bpm	1–99 bpm
  SIMV Frequency	1–20 bpm	1–20 bpm
  I:E Ratio	4:1–1:4	4:1–1:4
  Inspiratory Pressure Trigger	–1.0 to +1.0 kPa	–1.0 to +1.0 kPa
  PEEP Range	0–1 kPa	0–1 kPa
  SIGH Function	1–8 per 100 breaths (tidal volume ≥1.5× set)	1–8 per 100 breaths (tidal volume ≥1.5× set)
  Pressure Limit Range	1.0–6.0 kPa	1.0–6.0 kPa
  Gas Supply Requirement	280–600 kPa medical-grade O₂ and air	280–600 kPa medical-grade O₂ and air
  Flow Sensors	Dual electronic flow sensors + infrared turbine sensor	Dual electronic flow sensors + infrared turbine sensor
  Trigger Types	Pressure trigger, Flow trigger	Pressure trigger, Flow trigger
  Humidifier	9-level adjustable	9-level adjustable
  Alarms	Tidal volume, airway pressure, O₂ concentration, power failure, etc.	Same as Standard Model
  Alarm History	Supported	Supported
  Power Failure Support	Auto-standby mode	Auto-standby mode
  Backup Power Supply	Yes	Yes
  Self-Check & Calibration	Automated startup self-check	Automated startup self-check
  Primary Applications	Emergency resuscitation, anesthesia, respiratory therapy	Critical care, prolonged ventilation, neonatal/pediatric support
