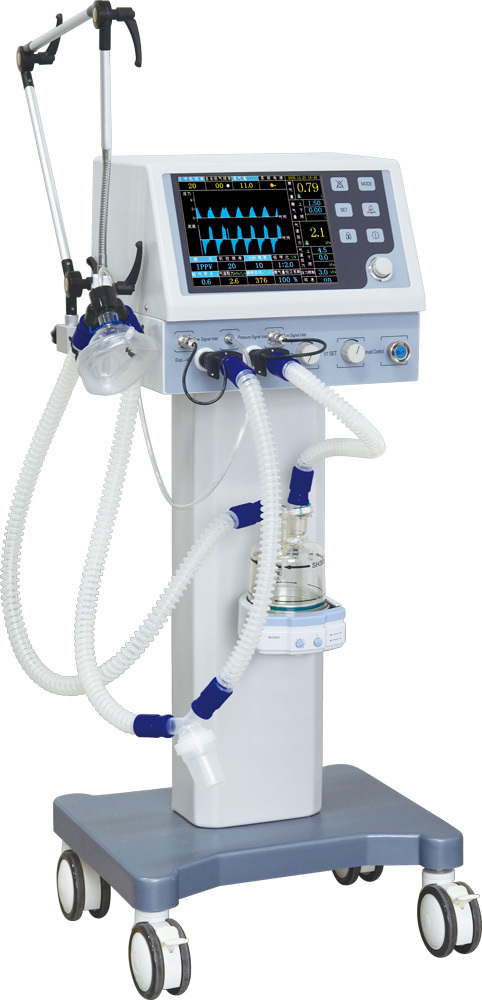

The PA-700B Standard Model Medical Ventilator Machine is a reliable and versatile respiratory support device designed for emergency resuscitation, anesthesia assistance, and respiratory therapy. Featuring a 10.4-inch high-visibility color TFT display, multiple ventilation modes, and comprehensive safety alarms, this medical ventilator machine ensures precise and stable ventilation in closed, semi-closed, and semi-open breathing systems. Its automated self-checking, infrared turbine flow sensor, and power failure backup make it a dependable choice for clinical environments.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Overview & Clinical Use

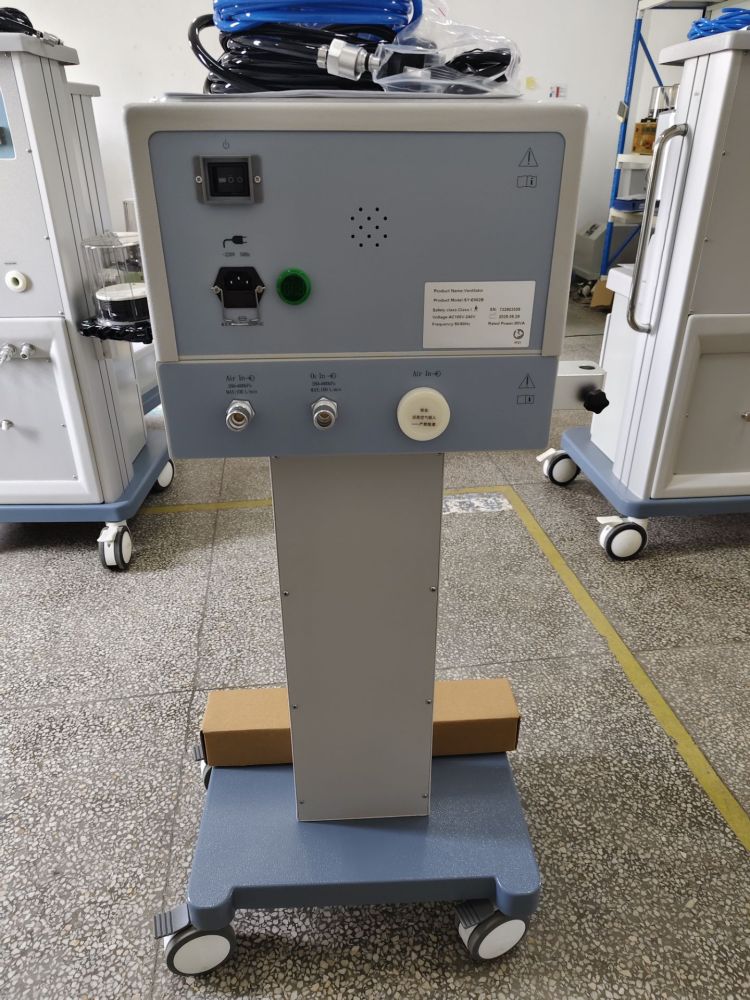

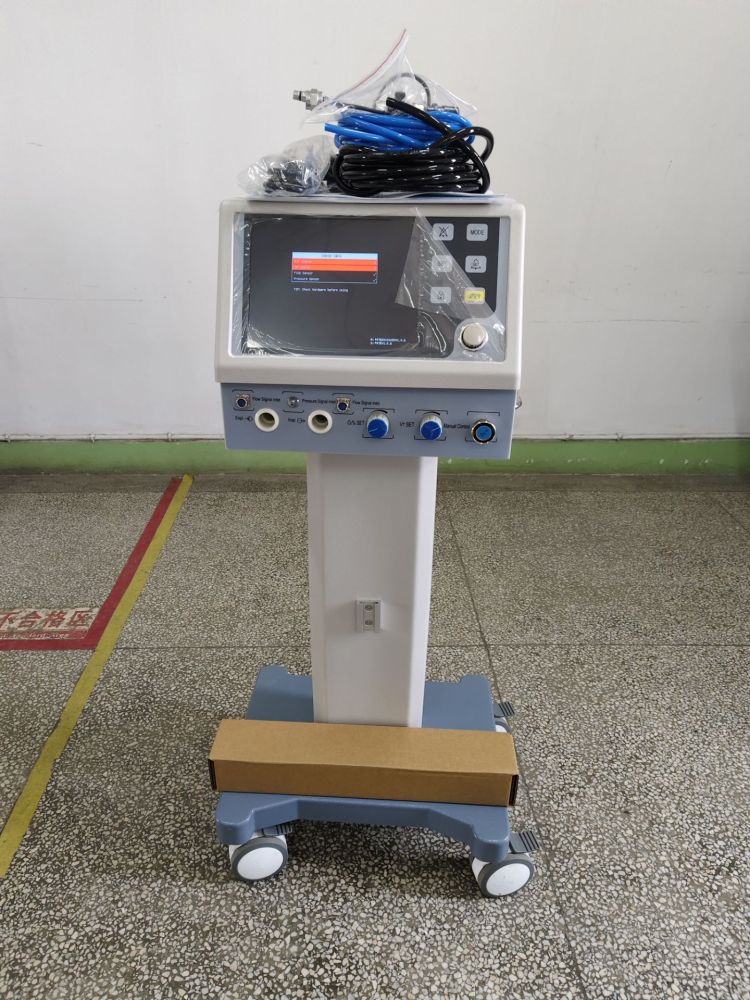

The PA-700B Standard Model is a pneumatically driven and electronically controlled medical ventilator machine suitable for a wide range of respiratory support applications. Built with a non-hazardous, environmentally friendly ABS and metal frame, it combines durability with an elegant design. The medical ventilator machine includes automated startup self-checking and sensor auto-calibration to ensure consistent performance and safety.

Key Features

10.4-inch Color TFT Display: Shows real-time Pressure-Time and Frequency-Time waveforms for clear ventilation monitoring.
Multiple Ventilation Modes: Supports IPPV, SIPPV, IMV, SIMV, and MANUAL modes.
Advanced Sensing: Equipped with an infrared turbine flow sensor for precise gas flow measurement.
SIGH Function: Allows 1–8 sigh breaths per 100 cycles, each with a tidal volume ≥1.5× the set value.
Adjustable Humidifier: 9-level humidification control to maintain airway moisture.
Comprehensive Alarms: Audible and visual alerts for tidal volume, airway pressure, oxygen concentration, asphyxia, intubation disconnection, power failure, and more.

Power Failure Support: Automatically switches to standby mode during AC power outages.

Technical Specifications Comparison Table

Category	Standard Model	Advanced Model
Model	PA-700B Standard	PA-700B Advanced
Display	10.4-inch high-visibility color TFT	10.4-inch high-visibility color TFT
Material	ABS and Metal	ABS and Metal
Operating Modes	Pneumatically driven & electronically controlled	Pneumatically driven & electronically controlled
Breathing Systems	Closed, Semi-closed, Semi-open	Closed, Semi-closed, Semi-open
Ventilation Modes	IPPV, SIPPV, IMV, SIMV, MANUAL	IPPV, SIPPV, IMV, SIMV, MANUAL
Tidal Volume Range	50–1500 mL	50–1500 mL
Minute Volume	≥18 L/min	≥18 L/min
O₂ Concentration Range	45%–100%	21%–100%
Respiratory Frequency	1–99 bpm	1–99 bpm
SIMV Frequency	1–20 bpm	1–20 bpm
I:E Ratio	4:1–1:4	4:1–1:4
Inspiratory Pressure Trigger	–1.0 to +1.0 kPa	–1.0 to +1.0 kPa
PEEP Range	0–1 kPa	0–1 kPa
SIGH Function	1–8 per 100 breaths (≥1.5× tidal volume)	1–8 per 100 breaths (≥1.5× tidal volume)
Pressure Limit Range	1.0–6.0 kPa	1.0–6.0 kPa
Gas Supply Requirement	280–600 kPa medical-grade O₂ and air	280–600 kPa medical-grade O₂ and air
Built-in Air Compressor	No	Yes – medical grade, low noise
Air Compressor Output	–	0.4MPa ±20%, ≥20 L/min continuous, ≥60 L/min instantaneous
Humidifier	9-level adjustable	9-level adjustable
Alarms	Tidal volume, airway pressure, O₂ concentration, asphyxia, disconnection, power failure, etc.	Same as Standard + compressor-related alerts
Alarm History Query	Yes	Yes
Power Failure Support	Auto-standby mode	Auto-standby mode
Backup Power Supply	Yes	Yes
Self-Check & Calibration	Automated startup self-check and sensor auto-calibration	Same as Standard
Primary Applications	Emergency resuscitation, respiratory therapy, anesthesia support	Extended surgical procedures, ICU, environments without central air supply
