Overview & Certification

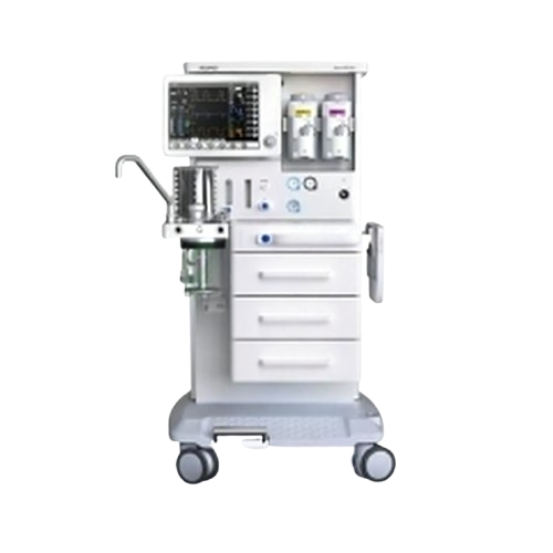

The AEONMED AEON8800A is a modern, mobile anesthesia machine that meets stringent EU clinical requirements, holding CE certification for safety and performance. It is engineered to deliver precise anesthesia delivery across diverse surgical scenarios, offering flexibility in ventilation strategy and enhanced monitoring capabilities.
Key Features
1. Advanced Display & Interface
Equipped with a 15-inch TFT LCD color touchscreen, this anesthesia machine provides a high-visibility, intuitive interface for real-time monitoring and control. The display supports waveform visualization, trend analysis in both table and chart formats, and highlighted alarm indicators, ensuring clinicians can make informed decisions quickly.
2. Versatile Ventilation Management
This anesthesia machine offers a comprehensive range of ventilation modes, including:
These modes provide flexibility for both routine and complex respiratory management, suitable for adult and pediatric patients.
3. Precision Gas Delivery
The anesthesia machine incorporates a digital flowmeter for accurate and easy fresh gas flow setting. It features an electronically controlled mixer with a flow range of 0–18 L/min, and independent gas settings for O₂, N₂O, and Air (each 0–10 L/min). An auxiliary O₂ flow of 0–15 L/min and O₂ flush function (25–75 L/min) are also included.
4. Enhanced Breathing System
The alloy breathing system is fully removable, easy to clean, and autoclavable, supporting closed, semi-closed, and semi-open operating modes. It includes a single 1.5L CO₂ canister and an APL valve range suitable for spontaneous breathing. An optional CO₂ bypass and constant temperature heating system prevent moisture condensation, enhancing patient comfort and monitoring reliability.
5. Safety & Alarm Systems
This anesthesia machine is equipped with a robust alarm system covering:
Alarms are both audible and visual, with a silence function limited to 120 seconds. The system also includes oxygen supply failure protection and compliance, leakage, fresh gas, and altitude compensation.
6. Vaporizer System
Supporting two vaporizers with optional standby parking, this anesthesia machine is compatible with Sevoflurane, Enflurane, Isoflurane, and Halothane. It features Selectate® installation with interlock and multiple filling options (Pour-Fill, Key-Fill, Quik-Fill®).
7. Mobility & Environment Adaptability
Designed as a mobile anesthesia machine, the AEON8800A is compact and robust, suitable for use in various clinical settings. It operates within a temperature range of 10–40°C and humidity <80%, with storage tolerance from -20 to 60°C.
| Category |
Specification |
| Model |
AEON8800A |
| Brand |
AEONMED |
| Certification |
CE Certified |
| Dimensions (H×W×D) |
1403 × 704 × 750 mm (without yoke) |
| Weight |
110 kg (basic unit) |
| Operating Temperature |
10–40°C |
| Operating Humidity |
<80% (non-condensing) |
| Storage Temperature |
-20–60°C |
| Storage Humidity |
<95% (non-condensing) |
| Power Supply |
AC 100–240V, 50/60Hz |
| Battery Backup |
DC 24V 4Ah, ≥120 minutes |
| Gas Supply Pressure |
280–600 kPa |
| Fresh Gas Flow Range |
0–18 L/min (electronically controlled mixer) |
| O₂ Flow Range |
0–10 L/min |
| N₂O Flow Range |
0–10 L/min |
| Air Flow Range |
0–10 L/min |
| Auxiliary O₂ Flow |
0–15 L/min |
| O₂ Flush |
25–75 L/min |
| Breathing System |
Alloy, autoclavable |
| CO₂ Canister |
Single, 1.5 L |
| APL Valve Range |
Spontaneous breathing: -70 cmH₂O |
| Ventilation Modes |
IPPV, PCV, SIMV-VG, PS/CPAP, Manual |
| Optional Modes |
SIMV-PC, PCV-VG, SIMV-VG |
| Tidal Volume |
20–1500 mL |
| Ventilation Frequency |
2–100 bpm |
| I:E Ratio |
4:1–1:8 |
| Inspiratory Pressure |
5–70 cmH₂O |
| Pressure Support |
3–50 cmH₂O |
| Inspiratory Time |
0.2–5 s |
| PEEP |
OFF, 3–30 cmH₂O |
| Inspiratory Plateau |
OFF, 5–60% Ti |
| Trigger Sensitivity |
1–15 L/min |
| Vaporizer Support |
Two vaporizers (optional standby holder) |
| Compatible Agents |
Sevoflurane, Enflurane, Isoflurane, Halothane |
| Display |
15-inch TFT LCD color touchscreen |
| Alarm Types |
Audible & visual |
| Alarm Parameters |
Pressure, volume, gas concentration, apnea, system failures |
| Optional Accessories |
AGSS, ACGO, CO₂ bypass, cylinder, patient monitor |
