Overview & Clinical Application

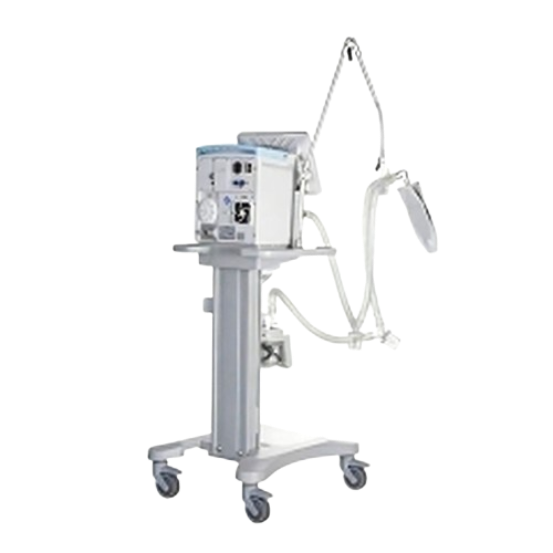

The VG70 is a trolley-mounted turbine-driven ICU ventilation medical system engineered to deliver advanced respiratory support for a wide range of patients. It seamlessly integrates the functionalities of an invasive ICU ventilator and a flexible noninvasive ventilator, making it suitable for diverse clinical scenarios—from routine ICU care to infectious disease outbreaks such as COVID-19.
Key Features
1. Comprehensive Ventilation Modes
This ventilation medical device supports an extensive range of modes to meet complex clinical needs:
-
VCV (A/C)
-
PCV (A/C)
-
PRVC (optional)
-
PSV (optional)
-
SIMV (VCV/PCV/PRVC) + PSV
-
SPONT/CPAP + PSV
-
BIVENT/APRV + PSV (optional)
-
NIV/CPAP, NIV-T, NIV-S/T
-
Apnea Ventilation
-
Manual Breath, Insp/Exp Hold
2. Advanced Enhancements & Safety
-
Automatic Tube Compensation (ATC)
-
Smart Suction
-
Pressure & Flow Trigger
-
Screen Freeze & Nebulization Support
-
Lung Recruitment Capability
-
Unique metal-based, autoclavable, heated exhalation valve – reduces condensation and infection risk.
-
Built-in, non-consumable flow sensor – lowers maintenance costs.
3. High-Resolution Monitoring & Alarms
-
12.1" TFT Color Touch Screen for intuitive operation and clear visualization.
-
Real-Time Waveforms & Loops: Pressure-Volume, Pressure-Flow, Flow-Volume.
-
Advanced Monitoring Parameters:
-
Inspiratory O₂ concentration (FiO₂)
-
End-expiratory CO₂ concentration (etCO₂)
-
Dynamic & Static Compliance, Resistance (R)
-
MVleak, RSBI, WOB, LE, Vdaw, PEEPi
-
Comprehensive Alarms: Includes apnea (10-60 sec), disconnection, gas/electrical supply failure, exhalation obstruction, and apnea backup.
4. Mobility & Configuration Flexibility
-
Compact & Lightweight: Dimensions 375mm x 395mm x 430mm; weight 17kg.
-
Large Capacity Battery – supports intra-hospital transport without an air compressor.
-
Flexible Mounting: Can be equipped on a trolley, bed, or ceiling pendant.
5. Cost-Effective & Upgradeable Design
6. CE Certified for Anti-Coronavirus Use
Specifically validated for use in infectious disease management, including COVID-19, ensuring safety and reliability in high-risk environments.
Technical Specifications Table
| Category |
Specification |
| Model |
VG70 |
| Brand |
AEONMED |
| Type |
Trolley Turbine ICU Ventilator |
| Certification |
CE Certified (Anti-Coronavirus) |
| Display |
12.1" TFT Color Touch Screen |
| Dimensions (W×D×H) |
375 × 395 × 430 mm |
| Weight |
17 kg (37.5 lbs) |
| Battery |
Large capacity, supports mobility |
| Air Compressor |
Not required (Turbine-driven) |
| Exhalation Valve |
Metal-based, autoclavable, heated |
| Flow Sensor |
Built-in, non-consumable |
| Software Upgrade |
Via USB port |
| Ventilation Modes |
VCV, PCV, PRVC (opt), PSV (opt), SIMV+PSV, SPONT/CPAP+PSV, BIVENT/APRV+PSV (opt), NIV modes, Apnea Ventilation |
| Tidal Volume (VT) |
20–2000 mL |
| Respiratory Rate (RR) |
1–80 bpm |
| Inspiratory Time (Ti) |
Adult: 0.2–9 s; Pediatric: 0.2–5 s |
| Inspiratory Flow |
Pediatric: 0–100 L/min; Adult: 0–180 L/min |
| Inspiratory Pressure |
5–70 mbar (cmH₂O) |
| Pressure Limit (Pmax) |
80 mbar (cmH₂O) |
| PEEP |
0–35 mbar (cmH₂O) |
| Tslope |
0–2 s |
| FiO₂ Range |
21–100% |
| Trigger Sensitivity |
Flow: 0.5–20 L/min; Pressure: –20 to 0 mbar |
| I:E Ratio |
1:10 to 4:1 |
| Apnea Alarm Time |
10–60 seconds |
| Monitoring |
FiO₂, etCO₂, Compliance, Resistance, Loops (P-V, P-F, F-V) |
| Alarms |
MV, Paw, VTe, PEEP, FiO₂, etCO₂, Apnea, Disconnection, Sensor Error, Gas/Power Failure, Obstruction |
| Mounting Options |
Trolley, Bed, Ceiling Pendant |
| Shipping Origin |
Guangzhou, China |
| MOQ |
1 unit |
