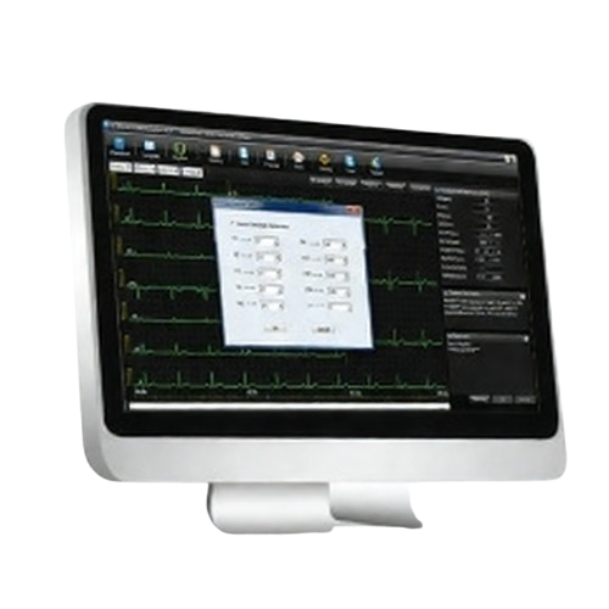

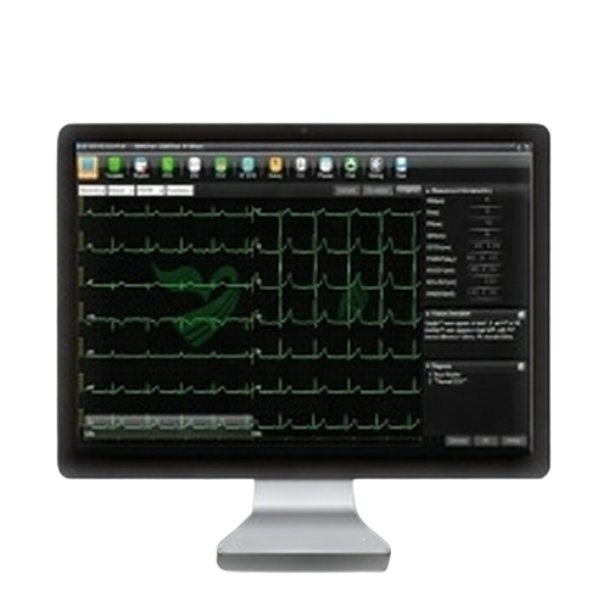

The EDAN SE-1515 ECG machine redefines electrocardiography by combining a versatile PC-based platform with comprehensive data management capabilities. More than just an ECG device, it functions as a centralized workstation that streamlines workflows for resting ECG, stress ECG, and Holter data, optimizing interoperability across clinical environments.

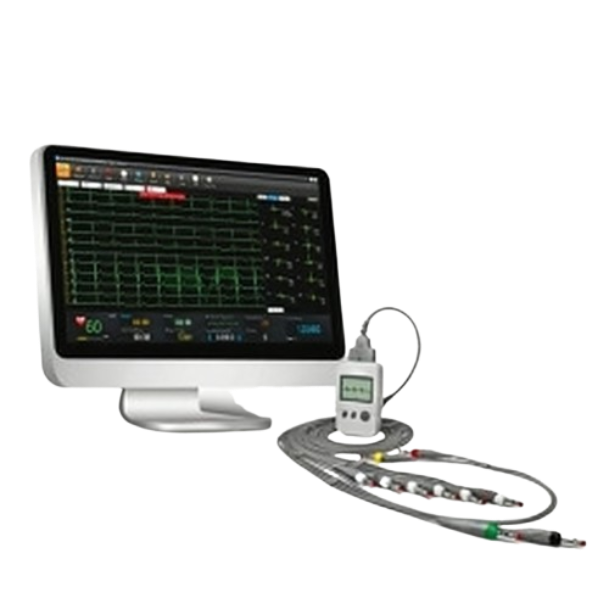

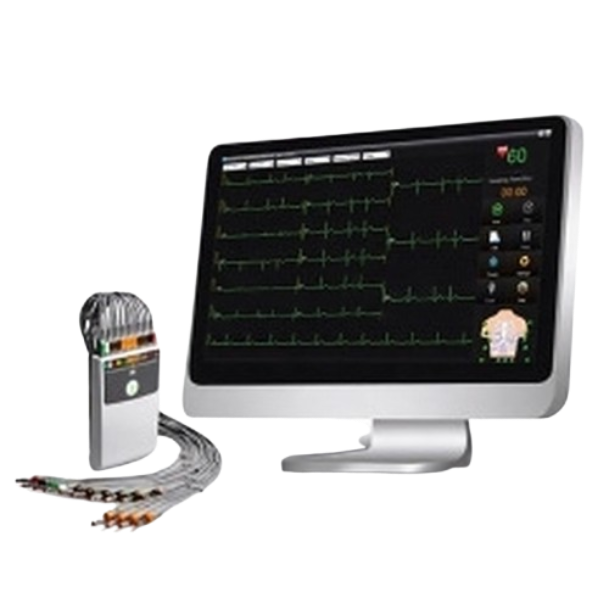

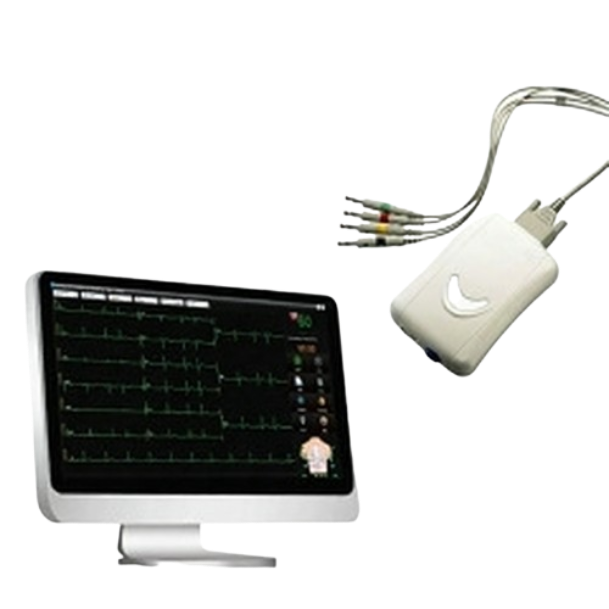

At its core, the SE-1515 employs the DE18 and DP12 high-precision sampling boxes, which integrate cutting-edge technologies to maximize performance. With a 16,000 Hz sampling rate, 24-bit A/D converter, 140 dB Common Mode Rejection Ratio (CMRR), and an extended bandwidth of 0.01–300 Hz, the system captures ECG signals with minimal distortion and exceptional clarity—making it particularly suitable for pediatric diagnostics and detailed waveform analysis.
The platform supports flexible lead configurations (9, 12, 15, 16, or 18 leads) for resting ECG, including long-term acquisition up to 30 minutes with full disclosure waveforms. It also offers advanced analyses such as Vectorcardiography (VCG) and Timed VCG. For stress testing, the SE-1515 enables unlimited user-defined protocols, automatic 12-lead reporting, and integrated parameters like ST assessment, METs, Duke Score, and FAI%.
As a data management hub, the SE-1515 facilitates bidirectional communication with connected ECG devices, enabling automated worklist and report synchronization. It supports multi-format report export (PDF, XML, SCP, DICOM, JPG, BMP, DOC) and seamless integration with Hospital Information Systems (HIS), Electronic Medical Records (EMR), and PACS via HL7, DICOM, and GDT protocols. This allows for efficient cardiac consultation, database sharing, and centralized ECG data management across departments.
Ideal for hospitals, cardiology clinics, and diagnostic centers, the EDAN SE-1515 ECG machine represents a future-ready, all-in-one solution that enhances diagnostic precision, workflow efficiency, and data connectivity in modern cardiac care.
Specifications Table
