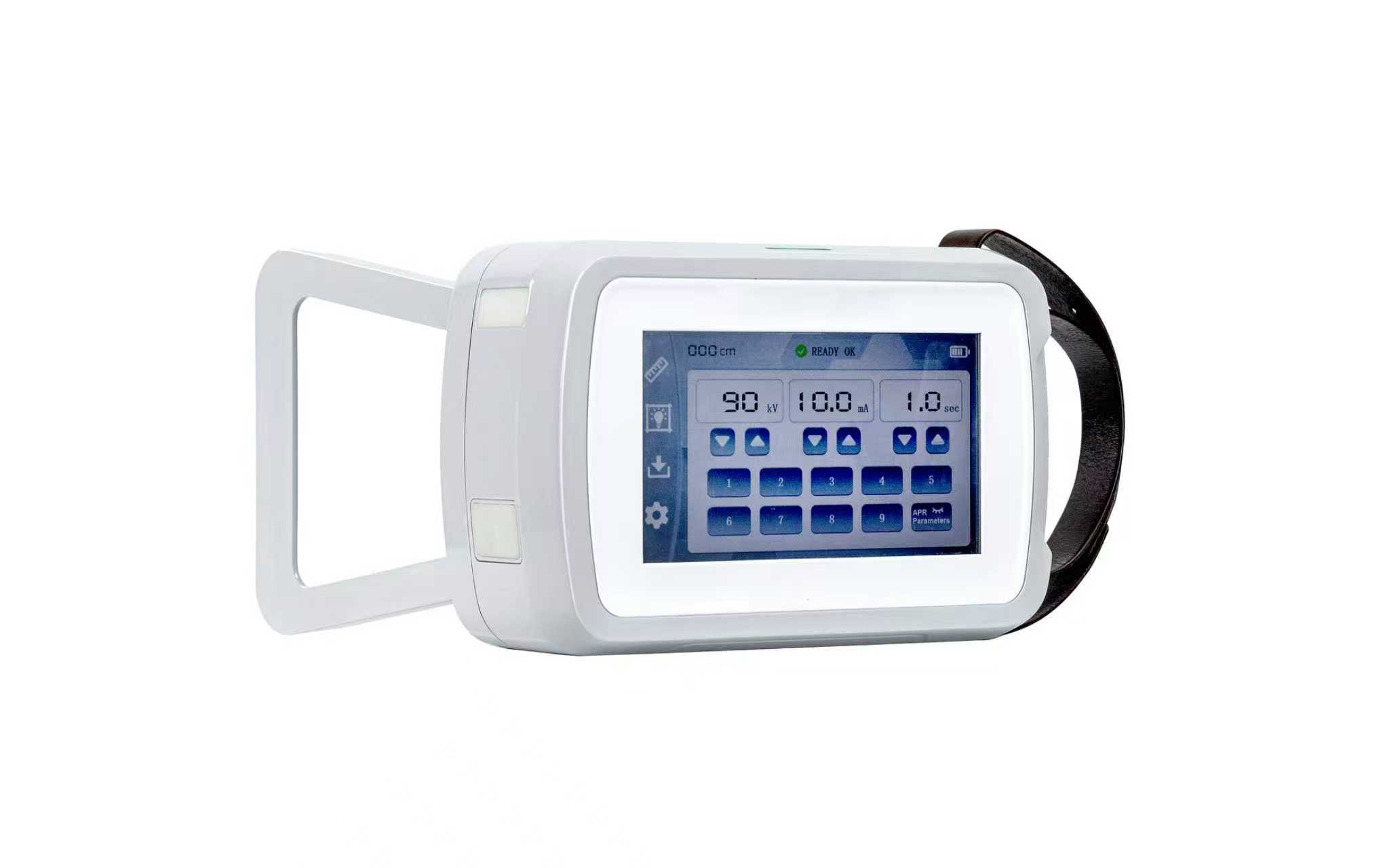

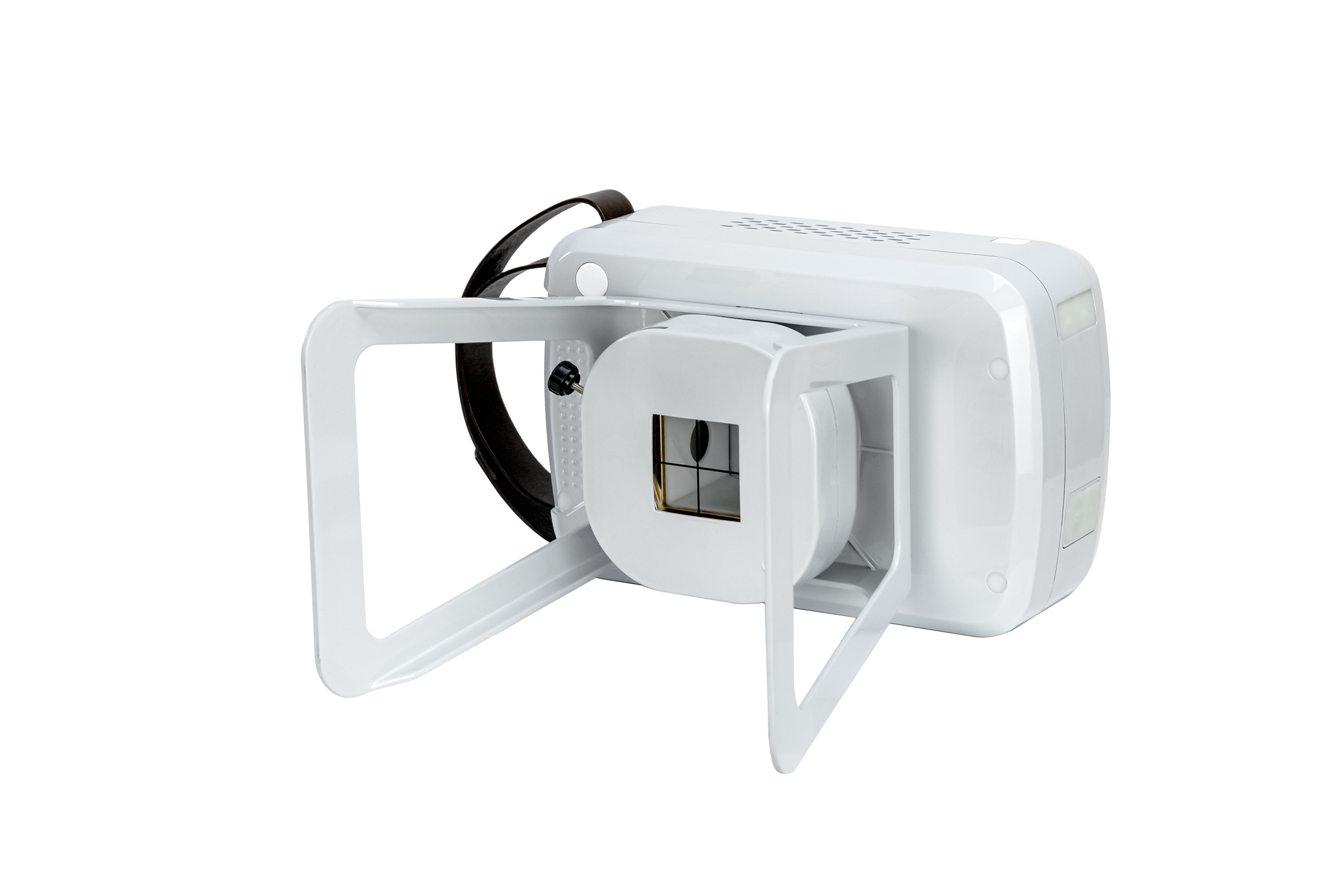

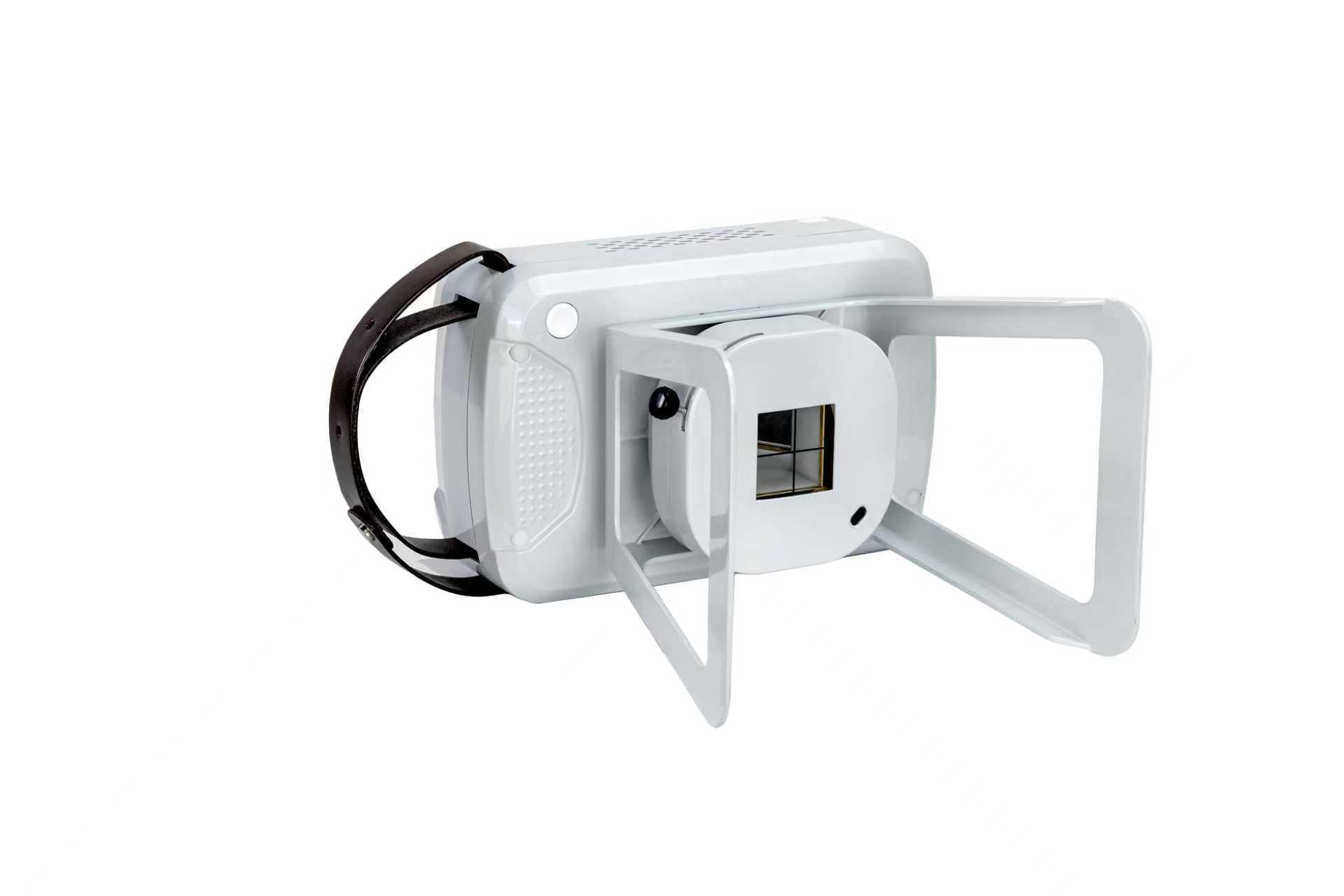

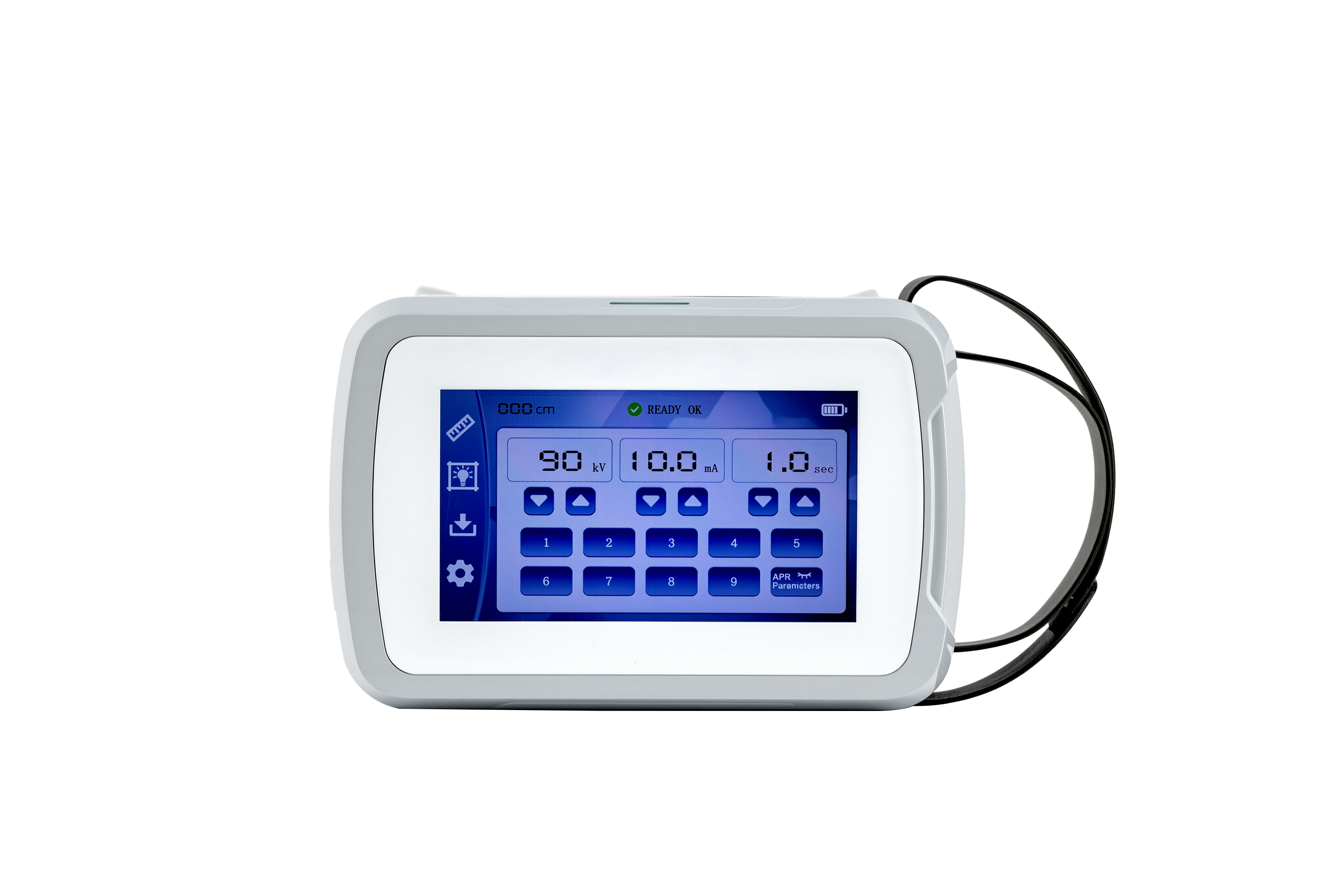

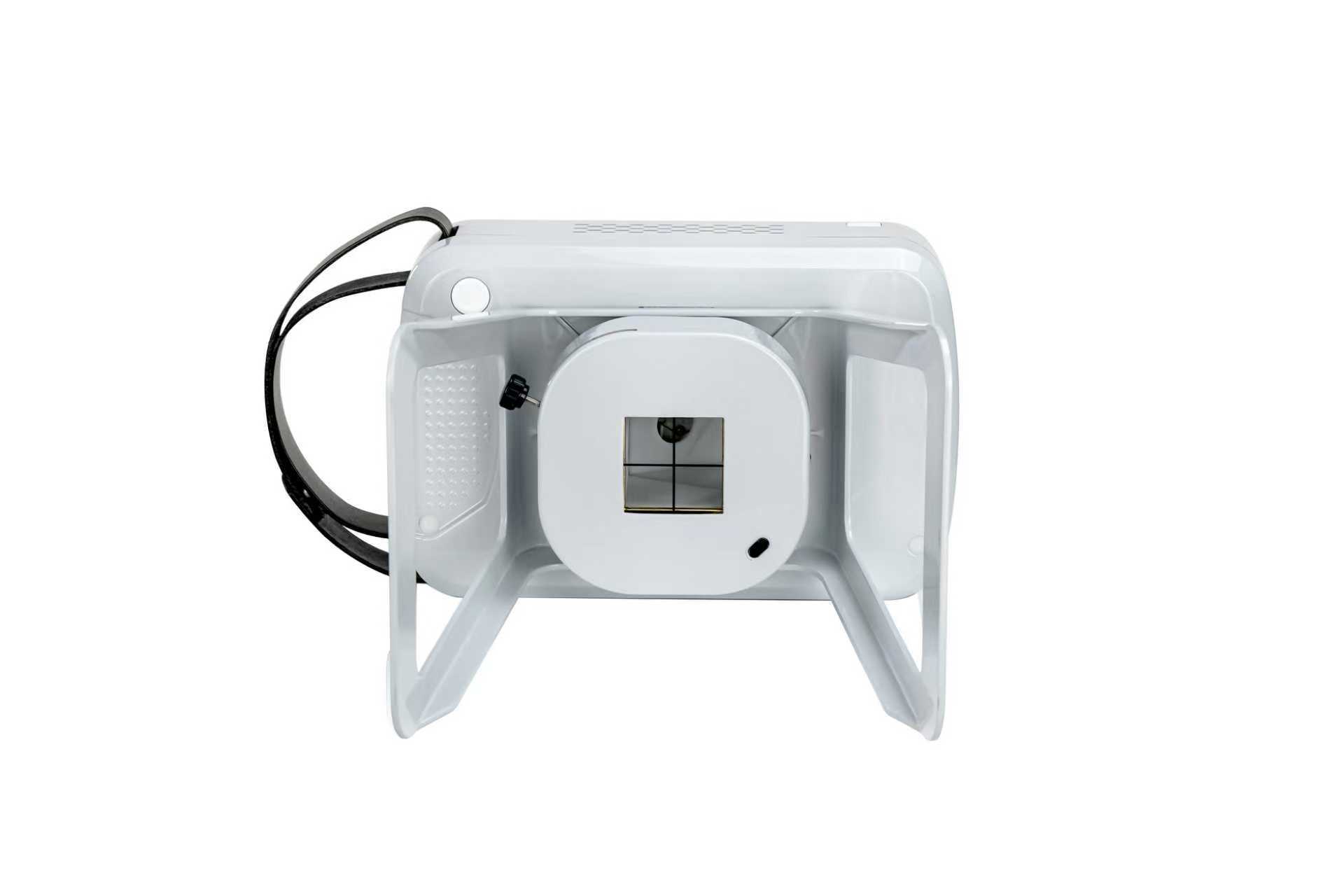

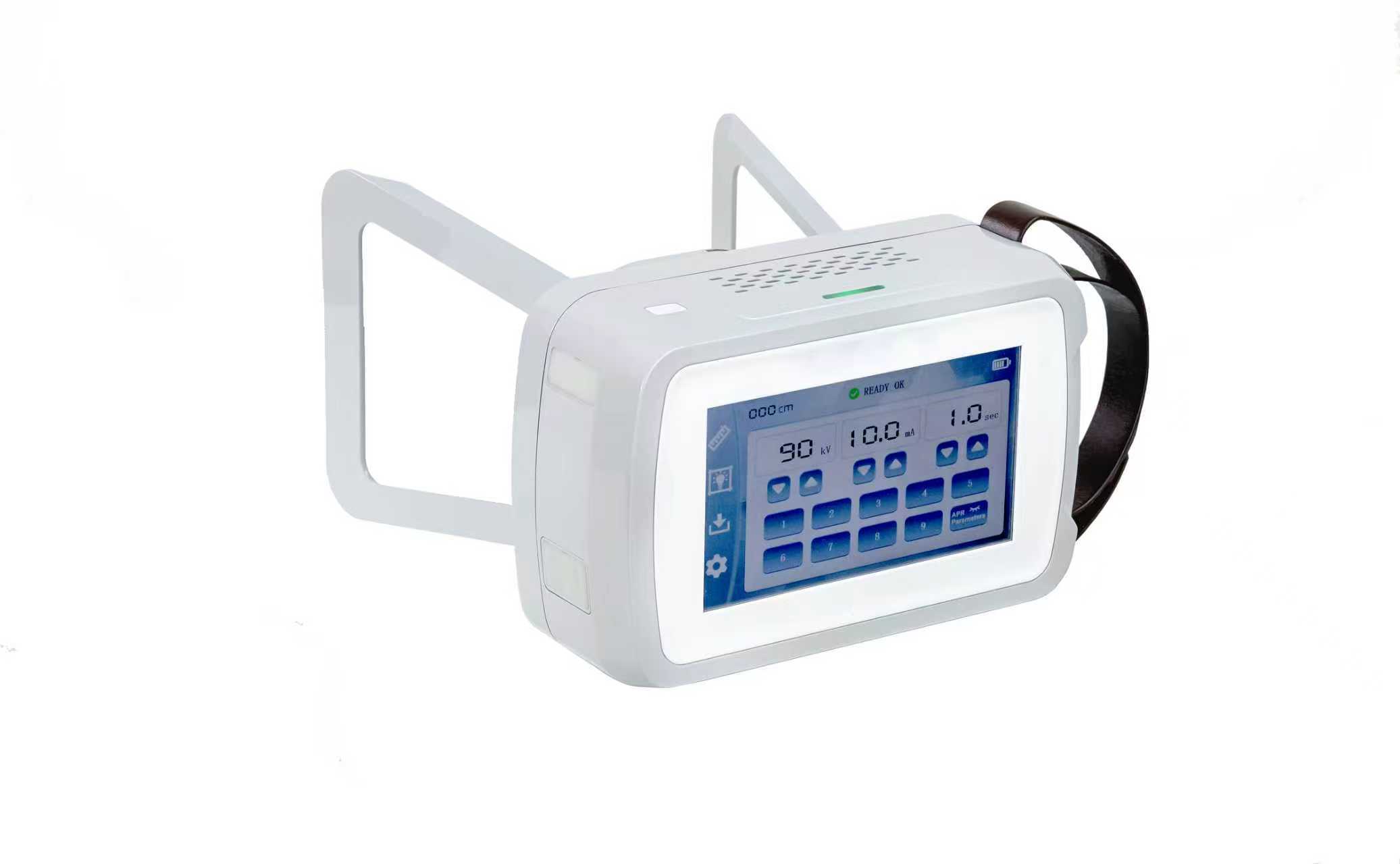

Portable Handheld X-Ray Machine AKBW905

The AK905 redefines mobility in medical imaging. As a true handheld X-ray machine, it eliminates the need for fixed installations and complex setups, enabling imaging wherever the patient is—whether in a remote clinic, at an accident site, or in a veterinary practice. Its ergonomic design and light weight (only 3.5 kg) make it easy to carry and operate by a single technician.

Equipped with a 450W power system, it offers adjustable kV (40–90 kV) and mA (0.5–5 mA) settings, along with exposure times from 0.1 to 2 seconds, providing flexibility for imaging different body parts and patient sizes. The machine features a small focal spot size of 0.8 for enhanced image clarity and includes a built-in battery for cord-free operation. Safety is ensured with a total filtration of 1.8mm Al, minimizing radiation exposure.

Key Features:

• Ultra-Portable: Weighs only 3.5 kg, truly handheld and easy to transport.

• Battery-Powered: No need for external power sources, ideal for field use.

• Wide Application: Suitable for human and veterinary use across multiple body parts.

• Low Radiation: Designed with patient and operator safety in mind.

• Optional Image Processing: Can be paired with digital imaging systems for enhanced diagnostics.



  Technical Specifications Comparison

  Parameter	AKBW905	AKBW9010
  Product Model	AKBW905	AKBW9010
  Power	450W	900W
  kV Range	40–90 kV	40–90 kV
  mA Range	0.5–5 mA	1–10 mA
  X-ray Exposure Time	0.1–2 S	0.1–2 S
  Cooling Time	Thirty times the exposure time	Sixty times the exposure time
  Focal Spot Size	0.8	0.8
  Anode Heat Capacity	7000J	7000J
  Total Filtration	1.8mm Al	1.8mm Al
  Power Supply	Battery	Battery
  Remote Exposure Interface	RJ11	RJ11
  Image Processing	Optional	Optional
  Operating Temperature	-10°C to 40°C	-10°C to 40°C
  Dimensions	225 × 155 × 263 mm	225 × 155 × 263 mm
  Weight	3.5 kg	3.8 kg
