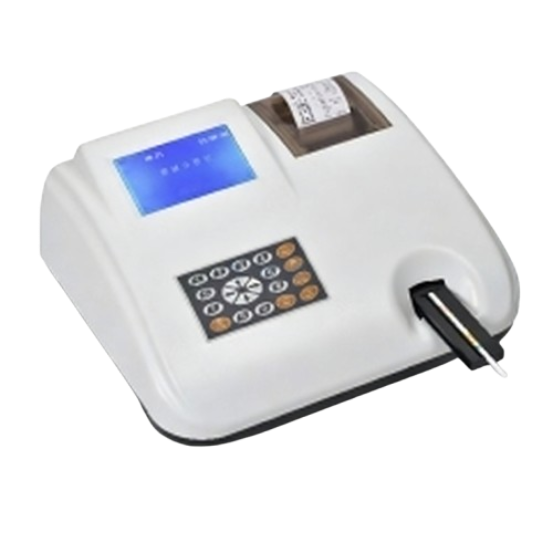

The ArKang AKTE-UA200B is a professional-grade semi-automatic urine analyzer machine engineered to meet the rigorous demands of clinical urine testing. As a vital diagnostic method for disease detection and routine checkups—including prenatal care—this advanced urine analyzer machine delivers precise, consistent results with enhanced operational safety. Its intelligent design integrates automated urine absorption to prevent cross-contamination, making it a hygienic and reliable choice for any medical setting.
Comprehensive 14-Parameter Testing: This versatile urine analyzer machine performs accurate analysis of 14 essential urine parameters including LEU, NIT, URO, PRO, PH, BLD, SG, VC, KET, BIL, GLU, MALB, CRE, and CAL, supporting 10, 11, and 12-panel urine strips.
Efficient & Continuous Operation: With a testing speed of 60 strips/hour for single tests and over 120 strips/hour in continuous mode, this efficient urine analyzer machine optimizes workflow in busy laboratories and clinics.
Hygienic & Safe Design: The machine features automatic excess urine absorption, effectively preventing cross-infection and ensuring a cleaner, safer testing environment—a critical feature for any modern urine analyzer machine.
Built-in Printing & Connectivity: Equipped with a thermal printer inside and an external printer interface, this urine analyzer machine allows for immediate report generation. RS232 connectivity enables seamless data transfer to a PC for comprehensive record management.
Stable & Reliable Performance: Utilizing single-chip control technology, this durable urine analyzer machine enhances system stability and reliability, ensuring consistent performance day after day.
User-Friendly Operation: Supporting multiple languages (English, Chinese, or OEM) and featuring a straightforward interface, this intuitive urine analyzer machine is easy to operate with minimal training required.
| Feature | Specification |
|---|---|
| Model | AKTE-UA200B |
| Brand | ArKang |
| Test Principle | Photoelectric Colorimetry |
| Test Parameters | LEU, NIT, URO, PRO, PH, BLD, SG, VC, KET, BIL, GLU, MALB, CRE, CAL |
| Test Strip Compatibility | At most 4 kinds of testing strips (10, 11, 12 panels) |
| Testing Speed | Single test: 60 strips/hour, Continuous: >120 strips/hour |
| Data Memory | 1000 test results |
| Printer | Built-in thermal printer + External printer interface |
| Communication Interface | RS232 (Baud Rate: 9600bps) |
| Language Options | English, Chinese, or OEM |
| Operating Environment | 0–40°C, Relative Humidity <85% |
| Power Supply | AC 220V, 50–60Hz, ≤60W |
| Fuse Specification | 250V 2A |
| Net Weight | 4 Kg |
| Dimensions (L×W×H) | 355mm × 300mm × 145mm |
The AKTE-UA200B is perfectly suited for:
Hospital Laboratories & Clinics – for routine diagnostic urinalysis
Prenatal & Maternity Care Centers – for essential urine testing during pregnancy
Community Health Centers – for accessible and reliable patient screening
Medical Research Facilities – for clinical studies and data collection
Urgent Care & Outpatient Facilities – for rapid test results and decision-making
