The AKV17CE is a professional wired flat panel detector designed and manufactured by ArKang. Built with a‑Si TFT technology and a CsI scintillator, this wired flat panel detector delivers high sensitivity, stable performance, and consistent imaging quality for digital radiography applications. The wired design ensures reliable data transmission and seamless integration into fixed radiography rooms, clinics, and general imaging centers.
Core Features and Advantages
-
Advanced Imaging Technology
This wired flat panel detector adopts a‑Si TFT + photodiode technology paired with a high‑efficiency CsI scintillator, enabling excellent X‑ray conversion and high‑quality image output. The structure provides stable performance and low noise, supporting accurate diagnosis in daily radiography.
-
High Sensitivity for Low‑Dose Imaging
With a high sensitivity of 574 LSB/μGy, the AKV17CE wired flat panel detector efficiently captures X‑ray signals even at lower doses. This helps reduce radiation exposure to patients while maintaining clear and detailed images, ideal for general radiography and pediatric applications.
-

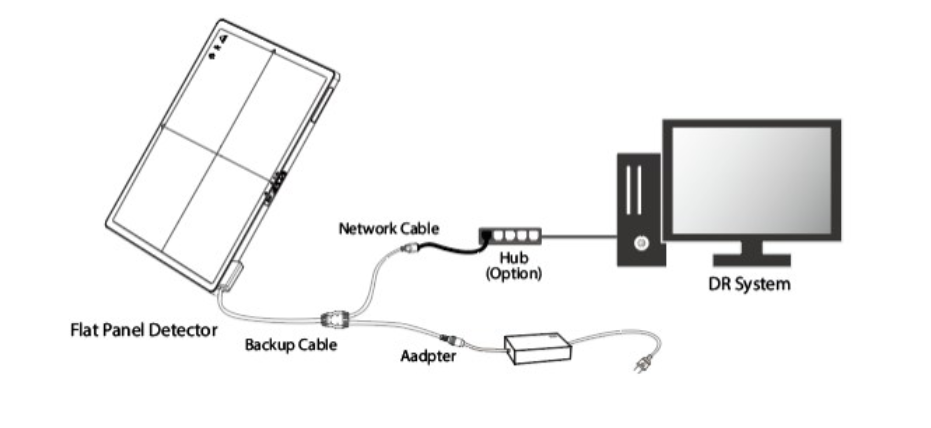

Stable Wired Data Transmission
As a wired flat panel detector, it ensures stable, interference‑free data transfer. The wired connection guarantees consistent communication with the workstation, minimizing data loss and ensuring reliable operation in busy clinical environments.
-
Fast Cycle Time for Smooth Workflow
Featuring a 14.5‑second cycle time, the detector supports continuous imaging sequences, improving patient throughput in radiology departments. The system is optimized for repeated exposures with consistent image quality.
-
Robust Environmental Adaptability
The AKV17CE wired flat panel detector operates reliably under 10–90% RH humidity and can be stored safely between -10°C and 50°C. It is designed to perform consistently in various clinical environments and withstand typical transport and storage conditions.
Technical Specifications Table
| Parameter |
Specification |
| Brand |
ArKang |
| Model |
AKV17CE |
| Product Type |
Wired Flat Panel Detector |
| Detector Technology |
a‑Si TFT + photodiode |
| Scintillator |
CsI |
| Pixel Pitch |
140 μm |
| Cycle Time |
14.5 seconds |
| Sensitivity |
574 LSB/μGy |
| Wire Transfer |
Supported |
| Operating Humidity |
10–90% RH |
| Storage Temperature |
-10°C to 50°C |
| Storage Humidity |
10–90% RH |
Application Scenarios
The ArKang AKV17CE wired flat panel detector is suitable for:
- Hospital Radiology Rooms: General radiography, chest, abdominal, and skeletal imaging
- Medical Imaging Centers: High‑quality digital radiography for routine examinations
- Clinic and Outpatient Departments: Reliable wired flat panel detector for daily diagnostic imaging
- Fixed X‑ray Systems: Stable wired connection for consistent workflow and data reliability
