Urine analysis is a cornerstone of clinical diagnostics, providing valuable insights into a patient’s overall health, kidney function, metabolic status, and potential infections. At the heart of this essential diagnostic process lies the urine analyzer—a device designed to automate, standardize, and enhance the accuracy of urine testing. From small clinics to large hospitals, the urine analyzer machine has become an indispensable tool, replacing labor-intensive manual methods with efficient, reliable testing workflows. This 2026 comprehensive guide explores everything you need to know about urine analyzers, including their definition, testing principles, types, common parameters, benefits, and maintenance, while highlighting key variants like the automated urine analyzer, semi automated urine analyzer, and portable urine analyzer.
A urine analyzer is a clinical instrument designed to detect and quantify multiple chemical and microscopic components in urine samples. Unlike traditional manual testing, which relies on visual inspection of reagent strips and microscopic analysis, a urine analyzer machine streamlines the process by automating reagent reactions, signal detection, and result calculation. This not only reduces human error but also improves testing speed and consistency, making it a vital tool in diagnostics for conditions such as urinary tract infections (UTIs), diabetes, kidney disease, and liver disorders.
Modern urine analyzers range from simple handheld devices to complex laboratory systems, each tailored to specific use cases. Whether it’s a portable urine analyzer for point-of-care testing in remote clinics or an automated urine analyzer handling high volumes in hospital labs, these devices share a core purpose: to deliver accurate, actionable results from a non-invasive urine sample. By analyzing key components in urine, healthcare providers can quickly identify abnormalities, diagnose conditions, and monitor treatment effectiveness.
Most urine analyzers operate based on two primary testing principles: chemical reaction detection and, in advanced models, microscopic analysis. The core component of a urine analyzer machine is a reagent strip (or test strip)—a plastic strip with multiple pads, each impregnated with specific chemicals that react with target substances in urine. When dipped into a urine sample, each pad undergoes a color change proportional to the concentration of the target component.
For chemical analysis, the urine analyzer uses a light source (usually LED) and a photodetector to measure the intensity of the color change on each reagent pad. The device converts this optical signal into a numerical value or qualitative result (positive/negative, trace, 1+, 2+, etc.), which is then displayed or printed. This photometric principle ensures consistency, as it eliminates subjective visual judgment errors common in manual testing.
Advanced automated urine analyzer models also integrate microscopic analysis. These systems automatically centrifuge the urine sample, prepare a slide, and capture high-resolution images of urine sediment (e.g., cells, crystals, casts). Machine learning algorithms or pre-programmed criteria then classify and count these particles, providing detailed microscopic results alongside chemical analysis—all without manual intervention. This combination of chemical and microscopic testing makes modern urine analyzer machines highly versatile diagnostic tools.
Urine analyzers are classified based on their level of automation, portability, and functionality. Understanding the differences between each type helps healthcare facilities select the right urine analyzer machine for their needs, from low-volume clinics to high-throughput laboratories.
Manual urine analyzers are the most basic type, relying heavily on human intervention. They typically consist of a reagent strip holder, a color chart, and sometimes a simple photometric device to enhance accuracy. Healthcare workers dip the reagent strip into the urine sample, wait for a specified time (usually 60-120 seconds), and compare the pad colors to the chart or use the manual photometric tool to measure color intensity. While affordable and easy to use, manual urine analyzers are prone to human error, slow, and unsuitable for high-volume testing. They are mostly used in small clinics or resource-limited settings where testing volume is low.

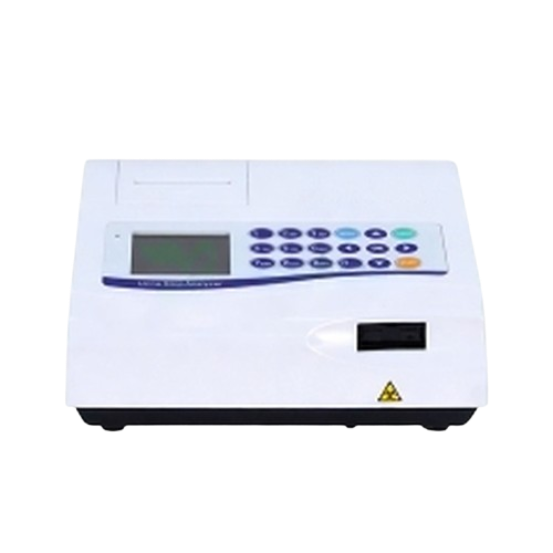

A semi automated urine analyzer balances automation and manual operation, making it ideal for medium-volume testing environments like community clinics and small hospitals. This type ofurine analyzer machine automates the photometric reading of reagent strips, eliminating visual comparison errors. However, sample preparation (e.g., dipping the reagent strip, ensuring proper timing) and loading still require manual handling by staff.
The semi automated urine analyzer typically has a built-in light source and photodetector that reads each pad on the reagent strip, converts the color change into results, and displays them on a screen or prints a report. Some models also offer basic data storage for patient results. Compared to manual analyzers, semi automated urine analyzers are faster, more accurate, and reduce workload—making them a popular choice for facilities that need better efficiency without the high cost of a fully automated system.
The automated urine analyzer is the gold standard for high-volume testing in hospitals, reference laboratories, and large clinics. This advanced urine analyzer machine automates the entire testing process, from sample loading to result reporting, with minimal human intervention. Staff only need to place the urine sample (in a standardized tube) into the machine’s sample rack; the automated urine analyzer then automatically aspirates the sample, dips or applies it to reagent strips, reads the chemical reactions, and (in premium models) performs microscopic sediment analysis.
Modern automated urine analyzers offer high throughput, processing 50-200 samples per hour, and integrate with laboratory information systems (LIS) to transfer results directly to patient records—reducing transcription errors. They also provide more detailed results, including quantitative values for chemical parameters and precise counting of sediment particles. While more expensive upfront, automated urine analyzers save time, reduce labor costs, and deliver consistent, reliable results—critical for large-scale diagnostic operations.
A portable urine analyzer is a compact, lightweight device designed for point-of-care testing (POCT) in settings like emergency rooms, ambulances, remote clinics, or even home use. This type of urine analyzer machine prioritizes portability and speed, delivering results in minutes—ideal for situations where immediate diagnosis is critical (e.g., suspected UTIs in urgent care).
Most portable urine analyzers use disposable reagent strips and a small, battery-powered photometric reader. Some models are handheld, while others are slightly larger but still easy to transport. They typically test for a limited but essential set of parameters (e.g., white blood cells, nitrite, glucose) and display results on a simple screen. While they may not offer the same breadth of testing as automated urine analyzers, portable urine analyzers provide convenience and rapid insights, enabling healthcare providers to make timely treatment decisions without sending samples to a central lab.
Urine analyzers can detect a variety of chemical and microscopic parameters, each providing unique clues for assessing a patient's health status. Taking ArKang's AKTE-UA400 fully automated urine analyzer as an example, the following are the relevant detection parameters and result interpretations for this analyzer.
White blood cells in urine indicate inflammation or infection in the urinary tract. Normal values are typically 0-5 WBCs per high-power field (HPF). Elevated levels (≥10 WBCs/HPF) suggest a UTI, kidney infection, or inflammation of the bladder or urethra. A urine analyzer machine detects WBCs via reagent pad reactions or microscopic counting in automated models.
Nitrite is produced when certain bacteria (e.g., E. coli) convert urinary nitrate to nitrite. A positive nitrite result (detected by urine analyzers) is a strong indicator of a bacterial UTI, as non-pathogenic bacteria rarely produce nitrite. Normal results are negative; a positive result requires further testing (e.g., urine culture) to confirm the infection.
Glucose in urine (glycosuria) occurs when blood glucose levels exceed the kidney’s reabsorption capacity (usually ≥180 mg/dL). Normal urine glucose levels are negative. A positive result may indicate diabetes mellitus, gestational diabetes, or kidney dysfunction. Automated urine analyzers provide quantitative values, helping monitor glucose control in diabetic patients.
Normal urine contains trace amounts of protein (≤10 mg/dL). Elevated protein levels (proteinuria) suggest kidney damage, as healthy kidneys prevent large proteins from passing into urine. Causes include chronic kidney disease, hypertension, diabetes, or urinary tract inflammation. Urine analyzer machines measure protein levels qualitatively (trace, 1+, etc.) or quantitatively in advanced models.
Ketones are byproducts of fat metabolism, produced when the body lacks sufficient glucose for energy. Normal urine ketone levels are negative. Positive results may indicate diabetic ketoacidosis (a life-threatening complication of diabetes), starvation, or excessive exercise. Urine analyzers detect ketones to help diagnose and monitor these conditions.
Bilirubin is a breakdown product of red blood cells, processed by the liver and excreted in bile. Normal urine bilirubin levels are negative. A positive result indicates liver dysfunction (e.g., hepatitis, cirrhosis) or biliary obstruction, as the liver cannot properly process bilirubin, leading to its excretion in urine. Urine analyzer machines detect conjugated bilirubin, the water-soluble form present in urine.
Specific gravity measures urine concentration, reflecting the kidney’s ability to regulate water balance. Normal values range from 1.005 to 1.030. A high specific gravity (≥1.030) indicates concentrated urine, often due to dehydration, diarrhea, or kidney disease. A low specific gravity (≤1.005) suggests dilute urine, caused by overhydration, diabetes insipidus, or kidney failure. Urine analyzers measure specific gravity via reagent pad reactions or refractive index in advanced models.
Platelets in urine (thrombocyturia) are rare in normal urine; their presence indicates bleeding in the urinary tract. Normal values are 0 platelets/HPF. Elevated levels may result from kidney stones, bladder cancer, urinary tract trauma, or coagulation disorders. Automated urine analyzers with microscopic capabilities count platelets in urine sediment.
Urine pH measures acidity or alkalinity, with normal values ranging from 4.5 to 8.0. A low pH (acidic urine, <4.5) may occur due to diabetes, starvation, or urinary tract infections with acid-producing bacteria. A high pH (alkaline urine, >8.0) is associated with UTIs from urea-splitting bacteria, kidney stones (e.g., struvite stones), or metabolic alkalosis. Urine analyzer machines detect pH via reagent pad color changes.
Vitamin C is not a diagnostic parameter but an interference marker. High levels of vitamin C in urine can false-negative results for glucose, blood, bilirubin, and nitrite, as it inhibits reagent reactions. Urine analyzers detect vitamin C to alert healthcare providers to potential interference, ensuring accurate interpretation of other results. Normal values are negative or trace.
The adoption of urine analyzers has transformed urine testing, offering numerous benefits over traditional manual methods. These advantages make urine analyzer machines indispensable in modern healthcare settings.
Urine analyzers eliminate subjective visual judgment errors, as photometric reading and automated counting ensure standardized results. This reduces variability between testers and improves the reliability of diagnostic decisions—critical for conditions like UTIs or diabetes, where early detection depends on accurate results.
A semi automated urine analyzer or automated urine analyzer processes samples far faster than manual testing. Automated urine analyzers handle high volumes, reducing turnaround time from hours to minutes, while portable urine analyzers deliver immediate results at the point of care. This efficiency allows healthcare providers to diagnose and treat patients faster, improving patient outcomes.
Manual urine testing requires skilled staff to perform and interpret tests, while automated urine analyzers minimize human intervention. This frees up staff time for other tasks, reducing labor expenses for clinics and laboratories. Even semi automated urine analyzers reduce workload by automating result reading, making testing more efficient.
Modern urine analyzer machines test for multiple parameters simultaneously, providing a complete picture of a patient’s health. Advanced automated urine analyzers combine chemical and microscopic testing, eliminating the need for separate instruments. Portable urine analyzers, while more limited, focus on high-priority parameters for urgent care, ensuring versatility across settings.
Automated urine analyzers integrate with LIS, allowing results to be stored, tracked, and shared electronically. This reduces transcription errors, improves patient record-keeping, and enables easy monitoring of chronic conditions (e.g., diabetes, kidney disease) over time.
Proper maintenance and care are essential to ensure the accuracy, reliability, and longevity of a urine analyzer machine. Neglecting maintenance can lead to incorrect results, equipment downtime, and increased costs. Below are key maintenance practices for different types of urine analyzers.
Daily maintenance: Before use, clean the urine analyzer’s exterior with a mild disinfectant to prevent cross-contamination. Forsemi automated urine analyzers and automated urine analyzers, run a calibration check using quality control (QC) samples to verify accuracy. Replace reagent strips if they are expired, damaged, or exposed to moisture (as this can affect reactions). For portable urine analyzers, ensure batteries are charged and replace disposable components (e.g., test strip holders) as needed.
Weekly maintenance: Clean the reagent strip reader and sample aspiration system (in automated urine analyzers) to remove urine residue and prevent clogs. Check for worn parts (e.g., belts, sensors) and replace them if necessary. Calibrate the photometric system using manufacturer-provided standards to maintain accuracy. For models with microscopic capabilities, clean the slide preparation area and lens to ensure clear imaging.
Monthly maintenance: Perform a comprehensive calibration and QC check using high, normal, and low control samples to verify the urine analyzer machine’s performance across all parameter ranges. Inspect the electrical components (e.g., power cords, connectors) for damage and ensure proper grounding. For automated urine analyzers, clean the centrifuge and sediment analysis system to prevent particle buildup.
Long-term care: Store urine analyzers in a clean, dry environment with stable temperature and humidity (avoid extreme conditions). Follow the manufacturer’s guidelines for reagent storage (most reagent strips require refrigeration or cool, dry storage). Schedule regular professional servicing (annually or as recommended) to inspect internal components, update software (for automated urine analyzers), and address potential issues before they affect performance.
Troubleshooting tips: If results are inconsistent, check for expired reagents, contaminated samples, or calibration errors. For clogs in automated urine analyzers, use manufacturer-approved cleaning solutions to unblock the aspiration system. If a portable urine analyzer fails to power on, replace batteries or check the power connection. Always refer to the user manual for model-specific troubleshooting.
Theurine analyzer is an essential diagnostic tool that has revolutionized urine testing, offering accuracy, efficiency, and versatility across healthcare settings. From the basic manual analyzer to the advanced automated urine analyzer, the semi automated urine analyzer, and the convenient portable urine analyzer, each type ofurine analyzer machine caters to specific needs—ensuring that clinics, hospitals, and point-of-care facilities can deliver timely, reliable diagnostics.
By understanding the testing principles, types, common parameters, and maintenance requirements of urine analyzers, healthcare providers can maximize the value of these devices, improve patient care, and streamline diagnostic workflows. As technology advances, urine analyzer machines will continue to evolve—integrating artificial intelligence for more precise microscopic analysis, enhancing connectivity with digital health systems, and becoming even more compact and user-friendly.
In 2026 and beyond, the urine analyzer remains a cornerstone of preventive care, disease diagnosis, and treatment monitoring. Whether detecting a simple UTI with a portable urine analyzer or conducting comprehensive testing with an automated urine analyzer, these devices play a critical role in helping healthcare providers deliver accurate, patient-centered care. By investing in the right urine analyzer machine and following proper maintenance practices, facilities can ensure consistent, reliable results for years to come.
Urine analyzers provide highly accurate and standardized results for routine urine analysis. They effectively detect abnormalities in urine, such as glucose, protein, ketones, and blood. With calibrated sensors and chemical test strips, they provide reliable diagnostics, minimizing human error and aiding in the early detection of infections, kidney disease, and metabolic disorders.
To maintain the urine analyzer, clean the optical sensor and test strip tray with a lint-free cloth after each use. Avoid moisture and use only the recommended cleaning agents. Regular calibration, software updates, and regular maintenance ensure stable and reliable instrument performance and accurate results. Always follow the manufacturer's maintenance guidelines.
Urine analyzers are widely used in hospitals, diagnostic laboratories, and clinics to assess a variety of health conditions. They help diagnose urinary tract infections, kidney disease, diabetes, and liver disease. In addition, they are used for routine health screenings, preoperative assessments, and monitoring treatment effectiveness in general and specialized medical settings.
The basic functions of a professional urine chemistry analyzer include the automatic detection and analysis of routine urine parameters (such as glucose, protein, pH, ketones, bilirubin, urobilinogen, occult blood, nitrite, white blood cells, and specific gravity). It can automatically read test strip color changes and calculate results. It also features result display, printing, storage, and data transmission capabilities with a Laboratory Information System (LIS). Furthermore, it includes quality control management, calibration prompts, and a user-friendly interface to ensure accuracy, reliability, and efficiency.
Digital urine analyzers (including smartphone-based, point-of-care, and hospital-automated readers) offer high accuracy for routine screening—laboratory consistency of key indicators typically exceeds 90%—but they are often less accurate for complex diagnoses, such as identifying casts or specific crystals, where specialized laboratory methods are more effective.
For small clinics, the best urine test strip is a compact, semi-automatic, CLIA-exempt benchtop device. These offer high accuracy and require minimal operator training.
