In the field of medical imaging, flat panel detectors (FPDs) have become a revolutionary technology. They have replaced traditional imaging tools such as X-ray film and image intensifiers, redefining X-ray imaging standards with their high efficiency, clarity, and versatility. In hospital radiology departments, where detailed images of patients' bones are captured, the X-ray flat panel detector is considered a core pillar of modern imaging technology. This article will comprehensively break down the relevant knowledge of flat panel detector X-ray systems, from basic definitions to selection techniques, helping you thoroughly master this crucial device.
A flat panel detector is a digital imaging device specifically designed to capture X-ray radiation and convert it into electronic signals, which are then processed into high-quality digital images. Traditional X-ray films require chemical development, and image intensifiers rely on complex optical systems, whereas the x ray flat panel detector offers a direct digital solution—boasting faster imaging speed, higher stability, and better integration with modern imaging workflows.
In terms of core functionality, the flat panel detector x ray acts as a "digital receiver" for X-rays. When X-ray photons penetrate the object being imaged—whether it is human tissue, aircraft components, or packaged products—the detector captures the variations in the intensity of the transmitted radiation. These intensity differences correspond to the density variations within the object. For instance, dense bones absorb more X-rays, while soft tissues allow more X-rays to pass through. The detector converts these differences into electrical signals, which are then transformed into pixelated digital images that can be instantly viewed, stored, and shared on computers or medical imaging systems.
Today, theflat panel detector is widely used in medical scenarios (such as radiography, fluoroscopy, and mammography) and industrial fields (such as non-destructive testing of materials). Its compact structure, fast imaging speed, and high-resolution characteristics make it an indispensable tool for professionals who rely on accurate X-ray imaging.
A flat panel detector is a system composed of multiple precision-assembled components that work together to convert X-rays into digital images. Although the designs of different models vary, a typical x ray flat panel detector mainly includes the following core components:
This is the front-end component that directly interacts with X-ray photons, and its core function is to convert incident X-ray radiation into visible light—a process known as the "scintillation effect." Common scintillator materials used in the flat panel detector x ray include gadolinium oxysulfide (GOS) and cesium iodide (CsI). Cesium iodide is particularly widely used due to its high X-ray-to-light conversion efficiency and excellent spatial resolution—its crystalline structure can minimize light scattering. Gadolinium oxysulfide, on the other hand, has the advantages of low cost and high durability, making it a suitable choice for scenarios with limited budgets or high requirements for equipment sturdiness.
Located behind the scintillator, this layer is responsible for converting the visible light produced by the scintillator into electrical signals. The photodetector array consists of millions of tiny pixels, each functioning as a small sensor. Currently, there are two main types of commonly used photodetectors: amorphous silicon (a-Si) and amorphous selenium (a-Se). Amorphous silicon is the most widely used; it generates electric charges when exposed to light through a thin silicon film. Amorphous selenium, in contrast, can directly convert X-rays into electrical signals without the need for a scintillator layer, so detectors using this material are called "direct conversion" detectors (which will be elaborated on later).
After the photodetector array generates electrical signals, the readout electronics collect and amplify these signals. This component includes thin-film transistors (TFTs) or charge-coupled devices (CCDs), which read the charge signals of each pixel in sequence. The TFT array is particularly crucial in modern flat panel detectors—it acts like a "grid" that can individually "address" each pixel, ensuring that the signals from each pixel are accurately captured and converted into a digital format.
The front side of the x ray flat panel detector is equipped with a thin, radiation-transparent protective layer (usually made of carbon fiber or aluminum alloy), which not only protects the internal components from physical damage and contamination but also allows X-rays to pass through unobstructed. The entire detector assembly is enclosed in a sturdy housing that can resist moisture, dust, and mechanical impact—this is crucial for use in busy hospitals or industrial environments.
The working principle of a flat panel detector can be divided into two main categories: indirect conversion and direct conversion. Both methods ultimately produce digital images, but they differ in the process of converting X-ray radiation into electrical signals. The working processes of these two types will be broken down below:
The indirect conversion flat panel detector x ray is currently the most widely used type, and it completes the conversion of X-rays into digital images through two steps. Step 1: Scintillation. When X-ray photons strike the scintillator layer (such as cesium iodide or gadolinium oxysulfide), the scintillator absorbs the X-ray energy and emits visible light. The amount of light emitted is proportional to the intensity of the X-rays reaching the scintillator—so areas with less X-ray penetration (such as bones) produce less light, while areas with more penetration (such as soft tissues) produce more light. Step 2: Photoelectric conversion. The visible light from the scintillator then irradiates the photodetector array (usually made of amorphous silicon). Each pixel in the array absorbs the light and generates an electric charge proportional to the light intensity. Step 3: Signal readout. The readout electronics (TFT array) collect the charges from each pixel, amplify the signals, and convert them into a digital format. A computer then processes these digital signals into a grayscale image, where different shades correspond to different tissue or material densities.
The direct conversion x ray flat panel detector simplifies the conversion process by directly converting X-rays into electrical signals without the need for a scintillator layer. Its working process is as follows: Step 1: X-ray absorption. The amorphous selenium (a-Se) photodetection layer directly absorbs X-ray photons, generating electron-hole pairs (charged particles) in the process, and the number of these pairs is proportional to the X-ray intensity. Step 2: Charge collection. By applying an electric field across the amorphous selenium layer, electrons and holes are pulled to both sides of the detection layer, causing each pixel to generate a charge. Step 3: Signal readout. Similar to indirect conversion detectors, the readout electronics collect and digitize these charge signals, which are then processed into digital images. Direct conversion detectors have higher spatial resolution and faster response speeds, making them particularly suitable for application scenarios such as fluoroscopy (real-time imaging) that have high requirements for clarity and speed.
Regardless of the conversion method, the final digital image can be adjusted for brightness, contrast, and zoom ratio using imaging software—this is a function that traditional X-ray films cannot achieve at all. This flexibility allows radiologists or technicians to highlight specific details, thereby improving diagnostic accuracy.
The rapid popularization of the flat panel detector stems from its numerous significant advantages over traditional imaging technologies. To more clearly demonstrate its technical value, it will be compared with two traditional devices: image intensifiers and X-ray films below.
Image intensifiers were once the mainstream equipment for real-time X-ray imaging (fluoroscopy), but compared with the x ray flat panel detector, their limitations are very obvious. First, in terms of size and weight, image intensifiers are large and heavy, requiring bulky brackets or gantries for support, which makes them inconvenient to move and difficult to use in narrow spaces or mobile scenarios. In contrast, the flat panel detector is thin, light, and portable, with some models weighing less than 5 kilograms, easy to position, and very suitable for mobile application scenarios such as bedside imaging in emergency rooms. Second, in terms of image quality, image intensifiers have problems of "vignetting (edge darkening)" and "distortion (geometric distortion)", which are particularly prominent at the edges of the field of view. The flat panel detector x ray, however, can generate uniform and distortion-free images with consistent brightness across the entire detection surface. Finally, in terms of radiation dose, image intensifiers require a higher X-ray dose to generate clear images, increasing the risk of radiation exposure for patients and medical staff. The flat panel detector has higher sensitivity to X-rays, and can reduce the required radiation dose by up to 50% in some scenarios, which is crucial for ensuring patient safety.
X-ray films have dominated the field of medical imaging for decades, but due to the significant advantages of the flat panel detector in efficiency and flexibility, films are being rapidly replaced. First, in terms of processing time, X-ray films require chemical development, which takes 5-10 minutes (or even longer in some scenarios). In emergency scenarios where rapid diagnosis is required, this delay may be life-threatening. The x ray flat panel detector, however, can generate images in seconds, allowing radiologists to make immediate judgments. Second, in terms of image storage and sharing, film images are in physical form, which not only takes up storage space but also is difficult to share with other hospitals or experts. The digital images generated by the flat panel detector x ray can be stored in Picture Archiving and Communication Systems (PACS), accessed at any time via the Internet, and shared instantly via email or cloud platforms. Third, in terms of cost and waste, films are expensive to purchase, process, and store, and used films generate hazardous chemical waste (from development). The flat panel detector has a higher upfront investment, but it eliminates the ongoing costs of films and chemical reagents, making it more cost-effective in the long run. Fourth, in terms of image processing, film images are fixed, and their brightness and contrast cannot be adjusted after development. The digital images of theflat panel detector, however, can be enhanced using software, allowing doctors to zoom in on details, adjust contrast to highlight abnormal areas, and even perform 3D reconstruction.
Flat panel detectors can be classified according to conversion method, portability, and application scenarios. Understanding these types is key to selecting a suitable x ray flat panel detector:
As mentioned earlier, indirect conversion detectors (the most commonly used type) adopt a scintillator and a photodetector array, which are cost-effective and stable in performance, suitable for most medical and industrial scenarios. Direct conversion detectors (using amorphous selenium) have higher resolution and faster imaging speed, suitable for fluoroscopy, mammography, and high-precision industrial testing, but they are more expensive than indirect conversion models.
Fixed flat panel detector x ray systems are permanently installed in imaging rooms (such as radiography suites) and are designed for high-throughput testing. They are larger in size, with a detection area of up to 43 cm × 43 cm, and have high processing efficiency. Portable flat panel detectors are lightweight (2-10 kg) and battery-powered, suitable for bedside imaging in hospitals, mobile clinics, or on-site industrial testing. Their detection area is usually smaller (17 cm × 17 cm or 24 cm × 30 cm), but their image quality is comparable to that of fixed models.
Medical flat panel detectors are optimized for human tissue imaging, with high resolution (up to 100 line pairs per millimeter) and low noise, enabling accurate detection of small abnormalities such as tumors and fractures. Industrial x ray flat panel detectors are specifically designed for non-destructive testing, with a sturdier structure and strong radiation resistance, capable of detecting small defects in materials such as metals, plastics, and concrete. Mammography-specific detectors are a subset of medical FPDs, with ultra-high resolution to clearly image dense breast tissue.
Selecting a suitable flat panel detector requires comprehensive consideration of application scenarios, performance requirements, and budget. The following are the core factors that need to be focused on:
The core application scenario determines the type of x ray flat panel detector required. For routine chest or bone X-ray examinations in hospital radiology departments, an indirect conversion fixed detector with a size of 30 cm × 40 cm is a cost-effective choice. Emergency rooms or mobile clinics are suitable for equipping with a 17 cm × 17 cm portable indirect conversion detector, and it is necessary to ensure a strong battery life. In fluoroscopy scenarios that require real-time imaging such as angiography, a direct conversion detector with a frame rate of up to 30 frames per second is essential. In industrial testing, for large components such as pipelines, an industrial-grade flat panel detector x ray with strong radiation resistance and a large detection area should be selected.
Resolution and sensitivity are the core performance indicators of a flat panel detector. Resolution (measured in line pairs per millimeter or pixel size) determines the size of details that the detector can capture. Higher resolution is more suitable for scenarios such as mammography (where small tumors need to be detected) or industrial testing (where tiny cracks in welds need to be identified). Most medical detectors have a resolution of 2.5-5 line pairs per millimeter (pixel size of 100-200 microns), and mammography-specific detectors can reach a resolution of up to 10 line pairs per millimeter. Sensitivity refers to the efficiency with which the detector converts X-rays into electrical signals. Higher sensitivity means lower radiation doses required in medical scenarios or shorter exposure times in industrial scenarios. When purchasing, attention should be paid to the Detective Quantum Efficiency (DQE) of the detector—this indicator reflects the efficiency of the detector in utilizing X-ray energy, and a DQE of 60% or higher is considered excellent for medical applications.
The size of the detector (measured by the effective detection area) should match the size of the object being imaged. In routine medical imaging (chest, abdomen), a 30 cm × 40 cm detector is the standard configuration, which can capture the entire area in a single exposure. For extremity imaging (hands, feet), a smaller detector (17 cm × 17 cm) is more efficient. In industrial testing of large components such as aircraft wings, a detector with an active area of 43 cm × 43 cm or larger may be required. It should be noted that larger detectors are heavier and more expensive, so a size that meets the needs without redundancy should be selected.
Budget is a crucial factor when choosing a flat panel detector. Fixed indirect conversion detectors range in price from $20,000 to $80,000, depending on size and resolution; portable indirect conversion detectors range from $15,000 to $50,000; direct conversion detectors are more expensive, ranging from $50,000 to $150,000; and industrial detectors may be even more expensive due to their ruggedness and performance variations.
When budgeting, ongoing costs must also be considered: maintenance costs (such as calibration and protective layer replacement), software upgrade costs, and accessory costs (such as portable detector brackets and batteries). It is essential to confirm these ongoing expenses with the supplier at the time of purchase and to choose manufacturers with comprehensive after-sales service. For example, some manufacturers offer longer warranties, which will reduce your repair expenses in the long run.
While different types of flat panel detectors will have price differences, budgeting should be done with a long-term perspective. For example, for high-throughput facilities, although direct conversion detectors have a higher initial investment, their lower radiation dose and faster imaging speed can lead to long-term cost savings, making them more cost-effective in the long run.

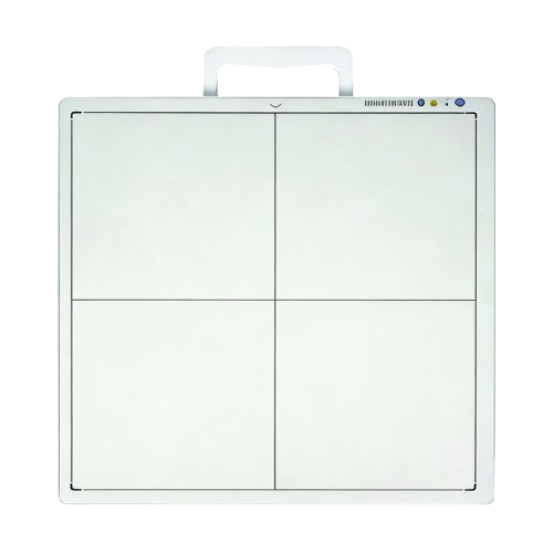

ArKang, as a leading X-ray machine supplier, naturally also provides flat panel detectors compatible with X-ray machines. Below are some of their best-selling flat panel detectors, plus special year-end promotions – don't miss out!
In April 2025, a Philippine general hospital consulted us regarding a flat panel detector. The hospital required a spatial resolution of at least 3.2 LP/mm, a dynamic range of at least 16 bits, an imaging time of no more than 3 seconds after exposure, support for continuous imaging, and seamless integration with its existing Siemens DR equipment.
Upon receiving the inquiry, we quickly established a dedicated service team. Through video conferencing and email communication, we conducted multiple rounds of discussions with the hospital's radiology director and equipment manager. Based on our research, we recommended our independently developed 17×17-inch amorphous silicon flat panel detector. This product boasts core advantages such as high resolution, fast imaging, and low dose, and has obtained multiple international certifications including CE and FDA, fully complying with Philippine import standards. Simultaneously, to address the client's adaptation needs, our technical team proactively engaged with Siemens to complete compatibility testing, ensuring direct integration with the existing system.
During our communication, we learned that the client had a limited budget, and purchasing similar products from Europe and America would exceed their budget. As the original manufacturer, we eliminated intermediaries and offered them a price 15% lower than comparable European and American products, making it a very attractive investment for them.
Soon, this batch of flat panel detectors flew from Guangzhou, China to their destination. After being put into use, the efficiency of the hospital's radiology department significantly improved. Imaging time was greatly reduced, and diagnostic quality steadily improved. The head of the radiology department stated, "Accurate imaging diagnosis not only increases patients' trust in the hospital but also gives us a greater competitive advantage in the regional healthcare market." Currently, this batch of flat panel detectors has been in use for approximately seven months, and there have been no after-sales issues.
The flat panel detector has revolutionized X-ray imaging technology, replacing traditional devices such as films and image intensifiers with faster, more accurate, and more flexible digital solutions. Whether using an x ray flat panel detector to diagnose bone fractures in a hospital or utilizing a flat panel detector x ray system to inspect welds in a factory, this technology can provide stable, high-quality images that strongly support decision-making.
From core components (scintillator, photodetector array, readout electronics) to two main working principles (indirect conversion and direct conversion), the flat panel detector is an engineering masterpiece that balances performance and practicality. Its advantages such as low radiation dose, instant imaging, and easy storage and sharing make it an essential tool in modern medical and industrial fields.
When selecting a flat panel detector, focus should be placed on specific application scenarios: choose a portable model for mobile scenarios, a direct conversion model for real-time imaging, and a high-resolution model for mammography or industrial precision inspection. At the same time, factors such as resolution, sensitivity, size, and budget should be comprehensively considered to find the most suitable product.
With the continuous advancement of technology, the flat panel detector will continue to evolve, becoming more sensitive, smaller, and more economical. For professionals in the fields of medical imaging and industrial testing, keeping abreast of the latest technological developments of the x ray flat panel detector is key to providing high-quality services—whether it is saving patients' lives or ensuring the safety of industrial components, the flat panel detector will play an increasingly important role.
