Portable ultrasound is a core examination tool in clinical diagnosis and treatment, offering advantages such as safety, non-invasiveness, and no radiation, unlike X-ray equipment. With continuous advancements in ultrasound technology and constantly improving image clarity, it can also be combined with artificial intelligence-assisted diagnosis. This article will detail the advantages, application scenarios, working principles, and types of portable ultrasound to help you gain a comprehensive understanding.
1. What is a portable ultrasound machine?
A portable ultrasound machine is a lightweight, mobile, and rechargeable medical device that uses high-frequency ultrasound waves to generate real-time images of organs, tissues, and blood flow inside the human or animal body. The advent of portable ultrasound machines has further expanded the innovative application scope of ultrasound examination technology, allowing patients to receive treatment and diagnosis at the bedside or even at home. Clinicians no longer need to move patients to examination rooms for medical imaging; instead, they can bring this technology directly to the point of care.
2. What are the advantages of a portable ultrasound machine over high-end cart-based ultrasound systems?
Although high-end cart-based ultrasound systems offer high diagnostic value, they are usually expensive and difficult to transport. Due to environmental limitations in daily practice, portable ultrasound machines are essential for patient diagnosis and treatment. Since the first portable ultrasound machine was launched in 1998, it has gained great popularity for its portability and quickly become widespread in the medical field. Moreover, the development of portable ultrasound devices has been accelerating with no signs of slowing down. Today, portable ultrasound machines deliver increasingly better performance and are used in cardiology, vascular medicine, radiology, endocrinology, pediatrics, obstetrics and gynecology, and other specialties. Thanks to their portability, clear imaging, and accurate diagnostic results, they are especially suitable for fast-paced, high-workload departments such as emergency and critical care units.
Compared with high-end cart-based ultrasound systems, portable ultrasound machines have the following strengths:
- Cost-effective: A portable ultrasound machine costs only one-fifteenth of traditional ultrasound equipment, offering exceptional value for money.
- Easy to use: With a more compact size, portable ultrasound machines are generally user-friendly; an examination with a portable or handheld ultrasound machine takes only a few minutes.
- Portability: As the core feature, it enables clinicians to perform examinations anytime and anywhere without environmental constraints, greatly improving the efficiency of ultrasound scans.
- Safety: After more than 20 years of development, portable ultrasound machines have become reliable medical devices. The U.S. Food and Drug Administration (FDA) states that “ultrasound imaging has been used for over 20 years and has an excellent safety record.”
- Ideal for fast-paced, high-workload departments
3. What are the applications of a portable ultrasound machine?
Portable ultrasound machines provide real-time bedside diagnosis in emergency rooms, ambulances, and rural clinics, enabling rapid assessment of internal injuries, cardiac function, and fetal monitoring. These handheld ultrasound machines and laptop ultrasound machines excel in guiding procedures such as puncture, biopsy, and nerve block.
The main applications include:
- Bedside clinical examination: Rapid diagnosis in emergency, ICU, and operating rooms without moving patients
- Pregnancy examination: Early pregnancy screening, fetal heart rate monitoring, and fetal position assessment for humans and animals
- Abdominal organs: Routine examination of liver, gallbladder, pancreas, spleen, kidneys, bladder, and gynecological conditions
- Cardiovascular: Cardiac structure, vascular blood flow, and thrombosis screening
- Musculoskeletal: Evaluation of joint, tendon, and soft tissue injuries
- Interventional guidance: Real-time positioning for puncture, fluid aspiration, catheterization, and other procedures
- Primary care / field / vehicle-mounted: Community clinics, ambulances, physical examination vehicles, and diagnosis in remote areas
- Wide veterinary use: Pregnancy check for cattle, sheep, and pigs; pet diagnosis; on-site examination of large animals
4. What is the working principle of a portable ultrasound machine?
The core principle of a portable ultrasound machine is the transmit–reflect–receive–image process using high-frequency ultrasound waves, converting internal structures of humans or animals into visual images with no radiation and real-time imaging.
4.1 Basic Physical Principles
- Ultrasound: High-frequency sound waves with a frequency >20,000 Hz (inaudible to the human ear)
- Propagation: Travels fast in soft tissues and fluids; attenuates or reflects strongly in gas and bone
- Reflection rule: Echoes reflect at interfaces between different tissues; the greater the density difference between tissues, the stronger the echo
4.2 Overall Working Process
The main unit applies high-frequency electrical pulses to the piezoelectric crystals in the probe. The crystals convert electrical energy into mechanical vibration via the inverse piezoelectric effect, emitting high-frequency ultrasound waves. After entering the body through ultrasound gel, the waves reflect at interfaces of different tissues; the reflection intensity depends on the acoustic impedance difference between tissues. The reflected echoes return to the probe and strike the piezoelectric crystals, which convert mechanical vibration back into weak electrical signals via the direct piezoelectric effect. These signals are sent back to the main unit for amplification and processing. The main unit calculates tissue depth based on echo return time and determines grayscale according to echo intensity, finally forming real-time dynamic 2D B-mode images through rapid continuous scanning.
4.3 Principle Differences Between Portable and Desktop Ultrasound Machines
- The core imaging principles are identical
- Portable units: smaller size, battery-powered, low-power chips, simplified heat dissipation, with performance close to desktop models
- Portable ultrasound machines are suitable for bedside, emergency, vehicle-mounted, field, and on-site veterinary use
5. Types of Portable Ultrasound Machines
5.1 Laptop ultrasound machine
Features
- Form factor: Resembles a laptop, with a screen, keyboard/touchscreen, and pluggable probes; slightly larger but can be carried with one hand
- Performance: Close to desktop machines, clear imaging, complete functions (supports B-mode, color Doppler, Doppler, puncture guidance, etc.)
- Battery life: Long battery life, better heat dissipation, supports continuous operation
- Expandability: Compatible with interchangeable probes (abdominal, cardiac, linear, rectal/veterinary probes, etc.)
Laptop ultrasound machines are widely used in emergency departments, anesthesiology, critical care units, and vascular surgery. Many laptop ultrasound machines are equipped with advanced imaging and artificial intelligence components for capturing diagnostic images and assisting diagnosis. ArKang Medical offers a range of laptop ultrasound solutions, including the AKB-M5 and AKB-M30 ultrasound systems.

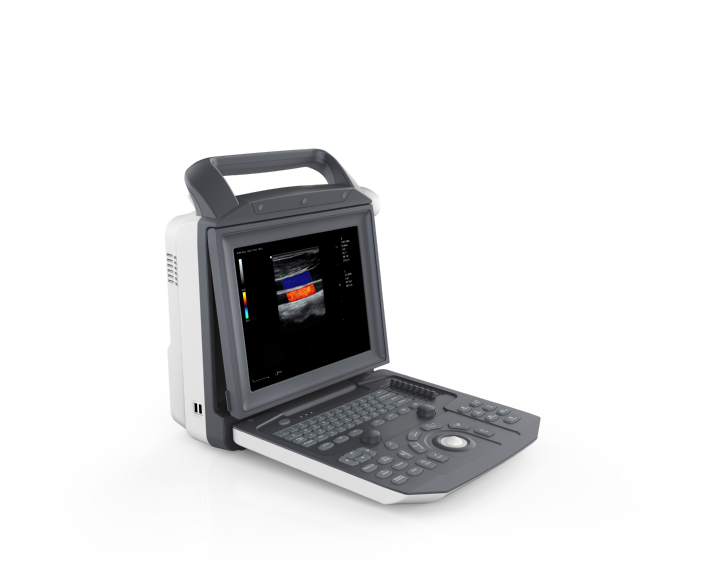

The AKB-M5 is a fully digital color Doppler laptop ultrasound machine that provides a full set of imaging modes (B-mode, M-mode, color Doppler, PDI, PW, CW, color M-mode) for precise imaging. It covers clinical examinations in abdominal, gynecological, obstetric, small organs (thyroid, breast, lymph nodes), cardiology, vascular, urology, orthopedics, and emergency care, suitable for both children and adults (excluding ophthalmic examinations).

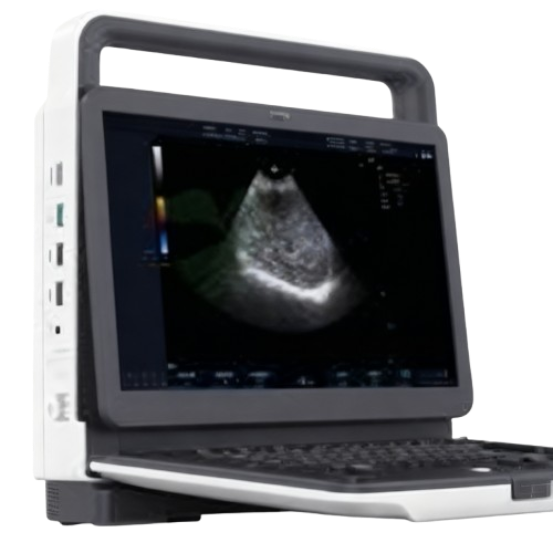

The AKB-M30 combines high-end 3D/4D imaging with exceptional cost-performance and convenience. Weighing only 6.3 kg and equipped with a built-in battery, it is designed for mobility and ideal for point-of-care diagnosis in any department. It delivers top-tier imaging modes and technology at a competitive price.
5.2 Handheld ultrasound machine
Features
- Form factor: Palm-sized, integrated probe + small screen / wireless connection to mobile phones / tablets, ultra-lightweight
- Performance: Meets basic diagnostic needs; some models support color / Doppler, cost-effective
- Battery life: Compact and portable, suitable for rapid screening
- Expandability: Mostly fixed probes or limited options, simplified interfaces
Handheld ultrasound machines are compact and portable, usually connecting to mobile phones or tablets to view diagnostic images for basic diagnosis at a lower cost. ArKang offers various handheld ultrasound machines, such as the AKB-C10RL and AK-V5L.

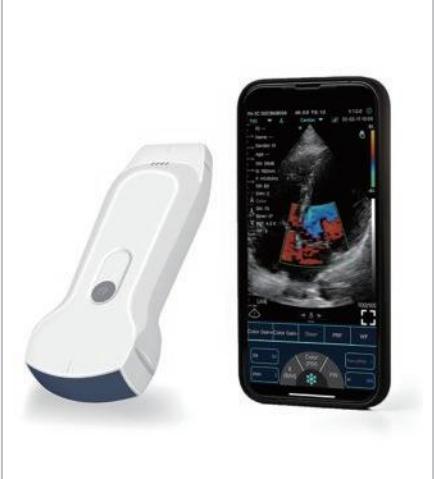

The AKB-C10RL features a 3-in-1 wireless probe integrating convex, linear, and cardiac imaging, supporting more than 16 preset applications including abdominal, gynecological, obstetric, cardiology, urology, nephrology, and pulmonary examinations, with outstanding cost-performance.

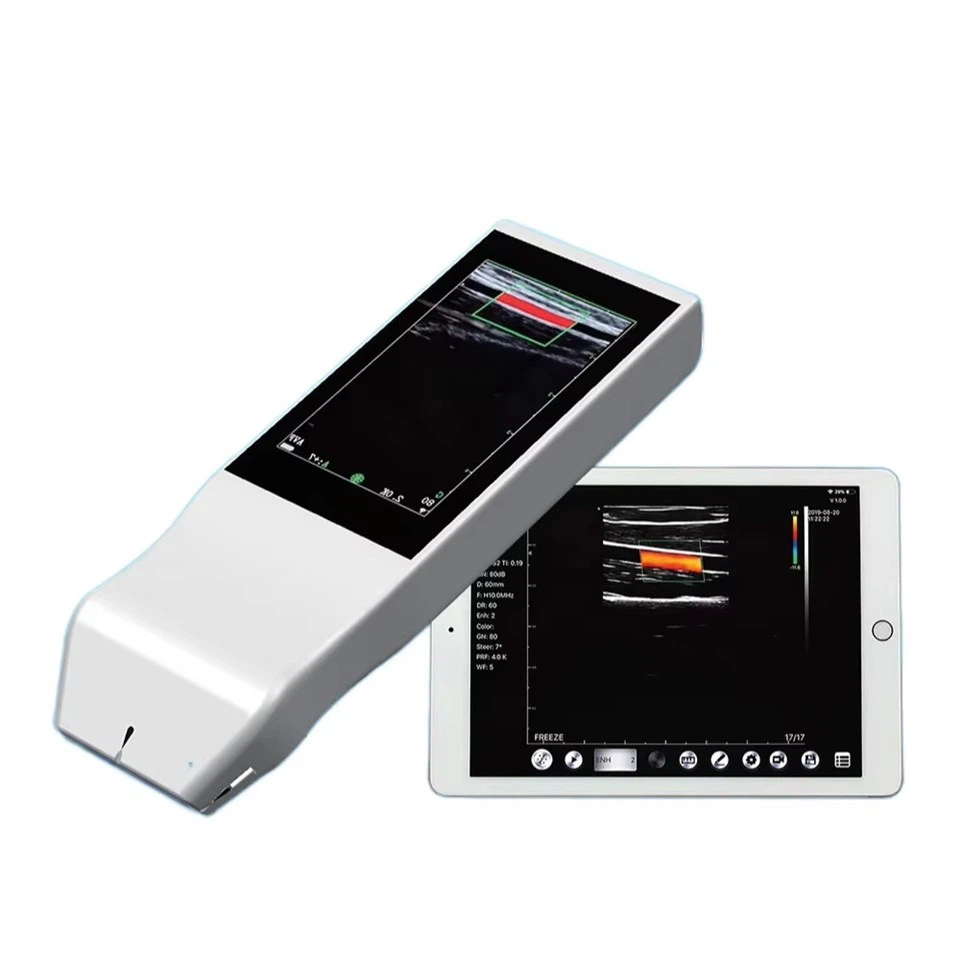

The AK-V5L handheld portable ultrasound device produces high-resolution images anytime and anywhere. Equipped with a rechargeable long-life battery and no need for external cables or bulky accessories, it is easy to operate in all scenarios and suitable for clinical examinations in vascular, abdominal, cardiology, obstetrics and gynecology, musculoskeletal, and other departments.
6. How to Use a Portable Ultrasound Machine
6.1 Laptop ultrasound machine
- Startup preparation: Connect power or activate the battery, turn on the system; select the corresponding examination mode (B-mode / color Doppler / Doppler) and install a matching probe (abdominal, cardiac, veterinary probe, etc.).
- Site preparation: Expose the examination area and apply ultrasound gel (to eliminate air and improve imaging quality).
- Scanning operation: Hold the probe gently against the skin, slowly translate, tilt, and rotate to observe real-time images on the screen; adjust depth, gain, and focus for clear visualization.
- Image storage and export: Freeze / save images, record videos, and label information; support data export via USB drive, WiFi, or workstation.
- Shutdown and cleaning: Exit the examination mode, shut down properly; clean the probe and body with a soft cloth, and store the probe and accessories.
6.2 Handheld ultrasound machine
- Startup and pairing: Press and hold the power button to turn on; wireless models need to connect to a mobile phone / tablet APP, wired models connect directly to the device.
- Examination settings: Select the examination mode (abdominal, musculoskeletal, pregnancy check, etc.) and adjust basic parameters (depth, brightness).
- Rapid scanning: Apply gel to the probe, place directly on the examination area, and complete scanning with one hand; view real-time images on the device screen or mobile phone.
- Saving and sharing: One-click screenshot / video recording, quick saving, sharing, or report generation in the APP.
- Cleaning and storage: Wipe and clean the probe, turn off and store; some models are waterproof and can be rinsed directly.
7. Common Problems with Portable Ultrasound
“How much is a portable ultrasound machine” is one of the most frequently asked questions. The answer depends on the device and its corresponding functions. Generally, high-end cart-based machines are the most expensive, followed by laptop ultrasound machines, and handheld ultrasound machines are the most affordable. For more information on ultrasound pricing, please refer to ArKang’s article.
“Which portable ultrasound machines are worth buying?” is another common question. With numerous suppliers and models on the market, many users want recommendations for cost-effective models. For specific suggestions, please read ArKang’s article 15 Cost-Effective Portable Ultrasound Machines. We also recommend choosing the most suitable portable ultrasound machine based on your actual needs.
8. Conclusion
At present, the portable ultrasound machine has become an indispensable tool for clinical diagnosis. As a professional ultrasound equipment supplier, ArKang understands the critical role of high-quality devices in accurate diagnosis. Limited by economic conditions, Africa faces insufficient access to high-quality medical equipment and relatively slow medical development. Therefore, ArKang focuses on Africa as a core market, dedicated to developing cost-effective portable ultrasound machines that deliver excellent imaging performance and stability at affordable prices, helping to advance the medical industry in Africa. For more details about ArKang’s ultrasound products, please visit our product pages.
