Radiographic examination is an important part of daily clinical dental diagnosis and treatment. It is estimated that up to 1.4 billion dental X-ray examinations are performed in the United States each year, and 30% of the population in need of care require oral health support, 60% of whom are unable to visit dental clinics. This highlights the importance of the portable dental x ray machine.
This article focuses on the core structure, working principle, advantages, correct usage, and applicable scenarios of portable dental x ray machine, and evaluates the image quality compared with wall-mounted dental X-ray machine, to help readers better understand this device.
1. Core Structure and Working Principle of Portable Dental X-ray Machine
1.1 Core Structure
The whole machine is highly integrated and lightweight, with core components inside the handheld head:
- X-ray tube (core generating unit): vacuum glass/ceramic tube, including cathode filament, anode target (mainly tungsten target), and tube shell.
- High-frequency high-voltage generator: boosts low-voltage DC/AC to 60–70 kV, tube current 0.8–2 mA, providing acceleration electric field for X-ray tube, with small size, high efficiency and low ripple.
- Beam limiter (collimator): lead light-shielding cylinder, narrows X-ray beam into a small cone (only covering a single tooth/local area), reducing scattering and radiation.
- Control circuit + lithium battery: precisely controls exposure time (0.05–2 seconds), voltage and current; built-in rechargeable battery supports portable use without external power supply.
- Imaging receiving end: intraoral digital sensor (CCD/CMOS flat panel), IP plate (phosphor plate) or traditional film, placed on the other side of the tooth to receive X-rays after penetration.
- Protective shielding: lead layer inside the head to block leakage radiation.
1.2 Working Principle
The core principle of portable dental x ray machine: high-voltage accelerated electrons hit the anode target to generate X-rays. X-rays penetrate oral tissues and form light and dark contrast images due to density differences, which are received by digital sensors/films and converted into visible images.
2. Dental X-ray Films
Dental X-ray films are mainly image contrasts formed by tissue density differences when X-rays pass through the oral cavity. Tissues with different densities have different X-ray absorption/attenuation capabilities, forming "projection grayscale differences", for example:
- Enamel, dentin, alveolar bone and other high-density, high-atomic-number tissues strongly absorb X-rays, showing high-density white shadows on the image;
- Pulp cavity, periodontal ligament, caries, abscess, soft tissue and other low-density tissues allow more X-ray penetration and less attenuation, showing low-density black/gray shadows on the image;
- The remaining X-rays carry density information of teeth, bones and lesions, and project onto the imaging receiver.
3. Advantages of Portable Dental X-ray Machine
3.1 Portability and Convenience
The core advantage of portable dental x ray machine is light weight, portability and flexible movement, which can be quickly transferred between various diagnosis and treatment departments. It provides great convenience for patients with limited mobility, as well as special scenarios such as outdoor dental visits and temporary diagnosis and treatment.
Because it is not restricted by site conditions, has a wide range of applications and is easy to operate, portable dental x ray machine has been widely used soon. The original intention of developing portable dental x ray machine is to simplify the diagnosis and treatment process and provide more convenient and efficient oral examination services for patients.
3.2 Simple Installation and Low Investment Cost
portable dental x ray machine has low initial investment cost, no need for complex civil construction, special radiation-proof machine room and fixed line layout. It only needs to be equipped with equipment and flat panel detector, and can take films quickly after power-on, greatly saving high costs such as machine room decoration, protection renovation and fixed equipment procurement.
3.3 Low Radiation Dose, Safe and Controllable
At present, the radiation of portable dental x ray machine is usually low, meeting human radiation safety standards. ArKang's portable dental x ray machine provides stable dose rate images and low radiation exposure, with the lowest radiation leakage compared with similar products in the market, which can protect doctors and patients to the greatest extent.To learn about the features of different brands of dental X-ray machines, you can read this article ➡ "Top 10 Best Dental X-ray Machine Brands for 2026"
3.4 Efficient Operation and High Diagnosis and Treatment Efficiency
portable dental x ray machine supports one-button short-time exposure with efficient and rapid imaging. Equipped with intraoral sensor or IP plate, it can realize instant imaging and rapid diagnosis; the equipment can be operated independently by a single person, effectively saving labor costs, adapting to rapid screening scenarios, and significantly improving overall diagnosis and treatment efficiency.
3.5 Wide Application Range and Strong Practicability
portable dental x ray machine can take periapical films and local dental films, meeting basic diagnosis and treatment needs such as filling, root canal treatment, tooth extraction, and periodontal screening. It is also suitable for close-range filming of children, elderly with limited mobility and bedridden patients, making it an ideal equipment for small clinics, community clinics and rural free clinics to meet the rigid demand of oral imaging examination.
3.6 Small Size, Easy Storage and Simple Maintenance
portable dental x ray machine is small in size, light in weight, integrated in structure, occupies very little space, and is convenient for storage and transportation; at the same time, compared with wall-mounted dental X-ray machine, portable dental x ray machine has lower maintenance cost. For example, ArKang's portable dental x ray machine promises customers a 2.5-year warranty and a replacement if damaged.
3.7 Low Price
Compared with wall-mounted dental X-ray machine, portable dental x ray machine has obvious price advantages. The price of portable dental x ray machine on the market is usually between 2000 US dollars and 10000 US dollars, depending on factors such as image resolution, battery life and brand reputation.
For example, the price of Woodpecker's portable dental x ray machine is usually 8000 US dollars, while the price of ArKang's portable dental x ray machine is about 3000 to 4000 US dollars, and its cost performance is much higher than Woodpecker's dental X-ray machine.
To learn more about dental X-ray machine prices, you can read ArKang's article ➡" How much will dental X-ray machines cost in 2026? Price Guide"
4. Correct Usage of Portable Dental X-ray Machine
Since the early 20th century, how to protect medical staff and patients from the harmful effects of ionizing radiation in diagnostic imaging examinations has been a hot topic. At present, various safety agencies have reached a consensus that the radiation dose received by medical staff and patients should be reduced as much as possible, following the principles of ALARA (As Low As Reasonably Achievable), ALADA (As Low As Diagnostically Acceptable) and ALADAIP (As Low As Diagnostically Acceptable with Indication and Patient-specific).
A number of studies have been carried out to develop procedures to ensure operator safety and reduce or avoid radiation exposure. At present, these protective measures have been proven to effectively reduce the operator's radiation dose, including:
- Fully extend the arm when operating the portable equipment to keep a distance from the body;
- Use a backscatter shield on the cylinder;
- Use a longer cylinder;
- Wear a protective apron;
- Wear lead gloves;
- Use a rectangular collimator.
These precautions are particularly important when the operator is close to the radiation source and the patient. In addition, staff and the public should keep a distance of 2 meters from the patient and the radiation source, at an angle of 90° to 135° to the central X-ray beam, and avoid standing in the path of the central X-ray beam to ensure safety.
It is worth noting that only when the portable dental x ray machine is placed on a stand and operated in a protective area (such as 2 meters away or behind a barrier) can the operator be fully protected from secondary radiation like using a traditional X-ray machine. Therefore, manufacturers should strive to design stands for portable equipment so that operators can perform radiation irradiation at a safe distance.
5. Applicable Scenarios of Portable Dental X-ray Machine
5.1 Primary Oral Medical Institutions
portable dental x ray machine is almost a rigid demand for primary oral medical institutions, because primary medical institutions usually have narrow sites, no special radiology machine rooms, and no conditions for radiation-proof civil construction renovation; at the same time, portable dental x ray machine is small in size, requires no fixed installation, and has low investment cost, which can quickly meet the daily basic filming needs of caries, root canals and tooth extractions.
5.2 Home Visits, Home Medical Care, Rehabilitation Institutions
The core demand of such scenarios is flexible movement, which is difficult to meet by traditional fixed dental X-ray machines. The portable model is light and easy to carry, perfectly adapting to diverse diagnosis and treatment scenarios. For bedridden elderly, disabled and patients with limited mobility, it can realize rapid bedside filming, avoiding the trouble of traveling to and from medical treatment, and effectively solving the medical problems of special groups.
5.3 Nursing Homes, Health Care Centers, Nursing Homes
Most elderly people suffer from periodontal disease, apical inflammation, residual roots and bad teeth, and the risk of going out for medical treatment is high. portable dental x ray machine is flexible in movement and simple in operation, which can complete oral imaging screening on site in the hospital and improve elderly care medical supporting facilities.
5.4 Pet Hospitals / Veterinary Oral Diagnosis and Treatment
Most pet hospitals have limited space and are not suitable for placing large traditional dental X-ray machines. portable dental x ray machine is small in size and flexible in placement, which can meet various oral examination needs of cats and dogs, suitable for scenarios such as root fracture, oral abscess, dental calculus screening and preoperative evaluation of tooth extraction. The equipment is convenient to move, in line with the fragmented and multi-station operation characteristics of pet diagnosis and treatment, greatly improving clinical flexibility.
5.5 Military Camps, Construction Sites, Remote Mining Areas, Isolated and Closed Places
For military camps, construction sites, remote mining areas and other places with remote environments, limited medical resources and centralized and closed management of personnel, portable dental x ray machine is more suitable for daily dental filming to ensure on-site medical services.
6. Image Quality Comparison Between Portable Dental X-ray Machine and Wall-mounted Dental X-ray Machine
6.1 Wall-mounted Dental X-ray Machine
The design of wall-mounted dental X-ray machine originally originated from technical limitations, that is, a high-voltage cable connected to the so-called "scissor arm" is needed to connect the X-ray tube assembly with the high-voltage generator. This wall-mounted design allows positioning of the dental X-ray tube and has been the basis for teaching intraoral X-ray filming for decades. However, it has an obvious disadvantage: such equipment cannot be moved, which makes it very difficult or even impossible for patients with limited mobility, serious illness or disability to obtain dental X-ray images, often leading to insufficient diagnostic information and possibly wrong treatment decisions.
6.2 Image Quality Comparison
In a study by a German doctor of dental medicine, a handheld (HH) X-ray equipment (Nomad Pro 2) and a wall-mounted dental X-ray machine (Heliodent Plus) were compared to analyze the X-ray image quality between the two.
In this study, a maxillofacial model was used, and other variables such as digital sensors and the same examination conditions were controlled. The handheld dental X-ray machine (Nomad Pro 2) and wall-mounted dental X-ray machine (Heliodent Plus) were used to film all dental areas (anterior teeth, premolars, molars) respectively, and their image quality parameters were analyzed. The results are as follows:
- In terms of image quality of the maxilla (40.0%–33.3%; p > 0.05) and mandible (45.0%–31.7%; p > 0.05), Nomad Pro 2 was slightly better than WM Heliodent Plus, but the difference was not significant. After combining the image quality parameters of the maxilla and mandible, the p-value was also not significant, and Nomad Pro 2 was slightly better than WM Heliodent Plus (36.4%–27.9%; p > 0.05).
- Separate analysis of image quality parameters in each tooth area showed significant differences between Nomad Pro 2 and Heliodent Plus. Nomad Pro 2 was better than Heliodent Plus in image quality of maxillary anterior teeth (55%–15%, p = 0.005) and mandibular anterior teeth (30.0%–7.5%, p = 0.034). No significant difference in image quality parameters was found between Nomad Pro 2 and Heliodent Plus in the analysis of bitewing X-ray films (0%; p > 0.05).
In summary, the imaging quality of portable dental x ray machine is equivalent to that of wall-mounted dental X-ray machine, and it is easy to operate, with more practical application advantages in daily clinical diagnosis and treatment.

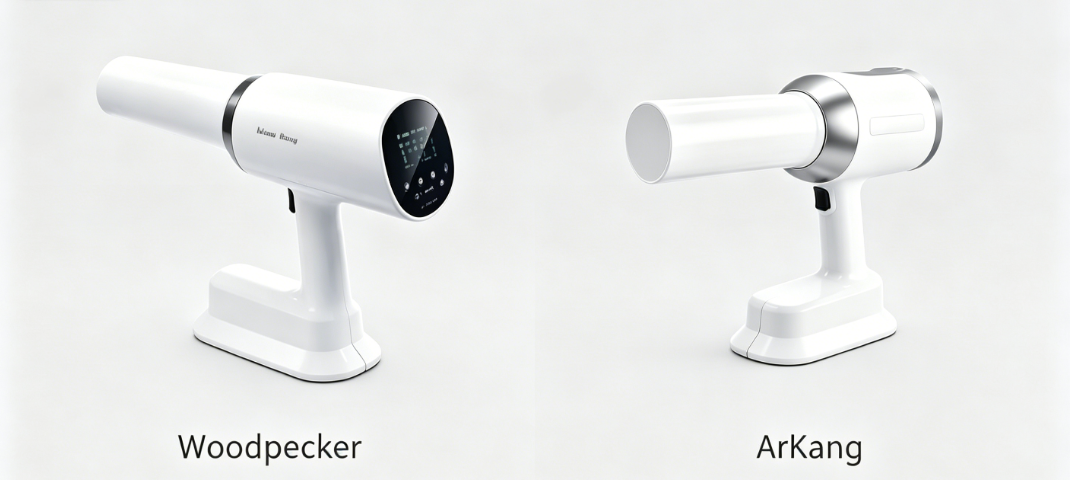

7. Comparison Between ArKang Dental X-ray Machine and Woodpecker Dental X-ray Machine
ArKang's portable dental x ray machine has the lowest radiation leakage compared with similar products in the market. ArKang's portable dental x ray machine adopts solid-state heat dissipation, and its service life is extended by one-third compared with standard dental X-ray machines, reaching 100,000 exposures. Compared with ArKang's portable dental x ray machine, Woodpecker's model is more likely to generate more soft radiation, which may lead to higher radiation doses for doctors and patients.
The only advantage of Woodpecker is that the tube is imported, so the image quality of Woodpecker's dental X-ray machine is slightly higher than that of ArKang's portable dental x ray machine. However, the market price of Woodpecker's portable dental x ray machine is 8000 US dollars, while the market price of ArKang's dental X-ray machine is 3000-4000 US dollars. In terms of price, radiation dose and service life, ArKang is more cost-effective.
8. Conclusion
portable dental x ray machine has the advantages of portability, simple installation, small size, efficient operation and wide application range, and its image quality is equivalent to that of wall-mounted dental X-ray machine. In terms of brands, compared with Woodpecker's portable dental x ray machine, ArKang has a more favorable price and lower radiation. If you want to buy a portable dental x ray machine, ArKang will be a good choice.
If you want to know more about ArKang dental X-ray machine promotions, please contact us:
Email：fataillll@fatal.com.cn
Whatsapp：+86 17728302681
9. FAQ
1. How safe is a dental portable X-ray machine?
The bottom line: It is possible that in some situations operator exposure could be greater from handheld dental x-ray units than from wall-mounted dental X-ray machine. If operated and maintained properly, however, handheld units should still keep operator exposure well below regulatory limits on occupational exposure.
2. How many dental X-rays can I get a year safe?
Most people get an average of 20 x-rays per year and are always safe, according to American Association of Pediatric Dentistry guidelines. But people who need extra x-rays (due to fillings, extractions, root canals, etc.) may get as many as 60 each year.
3. What are the advantages of using a handheld dental x-ray unit?
Handheld dental X-ray units offer significant advantages in mobility, workflow efficiency, and patient comfort compared to traditional wall-mounted dental X-ray machine. Their cordless, lightweight design allows them to be used in various settings that were previously difficult to reach with standard equipment.
4. How long does dental X-ray radiation stay in the body?
After a radiographic, fluoroscopic, CT, ultrasound, or MRI exam, no radiation remains in your body.
5. How much does a portable dental X-ray machine cost?
portable dental x ray machine on the market typically range in price from $2,000 to $10,000, depending on factors such as image resolution, battery life, and brand reputation.
6. Should I refuse dental X-rays?
Dental X-rays are essential for maintaining oral health, and refusing one can lead to several problems. Here are some reasons why you shouldn't miss a dental X-ray: X-rays can help dentists detect problems that are not visible during routine checkups, such as cavities, gum disease, and bone loss.
7. Is the radiation dose from a dental X-ray lower than that from eating a banana?
In everyday life, the radiation dose from a dental X-ray is almost the same as that from eating a banana. One dental X-ray (0.2 μSv) is equivalent to the radiation dose from eating two bananas. The radiation dose from a full mouth X-ray (3.9 μSv) is lower than that from a flight from California to New York (40 μSv).
References:
“Image quality of a portable X-ray device (Nomad Pro 2) compared to a wall-mounted device in intraoral radiography”
“Hand-held dental X-ray device: Attention to correct use”
